Blue Concentric Reducers

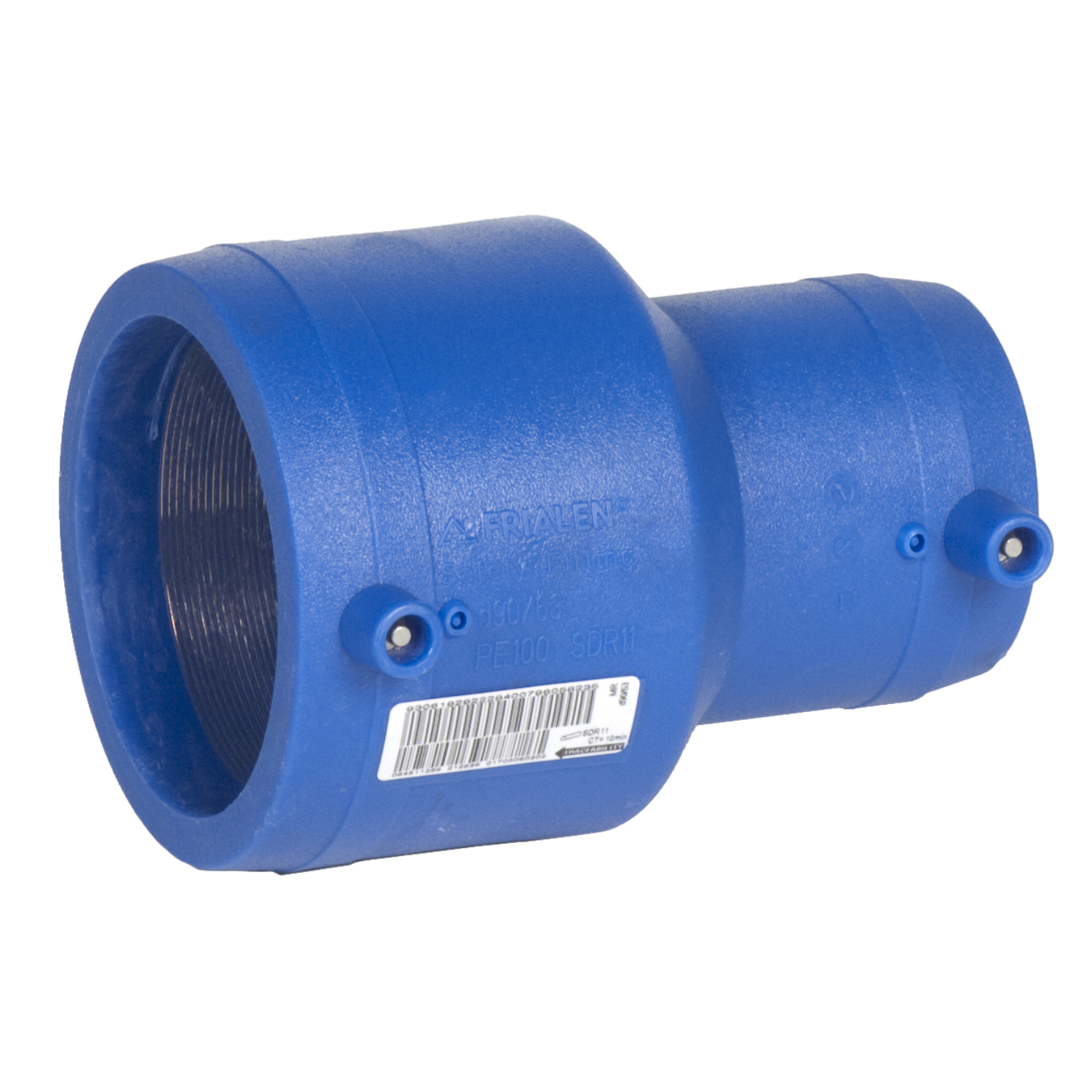

Blue Electrofusion Reducers / MR / PN16 / SDR11
Frialen PE100 RC Injection moulded electrofusion reducers are suitable for fusing pipes from SDR11 to SDR17.6 Electrofusion sockets feature all the same performance benefits found in blue couplers. All reducers are sealed in individual plastic bags for protection on site.
NOTE: The pipe and socket ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

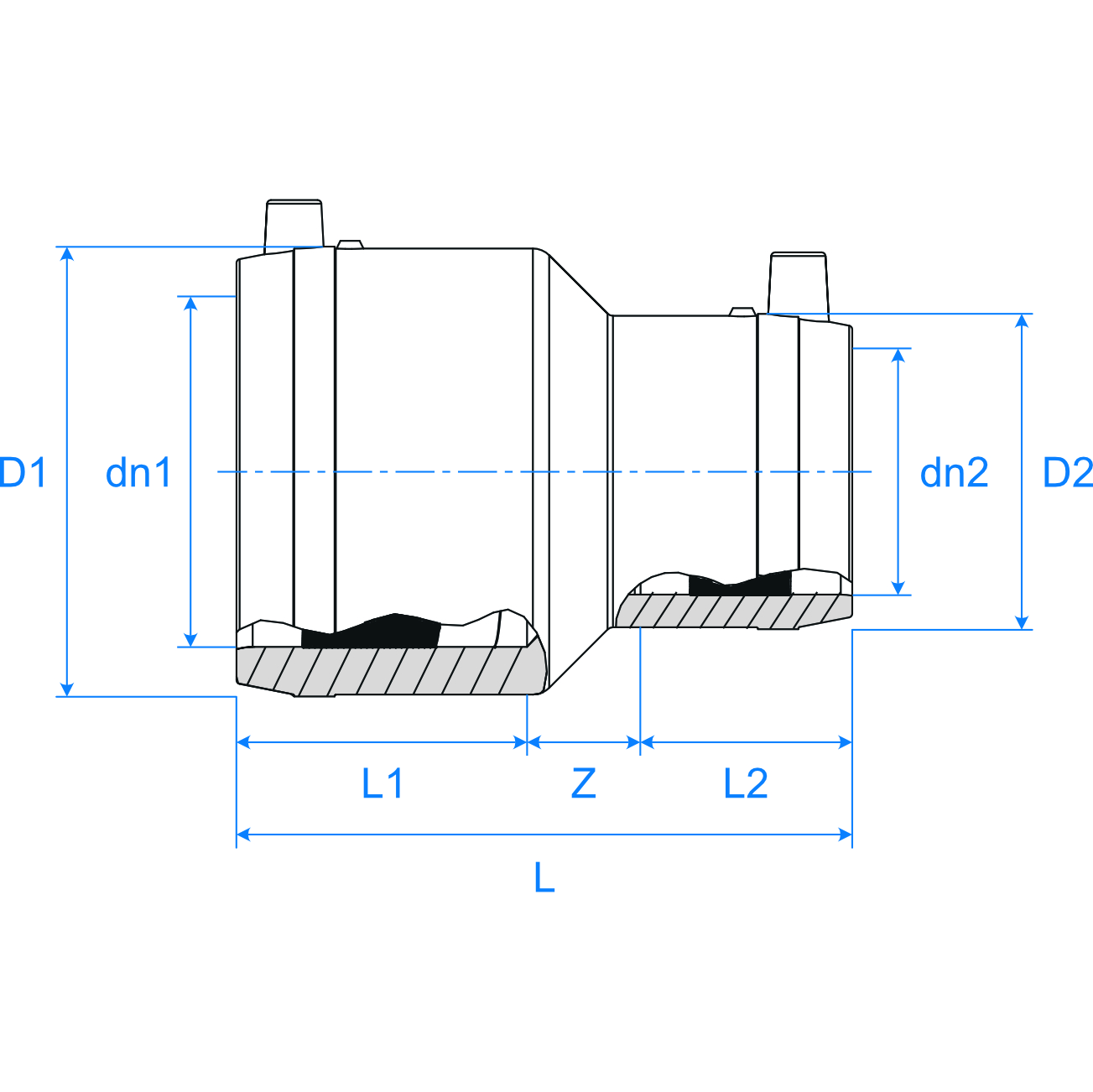

| For sizes > dn63, use a spigot reducer from the table below and blue couplers. | |||||||||
| Product Code | dn1 | dn2 | D1 | D2 | L | L1 | L2 | Z | Availability in Hong Kong |
| P3326.14.050032 | 50 | 32 | 68 | 45 | 110 | 49 | 39 | 22 | Ex-Stock |
| P3326.14.063032 | 63 | 32 | 82 | 45 | 125 | 55 | 44 | 26 | Ex-Stock |
| P3326.14.063050 | 63 | 50 | 82 | 68 | 125 | 55 | 48 | 22 | Ex-Stock |
| P3326.14.090063 | 90 | 63 | 117 | 82 | 160 | 69 | 55 | 36 | Ex-Stock |

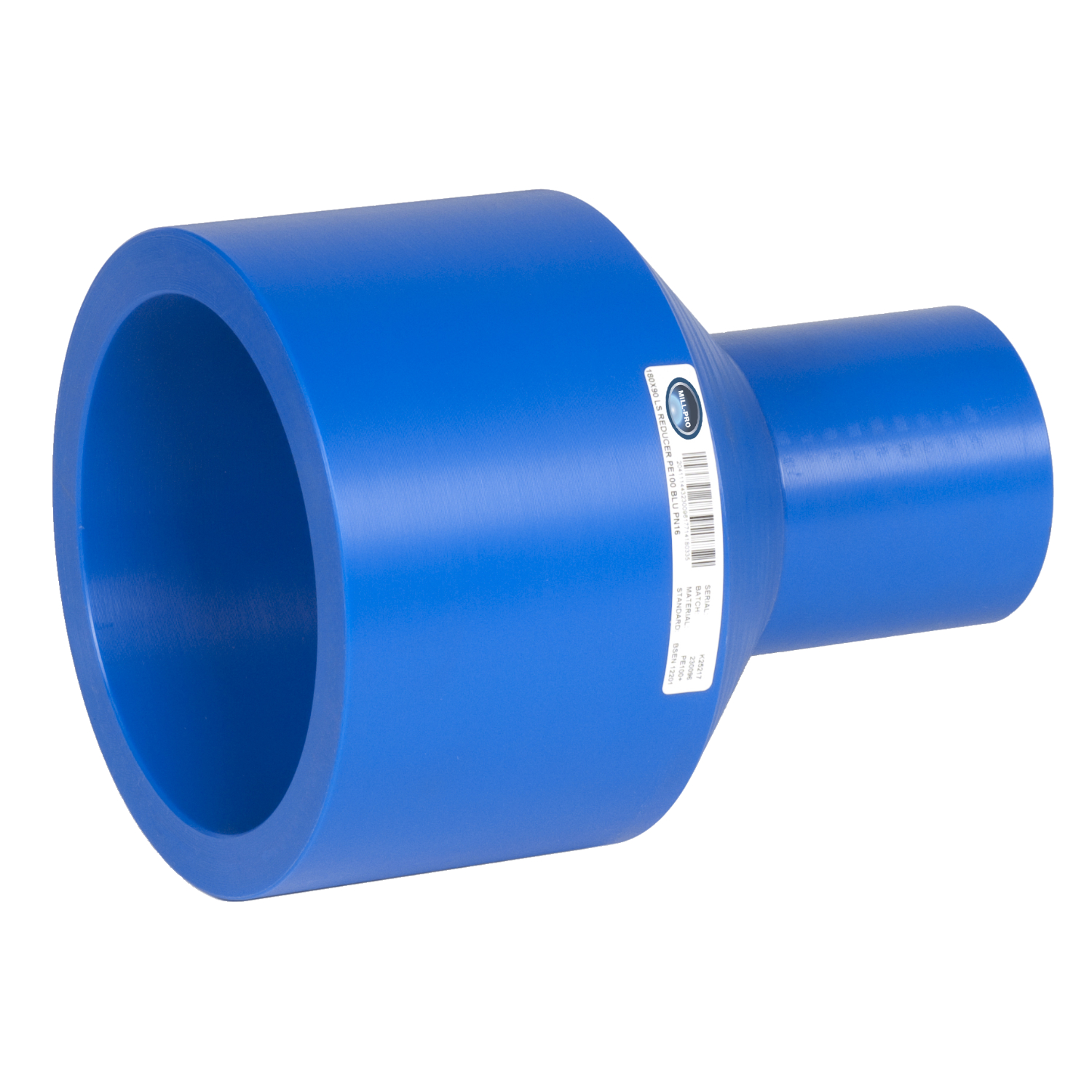

Blue Spigot Reducers / PN16 / SDR11
Mill-Pro PE100 RC blue long spigot reducers are generally injection moulded in PE100 RC, however, for small quantities they may be fabricated from blue hollow PE100+ bar. All reducers feature long spigots for electrofusion or butt fusion joining. Standard sizes are shown below, however, fabricated Blue reducers can be manufactured in any size and this allows for significant reductions to be made in any size up to dn1000 in SDR11. 1D and 2D bar code stickers for complete product traceability and are sealed in individual plastic bags for protection on site.
NOTE: The pipe and spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.
Listed below are standard reductions, however, we manufacture reductions in any combination of dn1 & dn2.
| For large step sizes and special one-off blue reducers not listed here, contact us. | ||||||
| For sizes > dn315 use black fabricated reducers. | ||||||

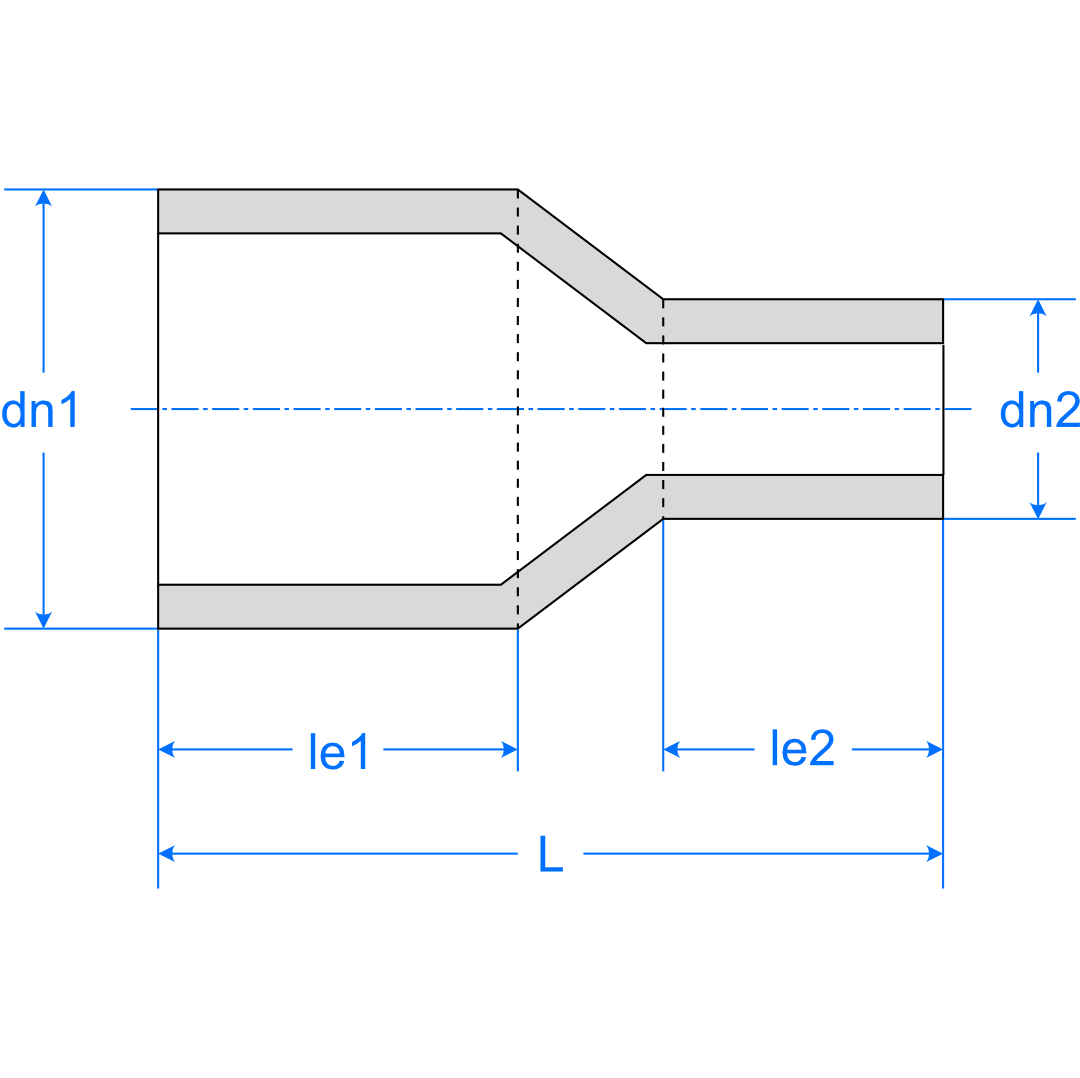

| Product Code | dn1 | dn2 | le1 | le2 | L | Availability in Hong Kong |
| P5826.14.090050 | 90 | 50 | 79 | 65 | 175 | 6-8 Weeks |
| P5826.14.125063 | 125 | 63 | 100 | 70 | 208 | Ex-Stock |
| P5826.14.125090 | 125 | 90 | 100 | 90 | 211 | Ex-Stock |
| P5826.14.180063 | 180 | 63 | 110 | 70 | 235 | 6-8 Weeks |
| P5826.14.180090 | 180 | 90 | 110 | 90 | 243 | Ex-Stock |
| P5826.14.180125 | 180 | 125 | 110 | 100 | 243 | Ex-Stock |
| P5826.14.250125 | 250 | 125 | 135 | 100 | 310 | 6-8 Weeks |
| P5826.14.250180 | 250 | 180 | 135 | 110 | 287 | 6-8 Weeks |
| P5826.14.315180 | 315 | 180 | 160 | 110 | 338 | 6-8 Weeks |
| P5826.14.315250 | 315 | 250 | 160 | 135 | 327 | 6-8 Weeks |
