Blue Couplers / EF / PN16 / SDR11

Blue Couplers / MB / PN16 / SDR11

Friatec's Frialen PE100 RC MB Injection moulded couplers are suitable for fusing pipes from SDR11 to SDR17.6  MB couplers feature large insertion depth for pipe stability during fusion (no holding clamps required) and extra wide fusion and cold zones for maximum melt containment. Exposed heating coils for direct heat transmission to the pipe and a small annular gap to ensure optimum joining pressure in the fusion zone.  A visual pop up fusion indicator confirms weld pressure and traceability bar codes are included for recording batch GIS and BIM records for each coupler installed.  All couplers are sealed in individual plastic bags for protection on site.

NOTE: The pipe or spigot ends and the coupler must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Frialen Blue MB Electrofusion couplers are made in Germany.

Friatec Datasheet 120 Friatec Drawings 120 Friatec Instructions 120

Product Code

dn

D

L

L1

L2

Z

Availibility in Hong Kong

P3326.150.032

32

45

78

38

21

2

Ex-Stock

P3326.150.050

50

68

98

48

27

2

Ex-Stock

P3326.150.063

63

82

110

55

29

2

Ex-Stock

P3326.150.090

90

114

157

77

51

3

Ex-Stock

P3326.150.125

125

156

172

85

51

3

Ex-Stock

Blue Couplers / UB / PN16 / SDR11

Friatec's Frialen PE100 RC UB11 Injection moulded blue couplers are suitable for fusing pipes from SDR11 to SDR17.6  UB couplers feature large insertion depth for pipe stability during fusion (no holding clamps required) and extra wide fusion and cold zones for maximum melt containment. Exposed heating coils for direct heat transmission to the pipe and a small annular gap to ensure optimum joining pressure in the fusion zone.

UB11 blue coupler sizes dn ≥ 250 include a barcode PREHEAT function to warm the pipe and coupler to help re-round oval pipes and close the fusion gap prior to welding to meet HK WSD requirements.

A visual pop up fusion indicator confirms weld pressure and traceability bar codes are included for recording batch GIS and BIM records for each coupler installed.  All couplers are sealed in individual plastic bags for protection on site.

NOTE: The pipe or spigot ends and the coupler must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit for logging the full range of weld data available.

Frialen Blue UB11 Electrofusion couplers are made in Germany.

Friatec Datasheet 120 Friatec Drawings 120 Friatec Instructions 120

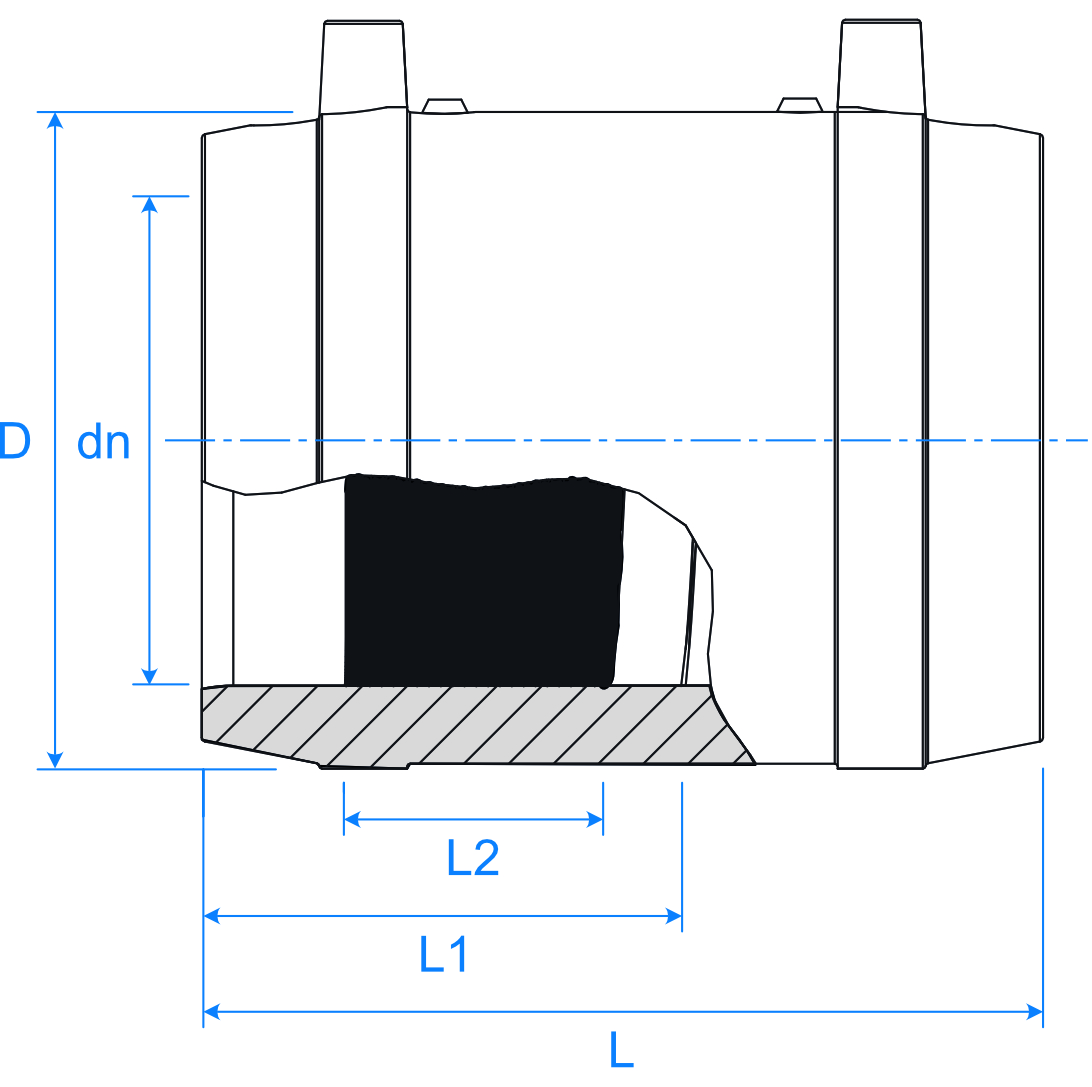

Product Code

dn

D

L

L1

L2

Availibility in Hong Kong

P3326.100.180

180

220

210

105

63

Ex-Stock

P3326.100.250

250

315

246

123

68

Ex-Stock

P3326.098.315

315

390

300

150

78

Ex-Stock

Note

1. For couplers in sizes DN/OD 355 and greater, use black UB coupler.
2. Blue couplers may be available in special sizes greater than DN/OD 315 for large order quantities, please contact us.
