CCTV Inspection Hatch

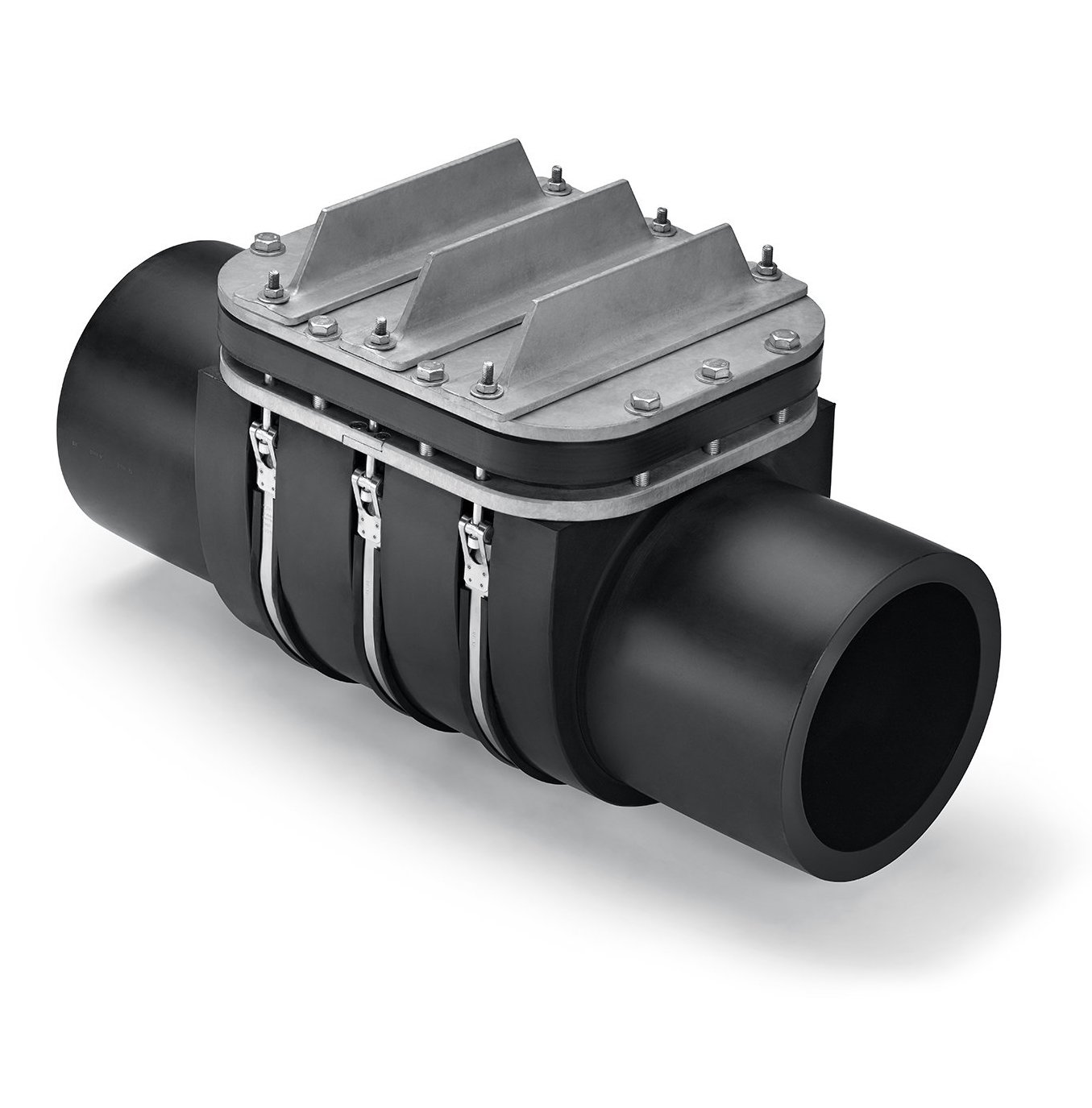

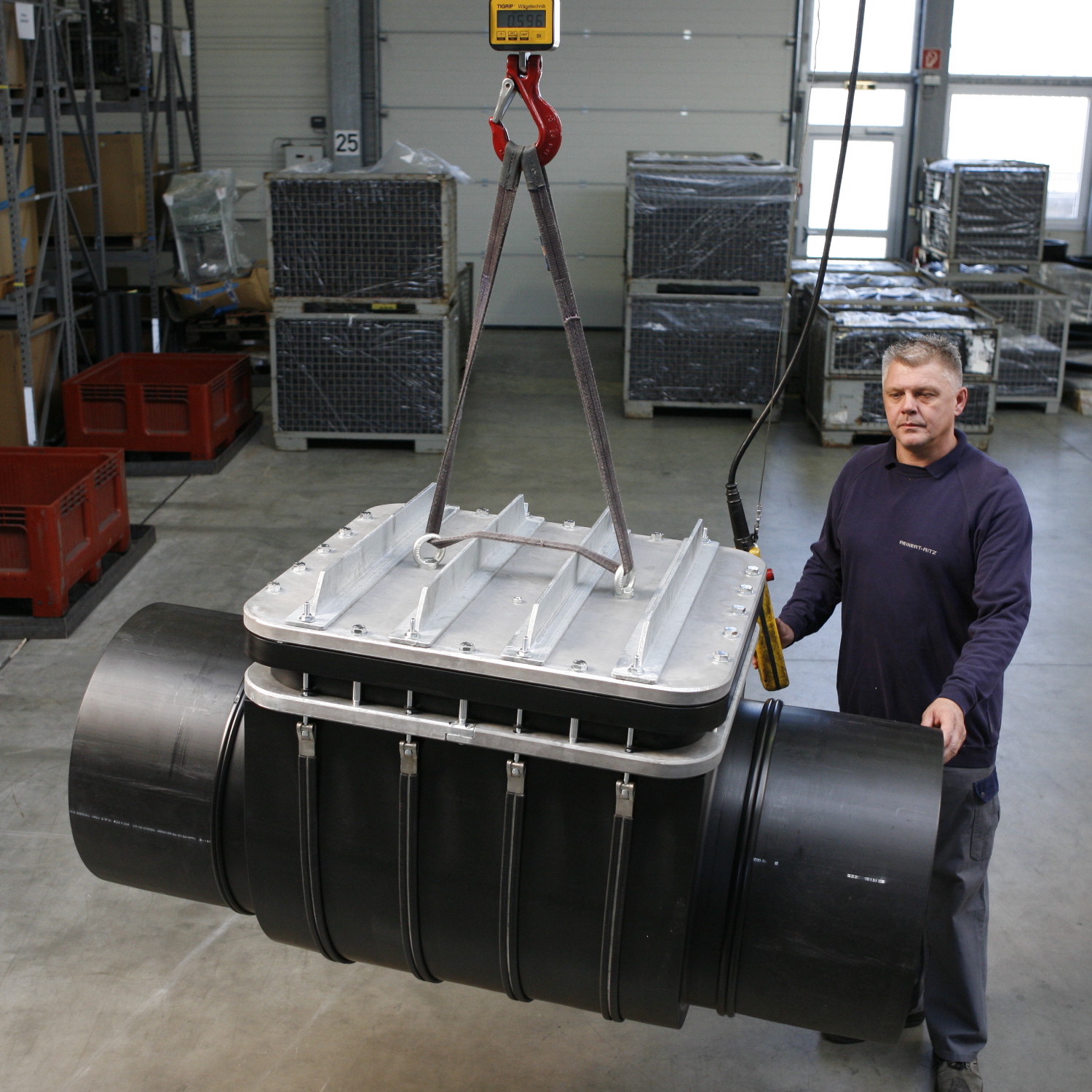

CCTV & Pigging Inspection Hatch

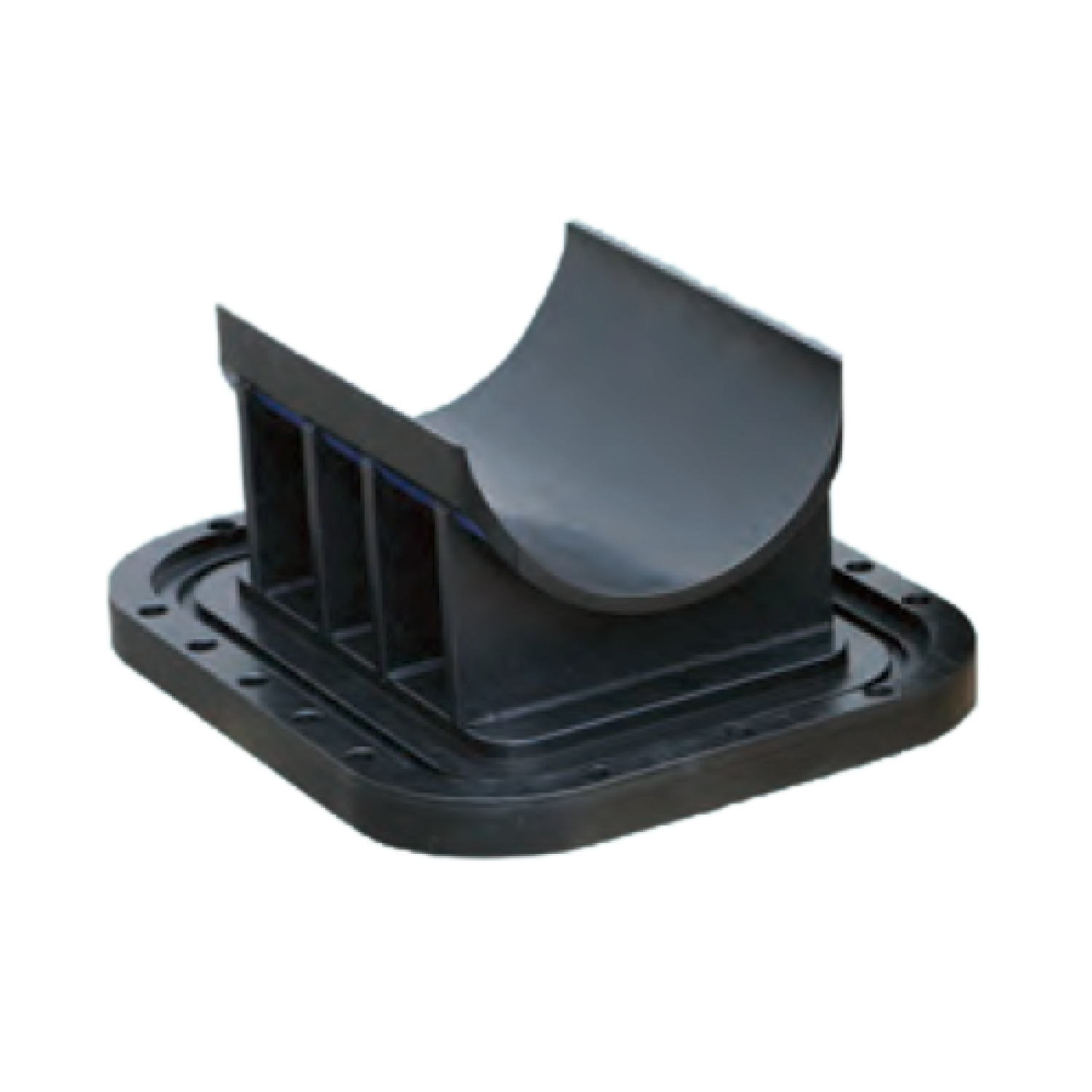

Fully Pressure rated for PN4, PN10 or PN16, the main body of the PE100+ inspection hatch is machined from extruded hollow bar. The inspection openings are available in both rectangular or round shapes. The cover plates of the inspection openings have a pig-friendly shape on the inside so the pig does not jam in the hatch during cleaning - see image below.

For Circular inspection Hatch option click here

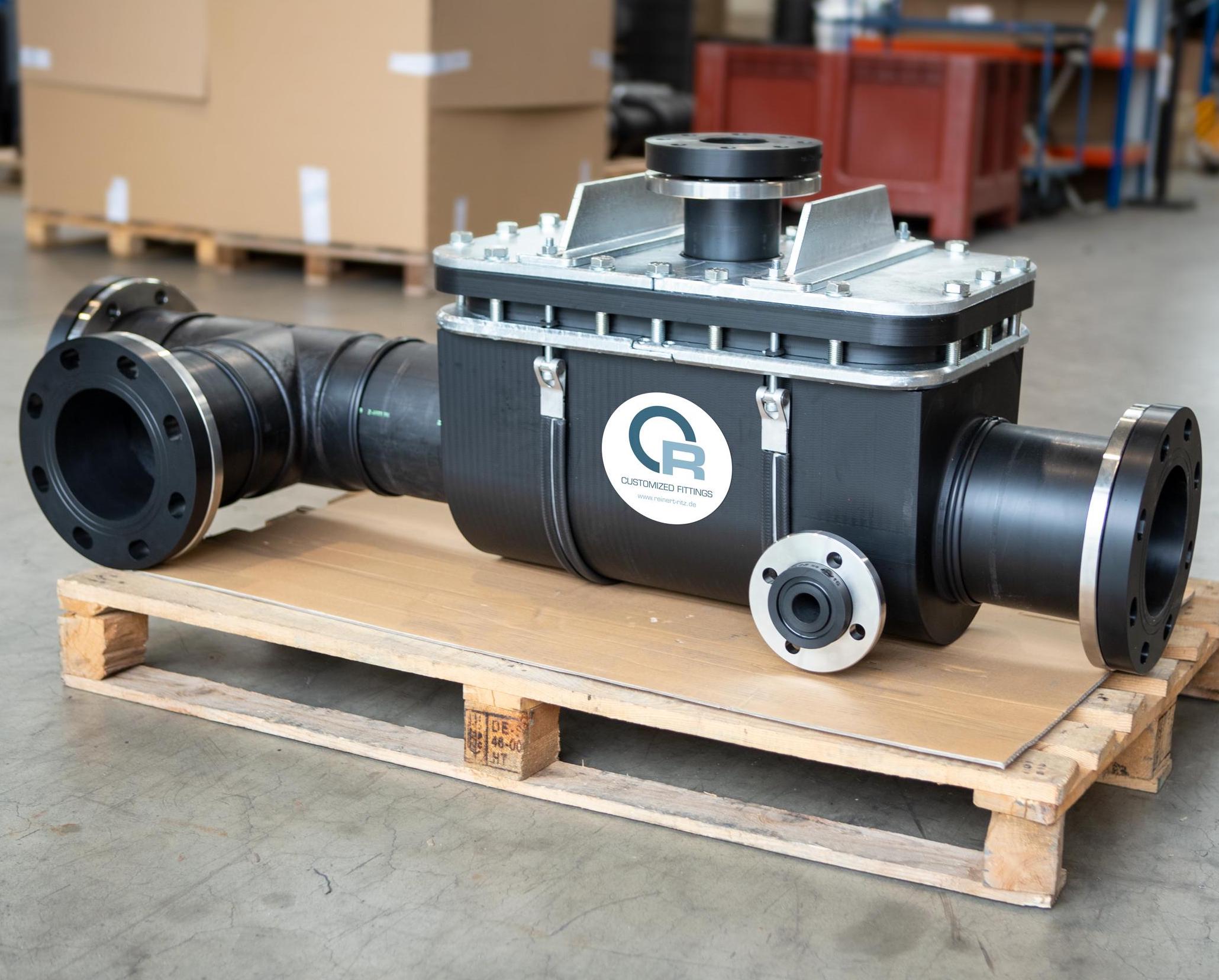

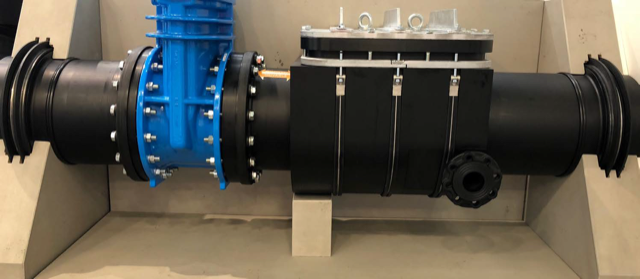

Optional flanged end with integrated dismantling joint to allow disassembly of an isolation valve

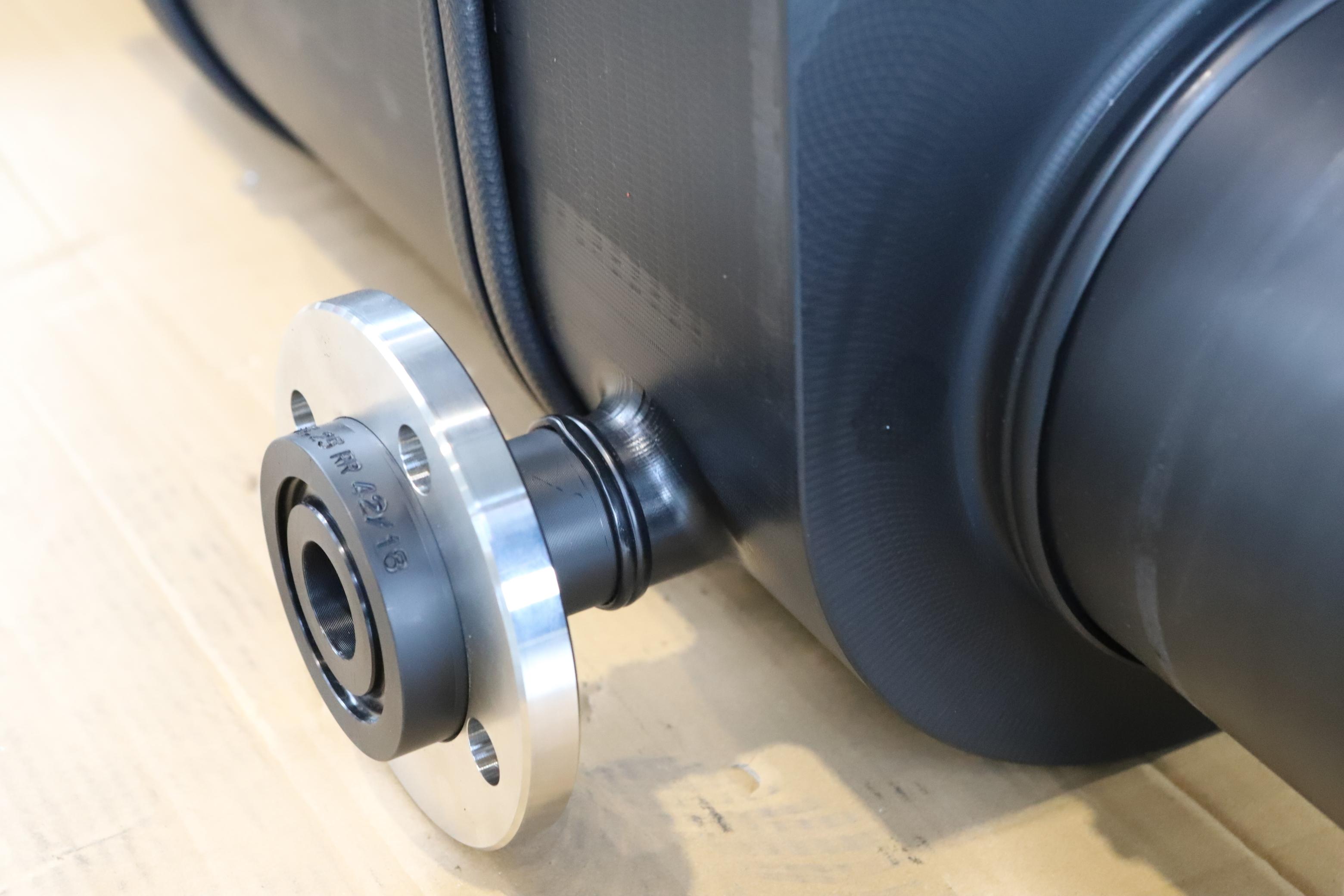

Optional flanged scour / drain outlet integrated into the hatch body with a duck foot bend for draining the hatch or pipeline before access - see images below.

CCTV Hatch Brochure (Rectangular)

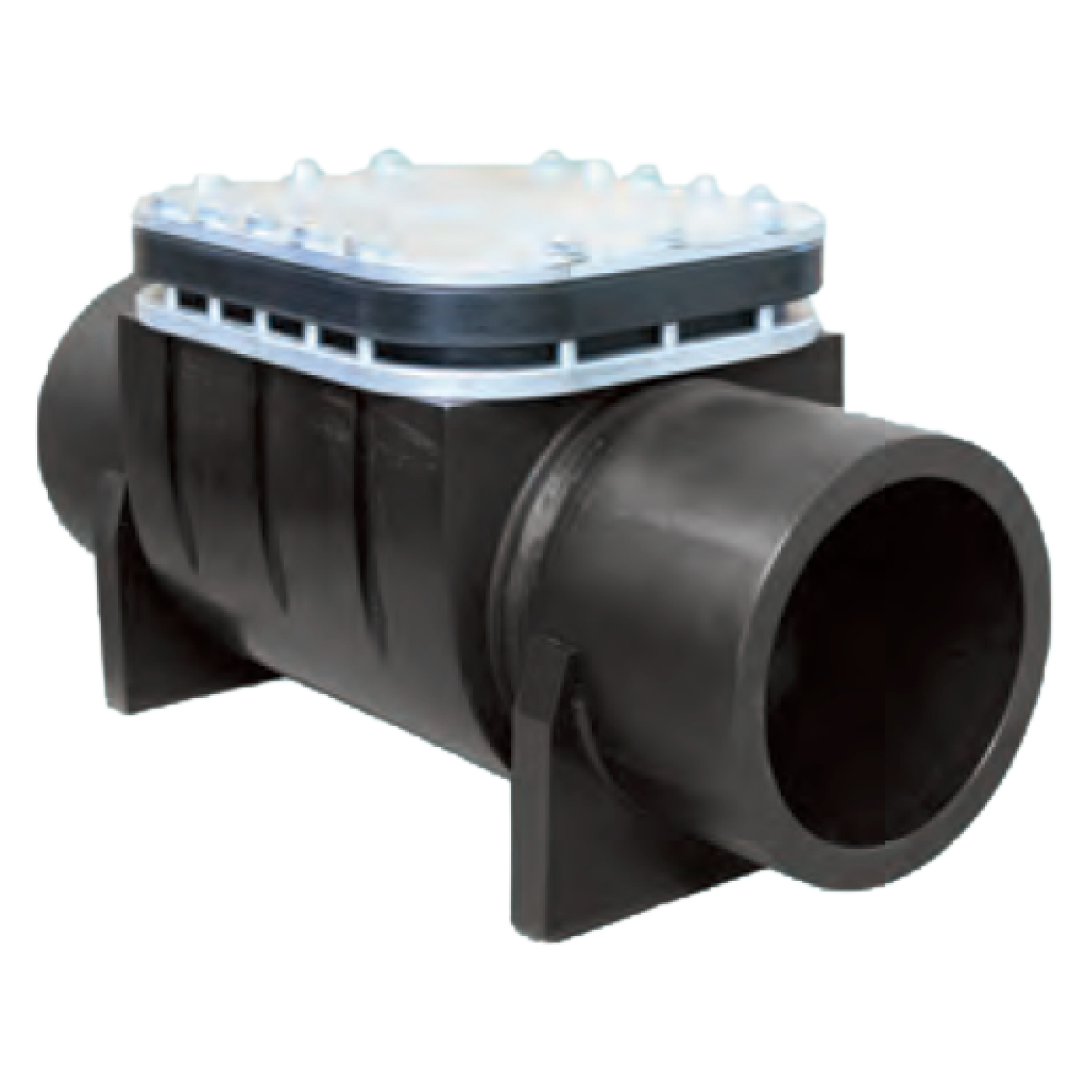

PE100 SDR 17 ends PN 4 Rated CCTV inspection Hatch

PE100+ machined from Hollow bar with Galvanised Steel external reinforcement (not exposed to the media)

Designed for use on a PN10 SDR17 pipeline with maximum operating pressure of 4Bar and Maximum instantaneous surge pressure of 10Bar.
Larger and smaller sizes can be manufactured to order, contact us for dimensions.

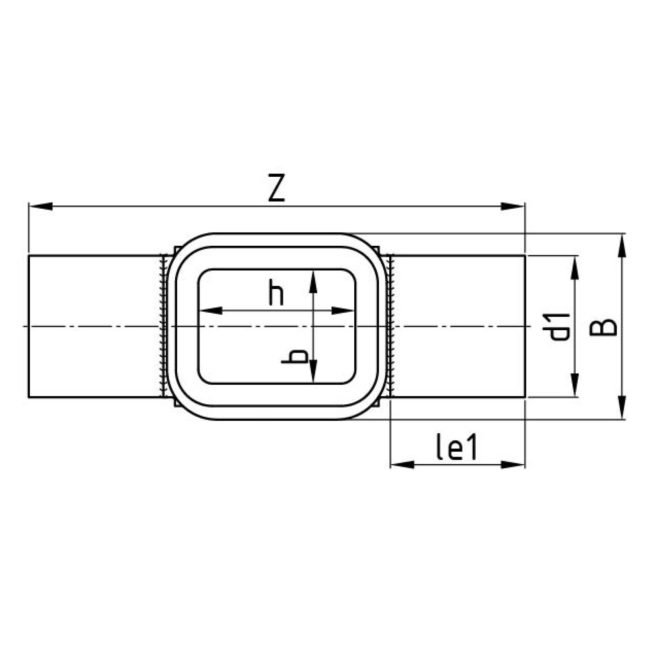

d1 / dn le1 b h B Z kg
250 250 200 350 415 1096 89
315 250 250 350 415 1096 89
355 200 280 400 467 1180 170
400 300 320 498 600 1270 224
450 300 360 498 600 1270 223
500 300 400 498 693 1650 359
560 300 450 498 693 1650 367
630 300 550 660 845 1650 596



PE100 SDR 11/17 ends PN 10/16 Rated CCTV inspection Hatch

PE100+ machined from Hollow bar with Galvanised Steel external reinforcement (not exposed to the media)

Designed for use on a PN16 SDR11 pipeline with maximum operating pressure of 16Bar and Maximum instantaneous surge pressure 36Bar.
Larger and smaller sizes can be manufactured to order, contact us for dimensions.
d1 / dn le1 b h B Z kg
250 250 200 350 415 1096 101
315 250 250 350 415 1096 100
355 200 280 400 467 1180 185
400 300 320 498 600 1270 242
450 300 360 498 600 1270 241
500 300 400 498 693 1650 380
560 300 450 498 693 1650 388
630 300 550 660 845 1650 596
