Blue 45º Bends

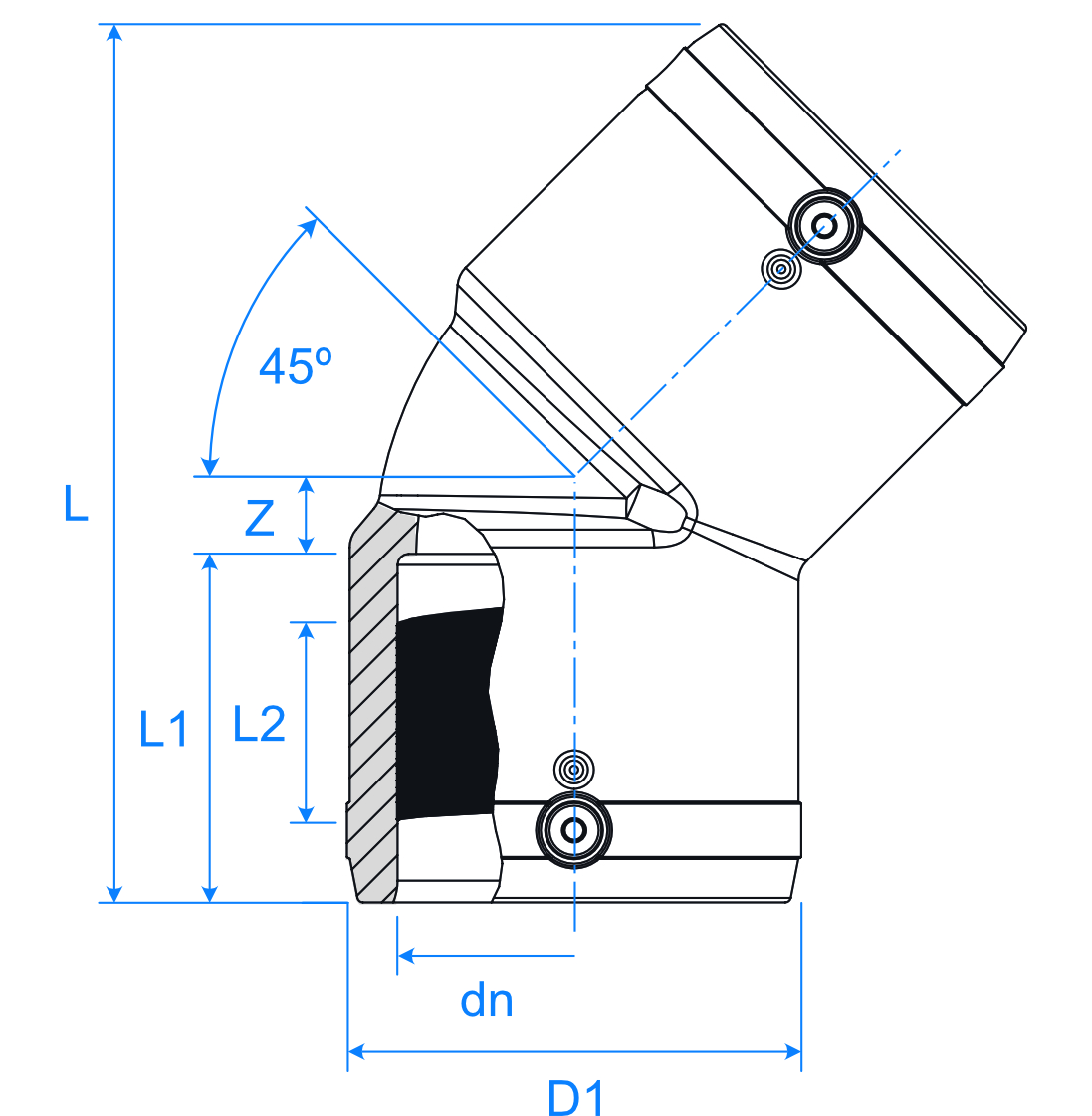

Blue 45º Injection Moulded Electrofusion Elbows / PN16 / SDR11

Friatec's PE100 RC Injection moulded electrofusion elbows are suitable for fusing pipes from SDR11 to SDR17.6  Electrofusion sockets feature all the same performance benefits found in blue couplers along with built-in reinforcement, so no de-ration is required.

NOTE: The pipe ends and sockets must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Frialen Blue Electrofusion elbows are made in Germany.

Product Code

dn

D1

L

L1

L2

Z

Availability in Hong Kong

P3326.119.032

32

43

102

44

21

8

Ex-Stock

P3326.119.050

50

66

136

54

32

13

Ex-Stock

P3326.119.063

63

82

158

62

34

14

Ex-Stock

P3326.119.090

90

115

232

79

45

35

Ex-Stock

P3326.119.125

125

157

279

87

44

46

Ex-Stock

P3326.119.180

180

228

382

97

65

83

Ex-Stock

Note: For larger sizes, use spigot elbow or bend from the tables below and blue couplers to join.

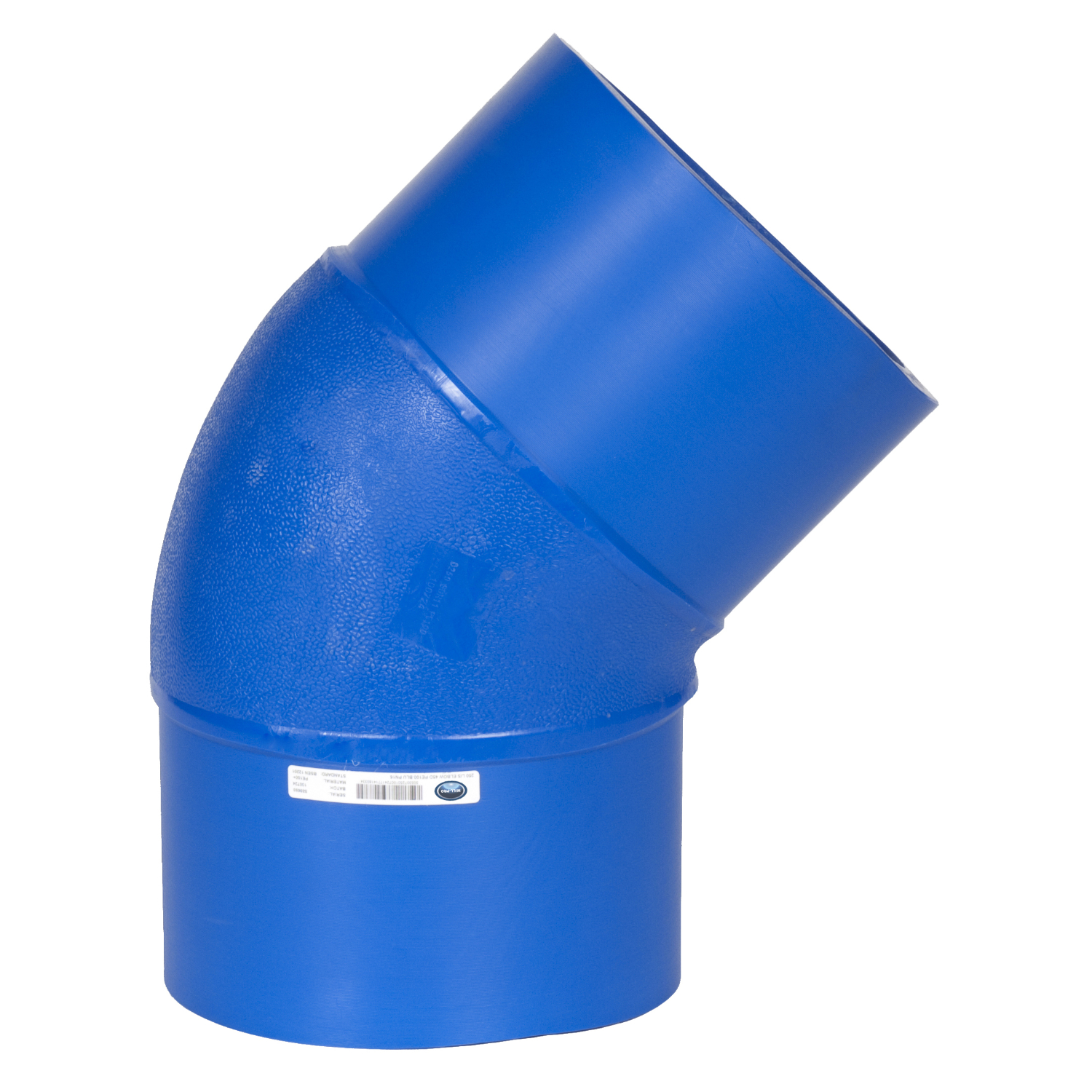

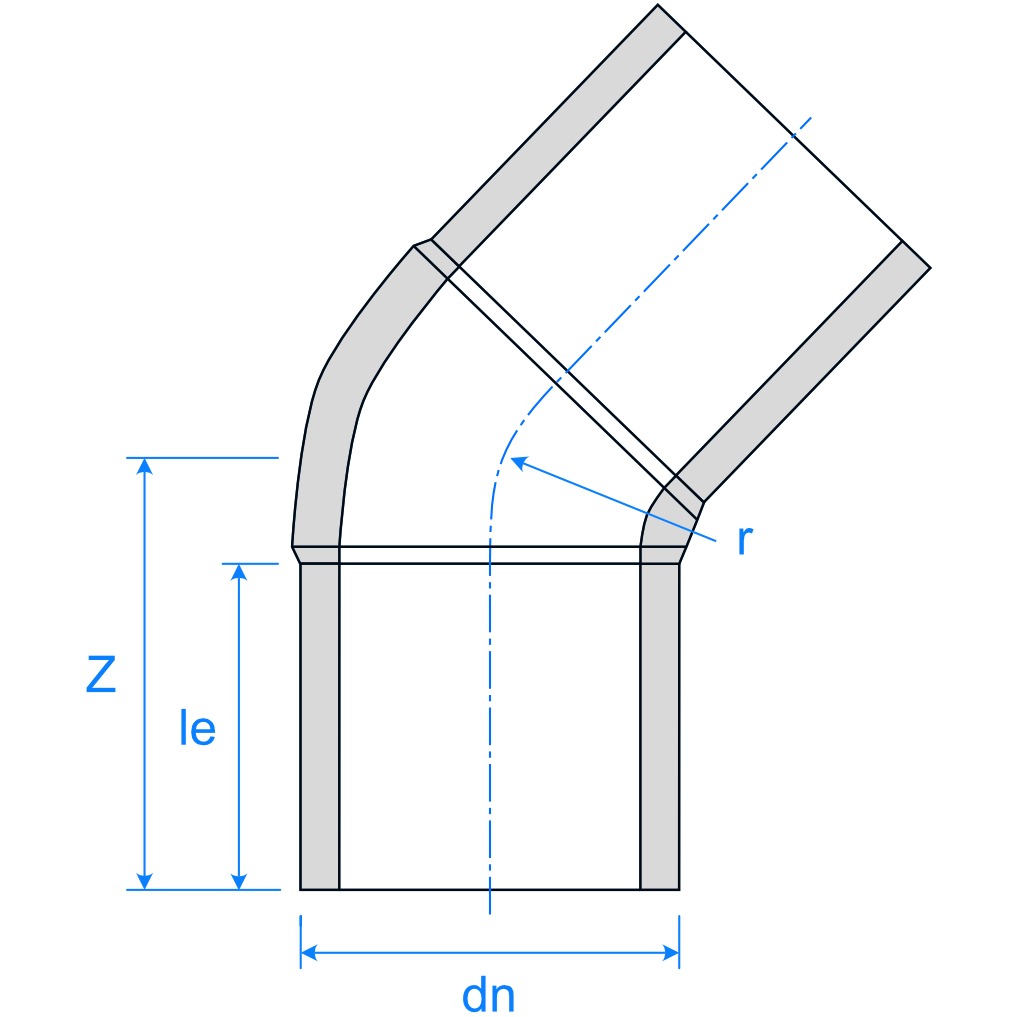

Blue 45º Injection Moulded Spigot Elbows / PN16 / SDR11

Mill-Pro PE100 RC Injection moulded spigot elbows are manufactured using Mill-Pro's own tooling under our continuous inspection. They feature long spigots for electrofusion joining and built-in reinforcement that exceeds the type testing requirements of BS EN 12201-2 and ISO 4427-3.  Mill-Pro fittings feature hard moulded brand, batch numbers for compliance checking and 1D and 2D bar code stickers for complete product traceability. All elbows are sealed in individual plastic bags for protection on site. Spigot fittings are joined by Electrofusion Couplers or Butt Fusion.

NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

Product Code

dn

le

r

Z

Availability in Hong Kong

P5826.119.250

250

132

125

158

Ex-Stock

P5826.119.315

315

152

158

198

Ex-Stock

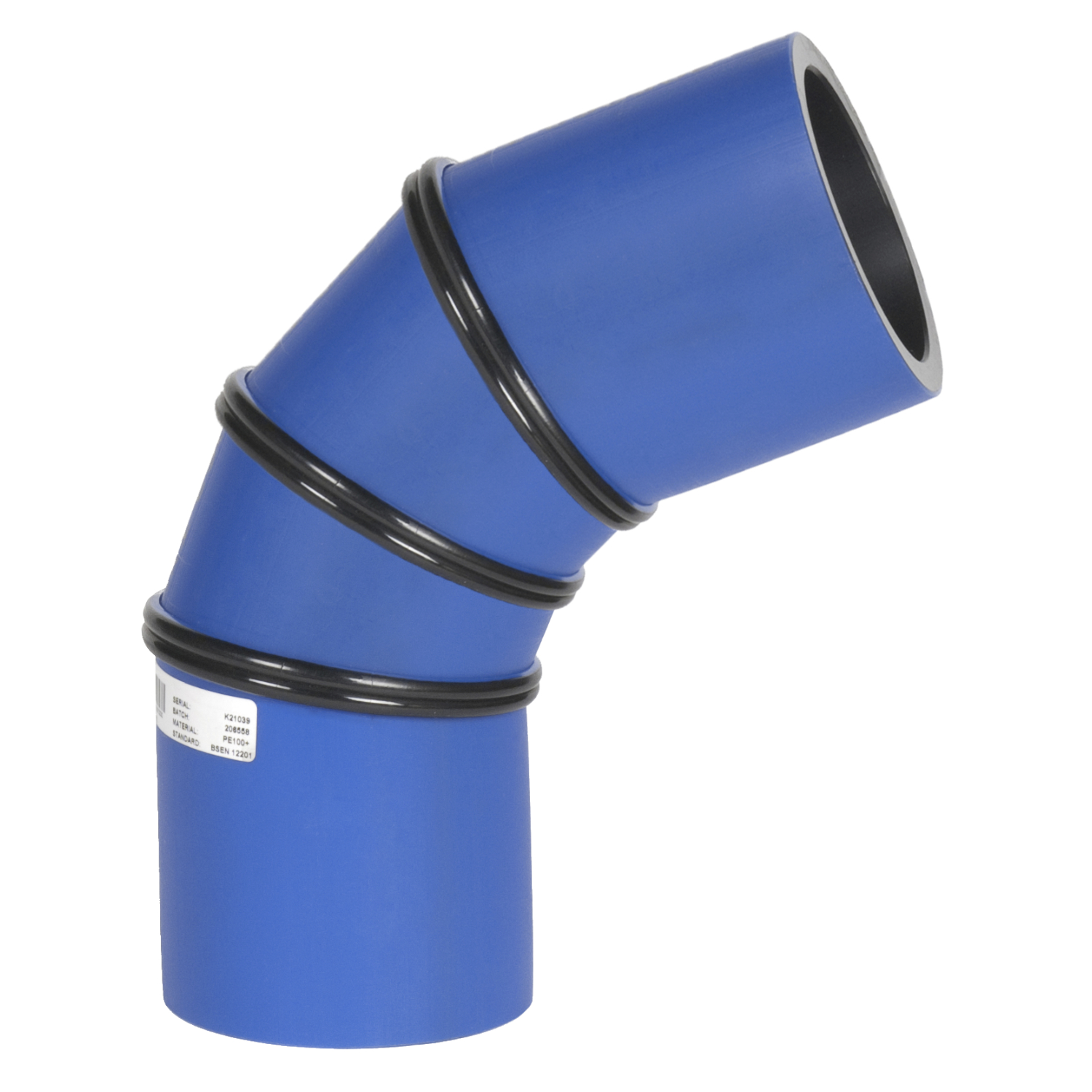

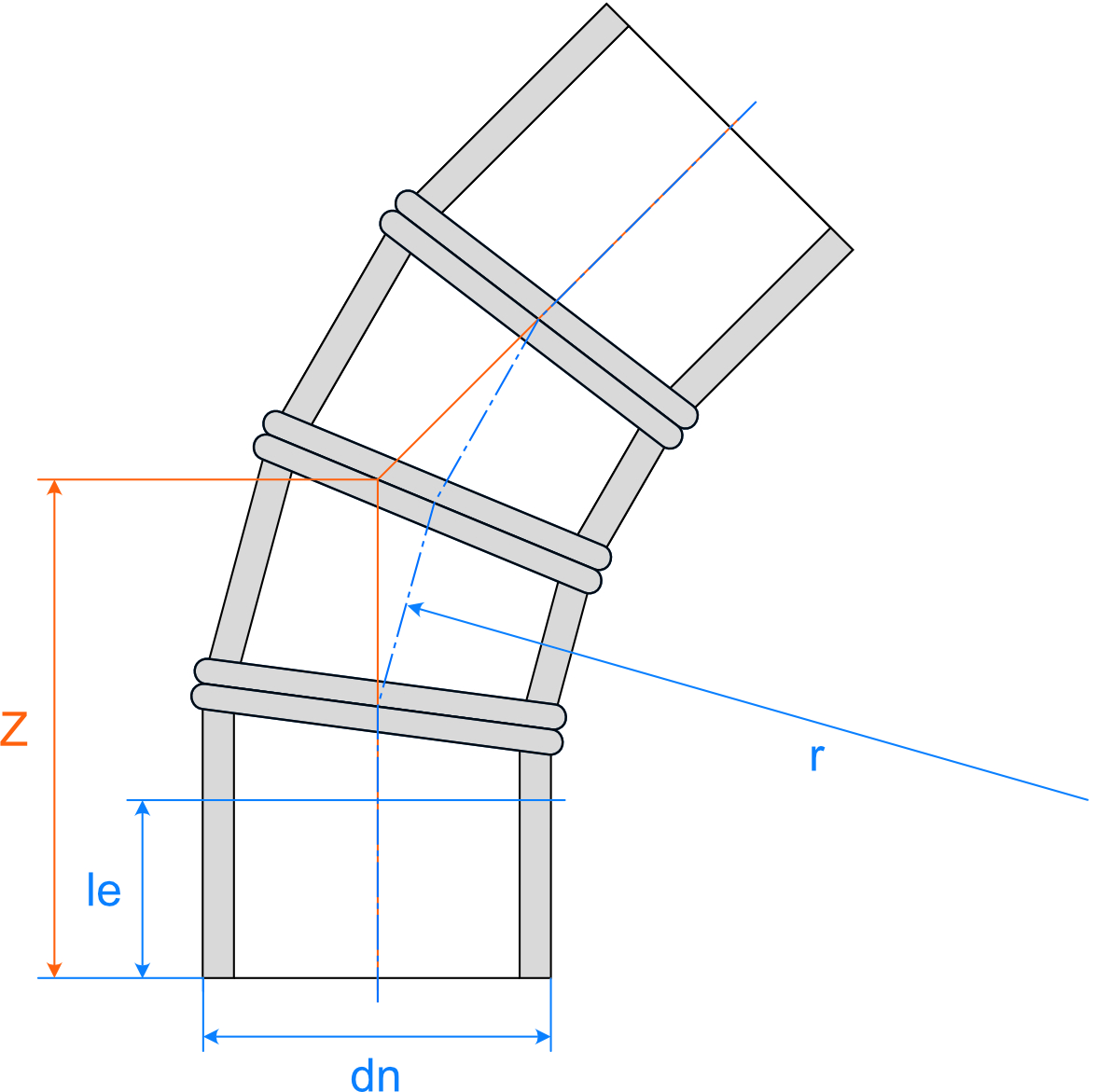

Blue / Purple 45º Segmented Spigot Bends / PN16 / SDR11

Segmented three mitre spigot bends are manufactured from Mill-Pro M10 PE100 RC SDR11 blue or purple pipe and fabricated according to BS EN 12201-3, clause B.3, using butt weld techniques according to BS ISO 21307. They feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability. All bends are sealed in individual plastic bags for protection on site.

Segmented bends are manufactured from a pipe, with cut angles ≤ 7.5º and therefore are not subject to pressure de-ration factor required in BS EN 12201 Clause B.3. Generally, the internal weld beads are removed where possible and external weld beads are not removed unless ordered otherwise.

Any bend angle from 31º to 45º can be custom manufactured, standard angle for a three mitre bend is 45º with a radius of 2.5 x OD.

NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

Product Code

dn

le

r = 2.5 dn

Z – 45º

Three mitre

Availability in Hong Kong

P5K26.287.355

355

300

888

668

4-6 Weeks

P5K26.287.450

450

300

1125

766

8-12 Weeks

P5K26.287.500

500

350

1250

868

8-12 Weeks

P5K26.287.560

560

350

1400

930

8-12 Weeks

P5K26.287.630

630

350

1575

1002

8-12 Weeks

P5K26.287.710

710

350

1775

1085

8-12 Weeks

P5K26.287.800

800

350

2000

1178

8-12 Weeks

Note: Fabricated bends are made from pipe, so sizes up to dn1000 in PN16/SDR11 rating are available in blue or purple colour.

Blue / Purple 45º Segmented Spigot Bends / PN10 / SDR17

As above for PN16 bends, however, bends are manufactured from Mill-Pro M10E PE100 RC SDR17 blue or purple pipe. hence rated for PN10.

Product Code

dn

le

r = 2.5 dn

Z – 45º

Three mitre

Availability in Hong Kong

P5K24.285.355

355

300

888

473

8-12 Weeks

P5K24.285.450

450

300

1125

519

8-12 Weeks

P5K24.285.500

500

350

1250

593

8-12 Weeks

P5K24.285.560

560

350

1400

622

8-12 Weeks

P5K24.285.630

630

350

1575

656

8-12 Weeks

P5K24.285.710

710

350

1775

695

8-12 Weeks

P5K24.285.800

800

350

2000

739

8-12 Weeks

P5K24.285.900

900

400

2250

837

8-12 Weeks

P5K24.285.1000

1000

400

2500

886

8-12 Weeks

P5K24.285.1200

1200

400

3000

983

8-12 Weeks

Note:

1. Fully complies with WSD PS, however only where the engineer allows the use of PN10 fittings.

2. Sizes ≤ dn1600 and <dn355 available on request.
