Blue 11º Bends

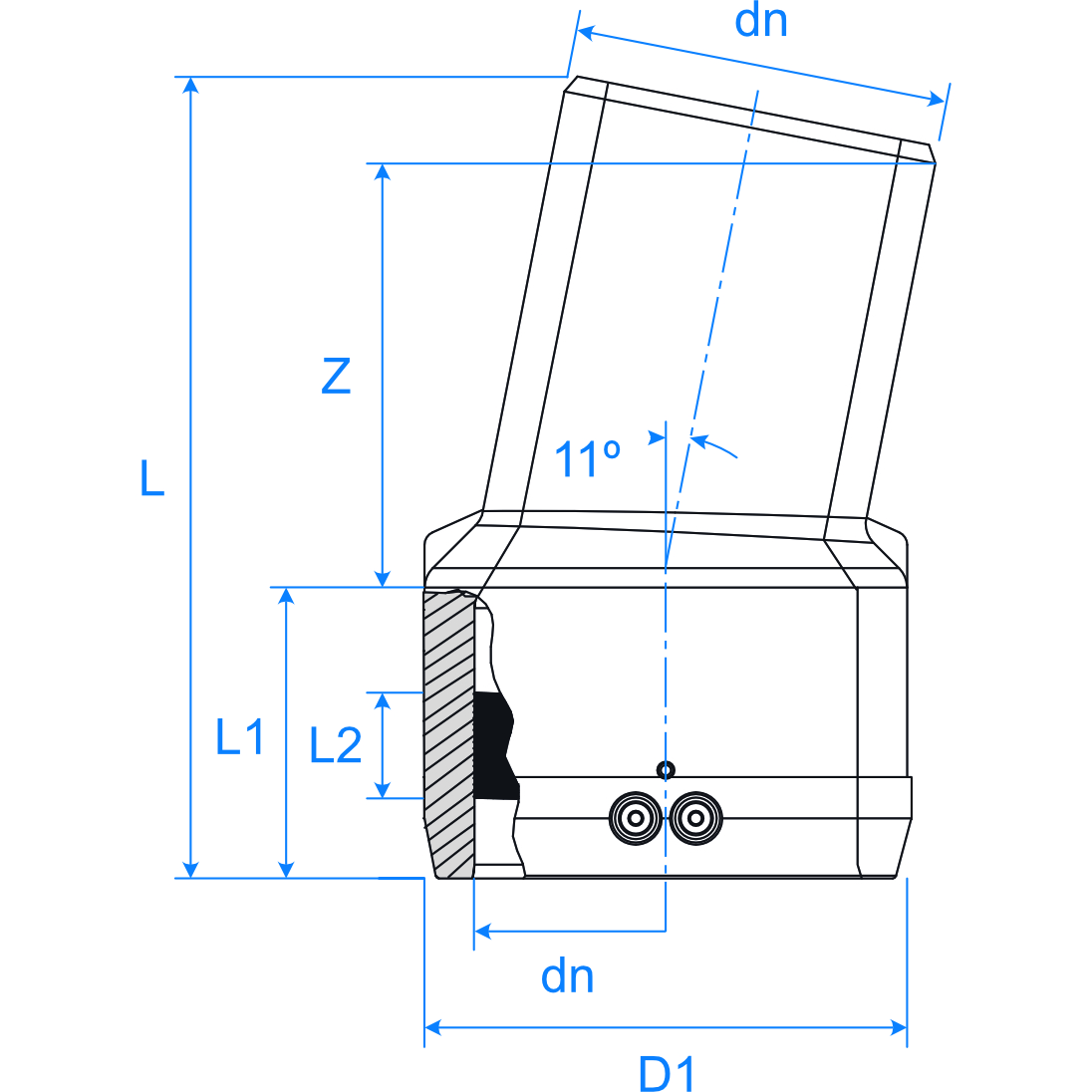

Blue 11º Injection Moulded Electrofusion Spigot Elbows / PN16 / SDR11

Friatec's PE100 RC Injection moulded electrofusion elbows are suitable for fusing pipes from SDR11 to SDR17.6  Electrofusion sockets feature all the same performance benefits found in blue couplers. This 11º elbow has an electrofusion socket one end and spigot the other, allowing two elbows to be combined together to provide an adjustable angle from 0º to 22º.  All elbows are sealed in individual plastic bags for protection on site.

NOTE: The pipe, socket and spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Product Code

dn

D1

L

L1

L2

le

Z

Availability in Hong Kong

P3326.112.125

125

160

250

84

34

87

15

Ex-Stock

P3326.112.180

180

226

310

100

50

105

22

Ex-Stock

Note: For other sizes, use spigot elbow or bend from the tables below and blue couplers to join.

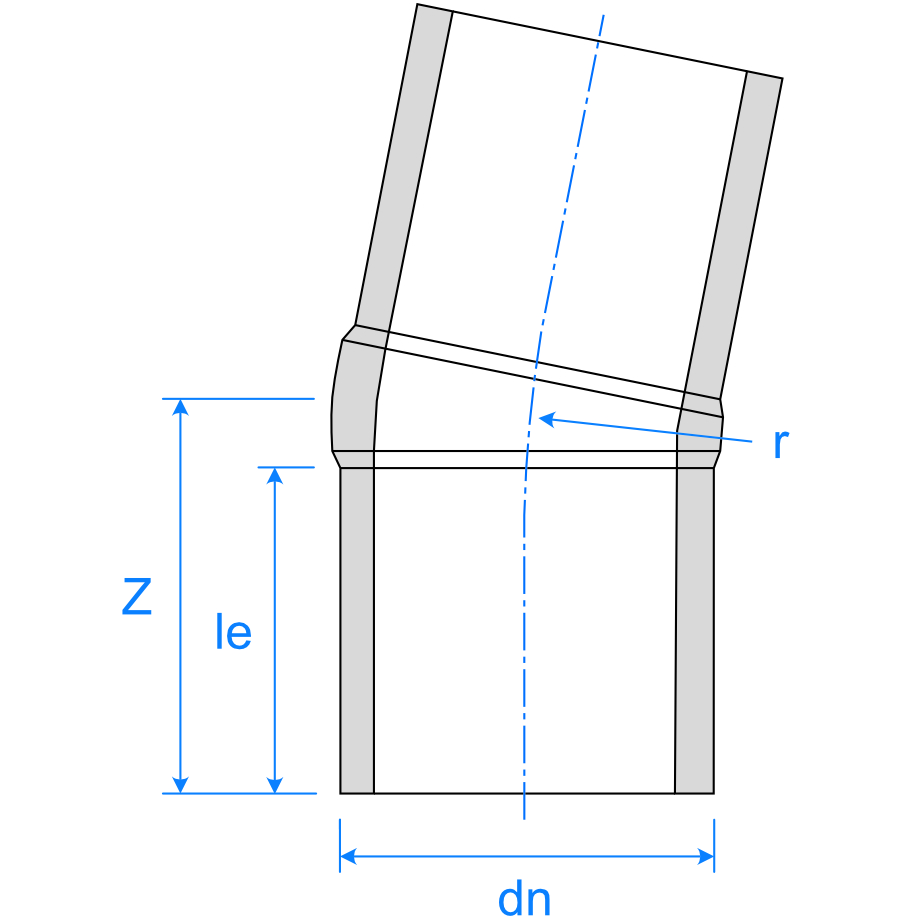

Blue 11º Injection Moulded Spigot Elbows / PN16 / SDR11

Mill-Pro PE100 RC Injection moulded spigot elbows are manufactured using Mill-Pro's own tooling under our continuous inspection. They feature long spigots for electrofusion joining and built-in reinforcement that exceeds the type testing requirements of BS EN 12201-2 and ISO 4427-3.  Mill-Pro fittings feature hard moulded brand, batch numbers for compliance checking and 1D and 2D bar code stickers for complete product traceability on site. All elbows are sealed in individual plastic bags for protection on site. Spigot fittings are joined by Electrofusion Couplers or Butt Fusion.

NOTE: The pipe and spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

Product Code

dn

le

r

Z

Availability in Hong Kong

P5826.112.032

32

45

16

47

Ex-Stock

P5826.112.050

50

56

25

58

Ex-Stock

P5826.112.063

63

65

33

68

Ex-Stock

P5826.112.090

90

79

45

83

Ex-Stock

P5826.112.250

250

130

125

142

Ex-Stock

P5826.112.315

315

150

158

166

Ex-Stock

Note: For sizes dn125, dn180 use Electrofusion elbows above.

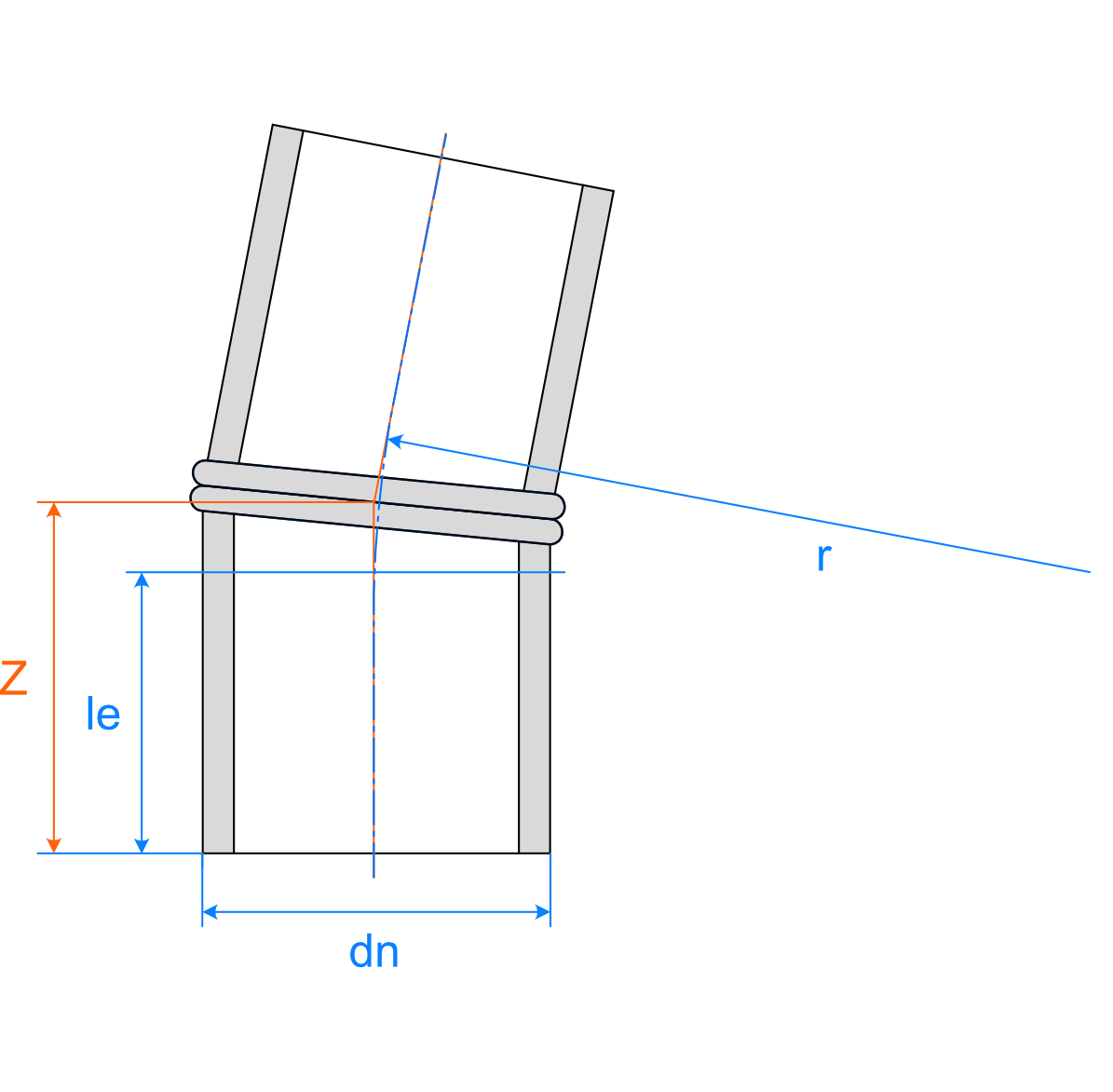

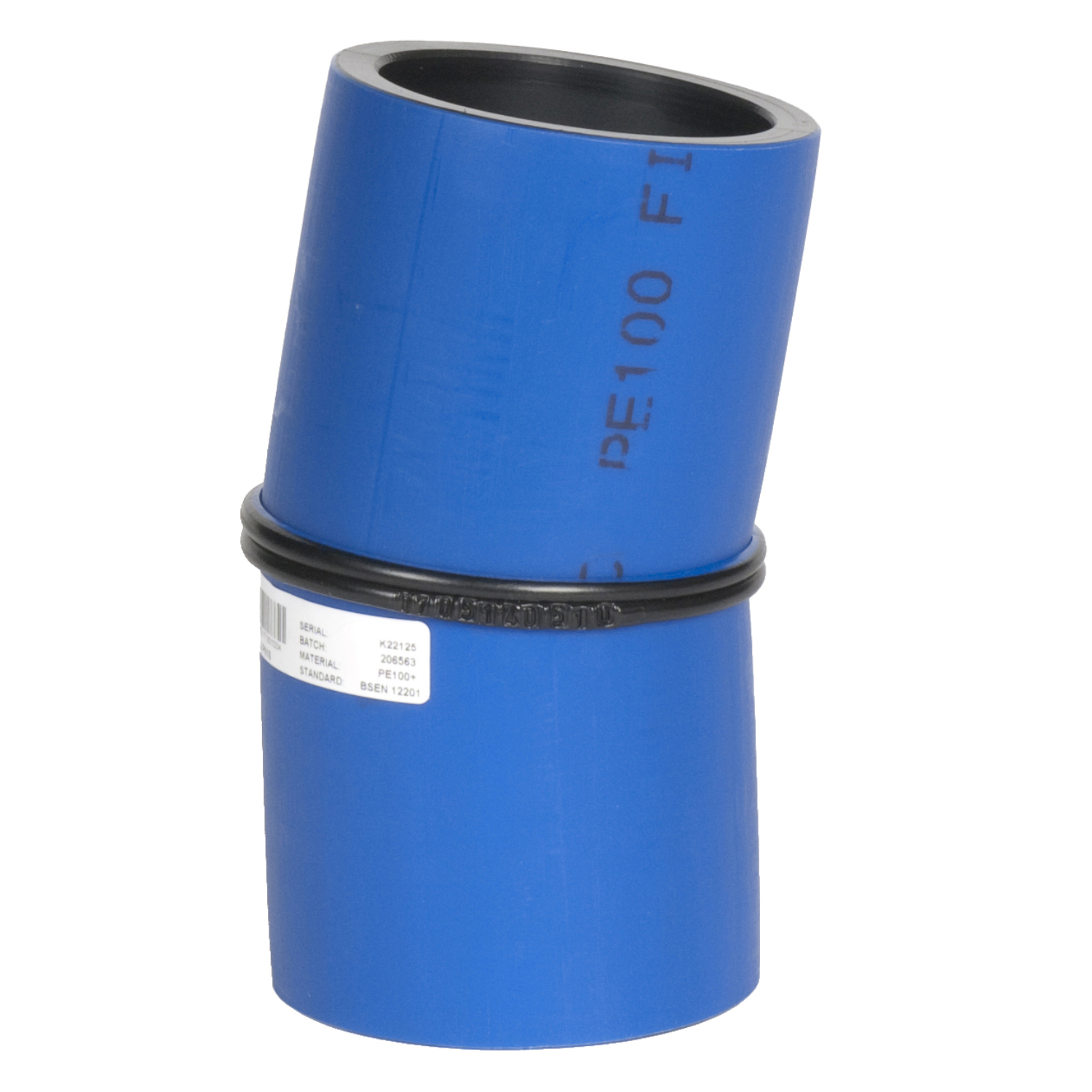

Blue / Purple 11º Segmented Spigot Bends / PN16 / SDR11

Mill-Pro's segmented single mitre spigot bends are fabricated from Mill-Pro M10E PE100 RC SDR11 blue or purple pipe in accordance with BS EN 12201-3, Clause B.3, using butt weld techniques to BS ISO 21307. They feature long spigots for electrofusion joining and 1D and 2D bar code stickers for complete product traceability on site. All bends are sealed in individual plastic bags for protection on site.

Segmented bends are manufactured from a pipe, with cut angles ≤ 7.5º and therefore are not subject to pressure de-ration factor required in BS EN 12201 Clause B.3. Generally, the internal weld beads are removed where possible and external weld beads are not removed unless ordered otherwise.

Any angle from 1º to 15º can be custom manufactured in the sizes and radii indicated below.  The standard angle for a single mitre bend is 11º with a radius of 2.5 x OD

NOTE: The pipe and spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

Product Code dn le r = 2.5 dn

Z - 11º
Single mitre

Availability in Hong Kong
P5K26.290.355 355 300 888 385 8-12 Weeks
P5K26.290.450 450 300 1125 408 8-12 Weeks
P5K26.290.500 500 350 1250 470 8-12 Weeks
P5K26.290.560 560 350 1400 485 8-12 Weeks
P5K26.290.630 630 350 1575 502 8-12 Weeks
P5K26.290.710 710 350 1775 521 8-12 Weeks
P5K26.290.800 800 350 2000 543 8-12 Weeks

Note: Fabricated bends are made from pipe, so sizes up to dn1000 in PN16/SDR11 rating are available in blue or purple colour.

Blue / Purple 11º Segmented Spigot Bends / PN10 / SDR17

As above for PN16 bends, however, bends are manufactured from Mill-Pro M10E PE100 RC SDR17 blue or purple pipe. hence rated for PN10.

SDR17 PN10 dn le r = 2.5 dn Z - 11º
Single mitre
Availability in Hong Kong
P5K24.290.355 355 300 888 385 8-12 Weeks
P5K24.290.450 450 300 1125 408 8-12 Weeks
P5K24.290.500 500 350 1250 470 8-12 Weeks
P5K24.290.560 560 350 1400 485 8-12 Weeks
P5K24.290.630 630 350 1575 502 8-12 Weeks
P5K24.290.710 710 350 1775 521 8-12 Weeks
P5K24.290.800 800 350 2000 543 8-12 Weeks
P5K24.290.900 900 400 2250 617 8-12 Weeks
P5K24.290.1000 1000 400 2500 641 8-12 Weeks
P5K24.290.1200 1200 400 3000 689 8-12 Weeks

Note:

1. Fully complies with WSD PS, however only where the engineer allows the use of PN10 fittings.

2. Sizes ≤ dn1600 and <dn355 available on request.
