Black Tapping / Spigot Saddles

Black Spigot Saddle / SA TL / PN16 / SDR11

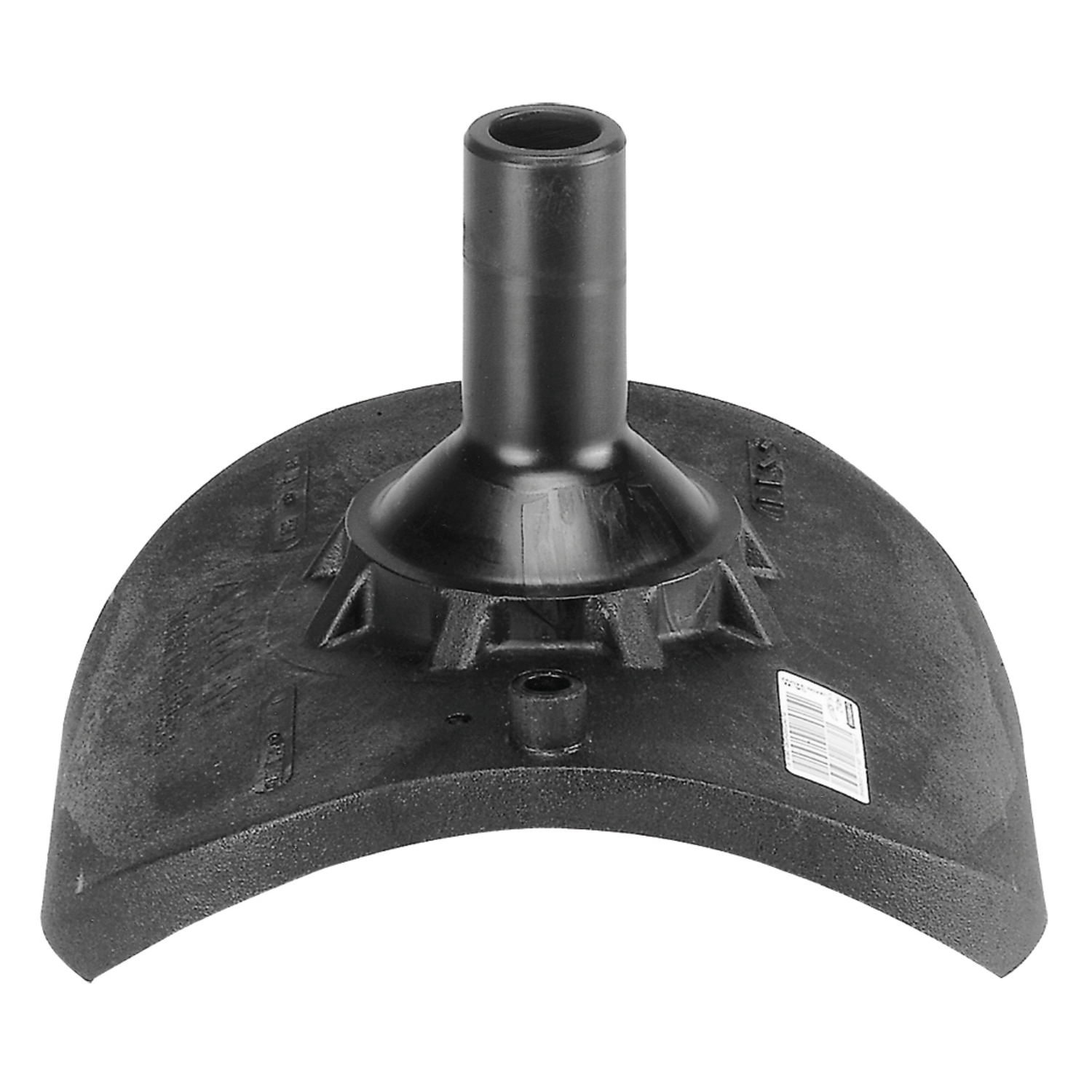

The Friatec SA TL electrofusion spigot saddles provide for small offtake connections typically for air valves or sampling points (such as pressure transducers) onto larger diameter rising mains. The SA TL can be installed during construction or post-construction when the pipeline is under normal operating pressure using under pressure tapping equipment.  This prevents the main having to be shut down during the installation process.

The SA TL must be installed using a FRIATOOLS top-loading clamping unit, to apply and maintain force on the saddle during the fusing and cooling period.  The Top Loading unit is available for rental.

Pressure testing of the saddle after fusion is recommended, before drilling the tapping hole into the main pipe.

Typically for use as DN50 or DN80 Air valve offtakes or sampling points.

Product Code

dn1

dn2

L1

le

Z1

Availability in Hong Kong

P3316.187.250-560063

250-560

63

200

56

109

8-12 Weeks

P3316.187.250-560090

250-560

90

200

80

111

8-12 Weeks



Black Spigot Saddle / SA UNI / PN16 / SDR11

As above, Friatec SA UNI electrofusion spigot saddles provide for small offtake connections typically for air valves or sampling points (such as pressure transducers) and can be installed during construction or post-construction when the pipeline is under normal operating pressure using under pressure tapping equipment.  This prevents the main having to be shut down during the installation process.

Pressure testing of the saddle after fusion is recommended, before drilling the tapping hole into the main pipe.  This is performed using the integrated pressure nozzle and pressure test adaptor - FWDPA.

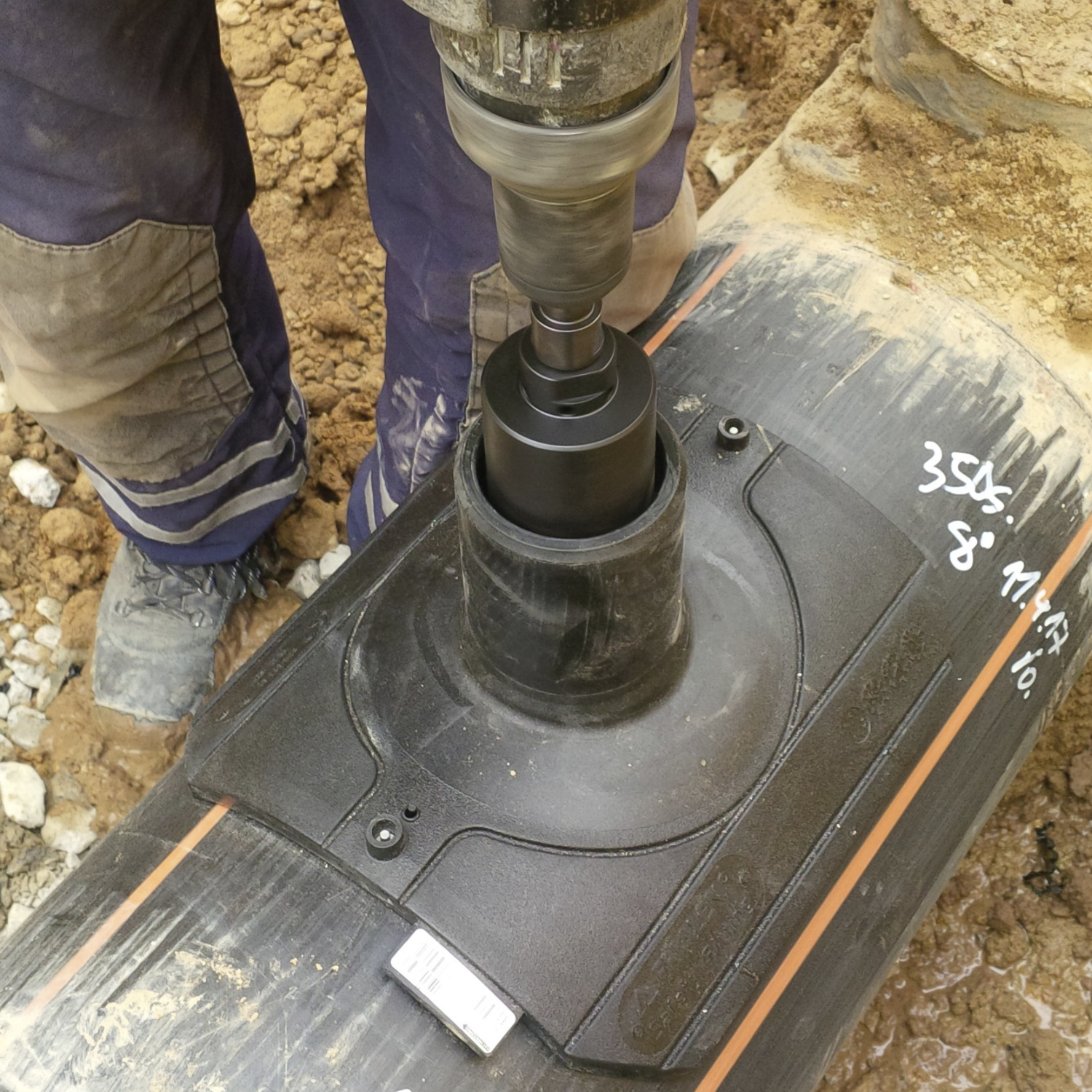

Assembly is conducted using the FRIATOOLS clamping unit UNITOP. Tapping in the unpressurised condition can be achieved using the correct size hole saw.

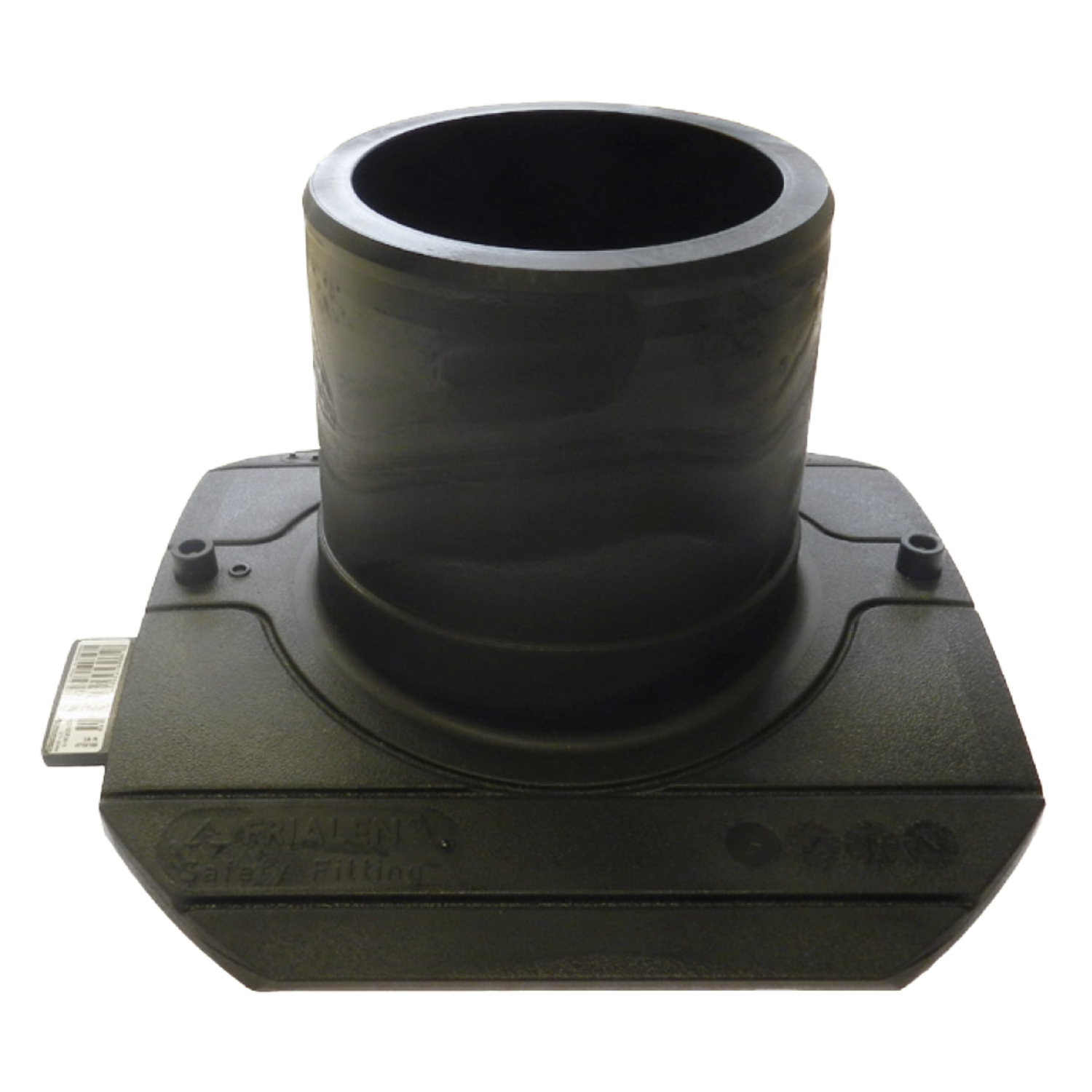

Product Code dn1 dn2 da L1 L2 le Z1 Availability in Hong Kong
P3316.187.250-280090 250-280 90 66 260 279 79 130 8-12 weeks
P3316.187.250-280110 250-280 110 82 260 279 82 140 8-12 weeks
P3316.187.250-280125 250-280 125 94 260 279 87 146 8-12 weeks
P3316.187.250-280160 250-280 160 123 260 279 98 158 8-12 weeks
P3316.187.315-400090 315-400 90 66 280 279 79 130 8-12 weeks
P3316.187.315-400110 315-400 110 82 280 279 82 140 8-12 weeks
P3316.187.315-400125 315-400 125 94 280 279 87 146 8-12 weeks
P3316.187.315-400160 315-400 160 123 280 279 98 158 8-12 weeks
P3316.187.450-800090 450-800 90 66 307 279 79 130 8-12 weeks
P3316.187.450-800110 450-800 110 82 307 279 82 140 8-12 weeks
P3316.187.450-800125 450-800 125 94 307 279 87 146 8-12 weeks
P3316.187.450-800160 450-800 160 123 307 279 98 158 8-12 weeks



Black Spigot Saddle / SA XL / PN16 / SDR11

The Friatec SA XL electrofusion spigot saddles are used for making large diameter offtakes (up to dn355) on large diameter PE mains up to dn1200. In sewer rising mains these fitting would be used to install additional CCTV inspection points, or an inverted offtake for a drain scour, after the line is commissioned.

The SA XL can be installed during construction or post-construction when the pipeline is under normal operating pressure.  Connections can be made 'live' using under pressure tapping equipment.  This prevents the main having to be shut down during the installation process.

Pressure testing of the saddle after fusion is recommended, before drilling the tapping hole into the main pipe.

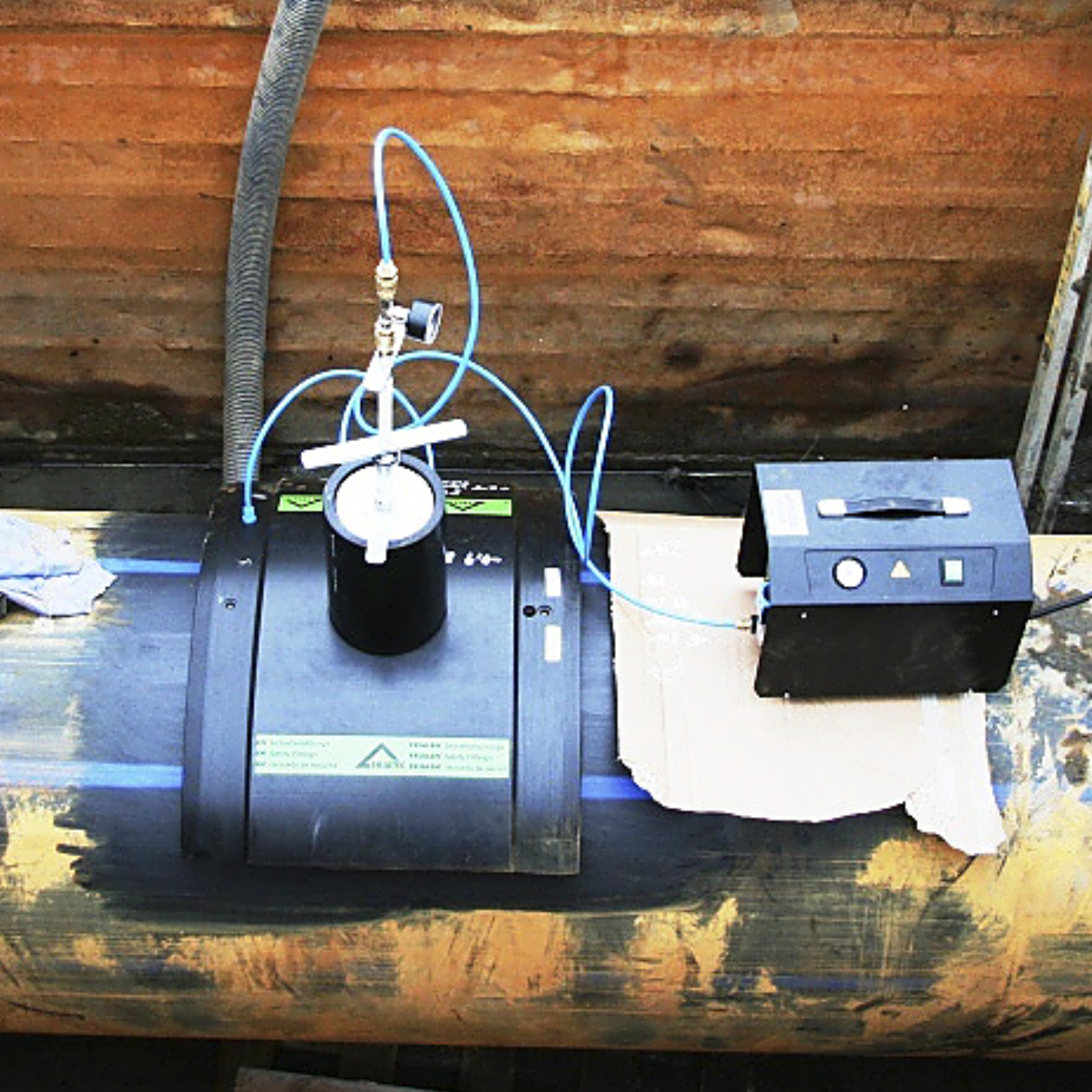

Assembly is conducted using a FRIATOOLS vacuum pump and the corresponding FRIATOOLS plunger.  The vacuum unit sucks the saddle down onto the surface of the pipe providing the necessary force to achieve optimal electrofusion to the pipe surface. Tapping in the unpressurised condition can be achieved using the correct size hole saw.

Product Code dn1 dn2 da h L1 L2 le Z1 Availability in Hong Kong
P3316.187.400225 400 225 172 263 530 403 210 483 8-12 weeks
P3316.187.400250 400 250 187 261 530 417 210 483 8-12 weeks
P3316.187.450225 450 225 172 267 530 421 210 530 8-12 weeks
P3316.187.450250 450 250 187 272 530 426 210 530 8-12 weeks
P3316.187.500225 500 225 172 265 530 388 210 521 8-12 weeks
P3316.187.500250 500 250 187 263 530 380 210 521 8-12 weeks
P3316.187.500280 500 280 225 265 590 388 210 521 8-12 weeks
P3316.187.500315 500 315 254 268 590 446 210 573 8-12 weeks
P3316.187.560225 560 225 172 263 530 402 210 577 8-12 weeks
P3316.187.560250 560 250 187 263 530 398 210 577 8-12 weeks
P3316.187.560280 560 280 225 265 590 404 210 577 8-12 weeks
P3316.187.560315 560 315 254 268 590 402 210 564 8-12 weeks
P3316.187.560355 560 355 286 260 630 451 210 618 8-12 weeks
P3316.187.560400 560 400 322 260 630 451 210 618 8-12 weeks
P3316.187.630225 630 225 172 265 530 422 210 634 8-12 weeks
P3316.187.630250 630 250 187 267 530 419 210 634 8-12 weeks
P3316.187.630280 630 280 225 263 590 420 210 634 8-12 weeks
P3316.187.630315 630 315 254 265 590 417 210 621 8-12 weeks
P3316.187.630355 630 355 286 269 630 422 220 616 8-12 weeks
P3316.187.630400 630 400 322 267 630 419 220 616 8-12 weeks
P3316.187.710225 710 225 172 270 530 447 210 712 8-12 weeks
P3316.187.710250 710 250 187 265 530 437 210 712 8-12 weeks
P3316.187.710280 710 280 225 268 590 445 210 712 8-12 weeks
P3316.187.710315 710 315 254 268 590 439 210 694 8-12 weeks
P3316.187.710355 710 355 286 285 630 457 220 694 8-12 weeks
P3316.187.710400 710 400 322 275 630 447 220 694 8-12 weeks
P3316.187.800225 800 225 172 270 530 381 210 643 8-12 weeks
P3316.187.800250 800 250 187 275 530 384 210 643 8-12 weeks
P3316.187.800280 800 280 225 268 590 382 210 643 8-12 weeks
P3316.187.800315 800 315 254 268 590 377 210 629 8-12 weeks
P3316.187.800355 800 355 286 290 630 483 220 772 8-12 weeks
P3316.187.800400 800 400 322 275 630 468 220 772 8-12 weeks
P3316.187.900225 900 225 172 268 530 396 210 714 8-12 weeks
P3316.187.900250 900 250 187 278 530 402 210 714 8-12 weeks
P3316.187.900280 900 280 225 268 590 396 210 714 8-12 weeks
P3316.187.900315 900 315 254 269 590 393 210 700 8-12 weeks
P3316.187.900355 900 355 286 305 630 429 220 700 8-12 weeks
P3316.187.900400 900 400 322 275 630 399 220 700 8-12 weeks
P3316.187.1000160 1000 160 123 300 530 390 249 654 8-12 weeks
P3316.187.1000225 1000 225 172 270 530 396 210 653 8-12 weeks
P3316.187.1000250 1000 250 187 280 530 366 210 653 8-12 weeks
P3316.187.1000280 1000 280 225 270 590 361 210 653 8-12 weeks
P3316.187.1000315 1000 315 254 270 590 358 210 642 8-12 weeks
P3316.187.1000355 1000 355 286 305 630 444 220 774 8-12 weeks
P3316.187.1000400 1000 400 322 278 630 417 220 774 8-12 weeks
P3316.187.1200160 1200 160 123 300 530 375 250 655 8-12 weeks
P3316.187.1200225 1200 225 172 270 530 346 210 655 8-12 weeks
P3316.187.1200250 1200 250 187 280 530 354 210 655 8-12 weeks
P3316.187.1200280 1200 280 225 270 590 345 210 655 8-12 weeks
P3316.187.1200315 1200 315 254 270 590 343 210 645 8-12 weeks
P3316.187.1200355 1200 355 286 305 630 413 220 759 8-12 weeks
P3316.187.1200400 1200 400 322 278 630 385 220 759 8-12 weeks



Black Spigot Saddle / SA / PN16 / SDR11

The Friatec SA electrofusion spigot saddles with bolt-on underpart can be installed during construction or post-construction when the pipeline is under normal operating pressure.  Connections can be made 'live' using under pressure tapping equipment.  This prevents the main having to be shut down during the installation process.

Pressure testing of the saddle after fusion is recommended, before drilling the tapping hole into the main pipe.

Friatec spigot offtake saddle  Installation can be either during construction or post-construction when the pipeline is under normal operating pressure. This prevents the main having to be shut down during the installation process.

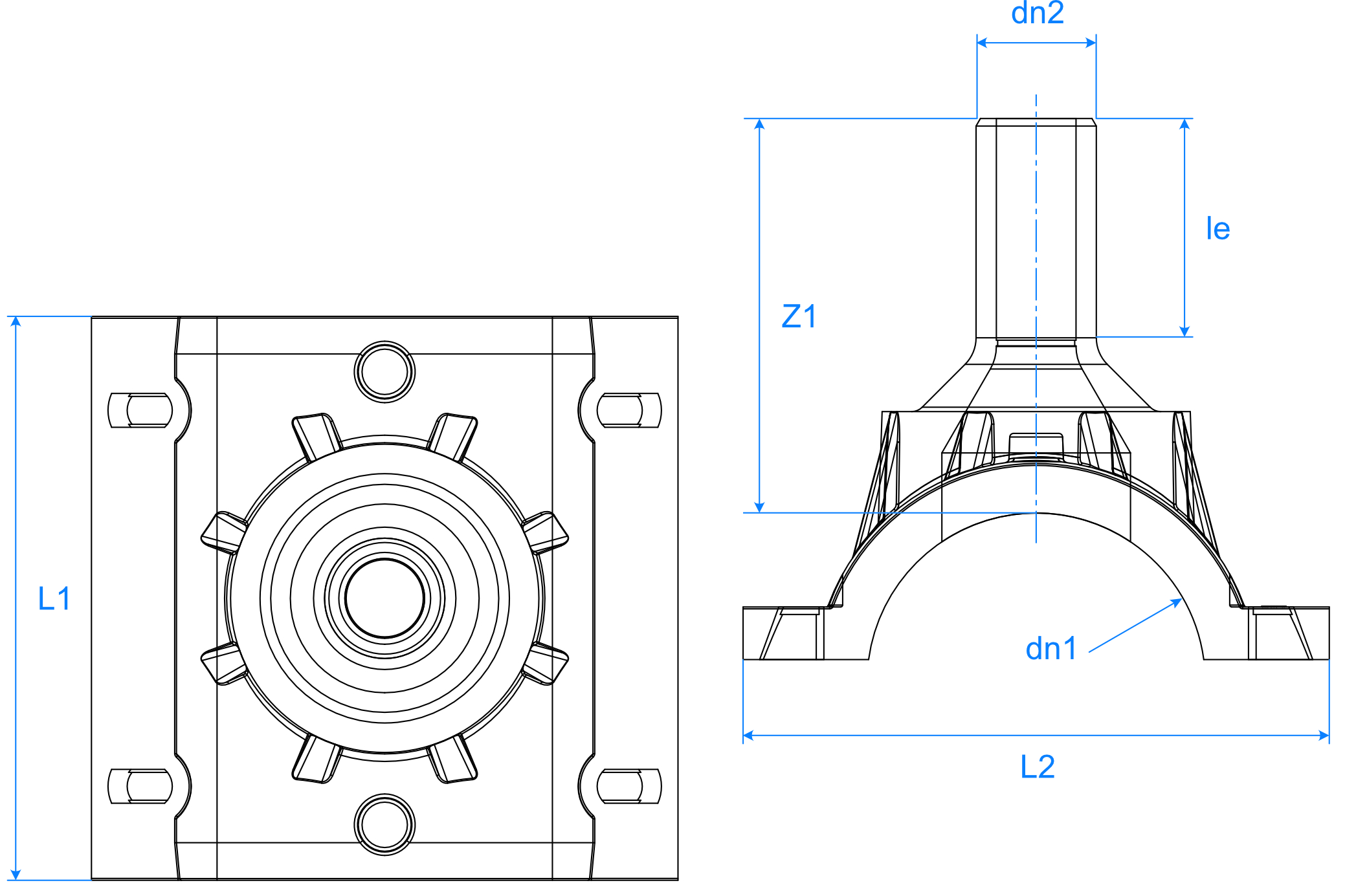

Product Code dn1 dn2 L1 L2 le Z1 Availability in Hong Kong
P3316.083.110063 110 63 180 178 81 150 8-12 weeks
P3316.083.110090 110 90 180 165 79 115 8-12 weeks
P3316.083.125063 125 63 185 190 63 109 8-12 weeks
P3316.083.125090 125 90 185 185 79 116 8-12 weeks
P3316.083.125110 125 110 185 185 82 116 8-12 weeks
P3316.083.160063 160 63 265 223 63 126 8-12 weeks
P3316.083.160090 160 90 265 223 79 140 8-12 weeks
P3316.083.160110 160 110 265 223 82 140 8-12 weeks
P3316.083.160125 160 125 265 223 87 140 8-12 weeks
P3316.083.180063 180 63 195 240 63 100 8-12 weeks
P3316.083.180090 180 90 285 241 79 116 8-12 weeks
P3316.083.180110 180 110 285 241 82 136 8-12 weeks
P3316.083.180125 180 125 285 241 87 141 8-12 weeks
P3316.083.200063 200 63 195 250 63 109 8-12 weeks
P3316.083.225063 225 63 195 255 63 109 8-12 weeks
P3316.083.225090 225 90 279 284 79 130 8-12 weeks
P3316.083.225110 225 110 279 284 82 140 8-12 weeks
P3316.083.225125 225 125 279 284 87 146 8-12 weeks
P3316.083.225160 225 160 279 284 98 157 8-12 weeks
