Black Equal Tees / EF / SP

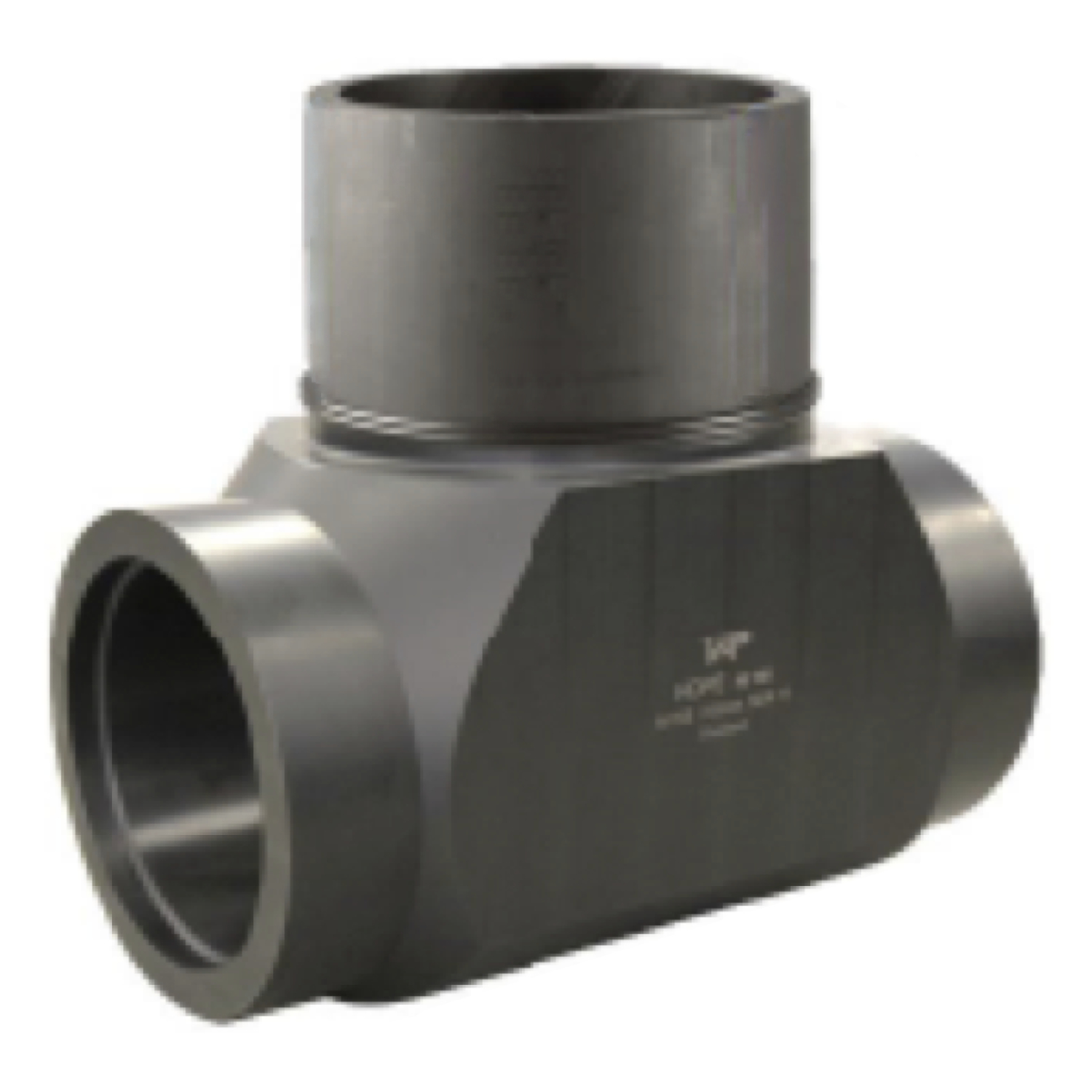

Black Spigot Equal Tee Fabricated / PN10 / SDR 17

Fabricated Tee's are manufactured by machining PE100+ hollow bar into a fitting body and welding on spigot ends in according with BS ISO 21307. Fabricated Tee's feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability. All Tee's are sealed in individual plastic bags for protection on site.

NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

P5314.40.355

355

355

1045

300

280

523

498

6-8 Weeks

P5314.40.450

450

450

1160

300

280

580

555

6-8 Weeks

P5314.40.500

500

500

1310

350

320

655

620

6-8 Weeks

P5314.40.560

560

560

1380

350

320

690

655

6-8 Weeks

P5314.40.630

630

630

1450

350

320

725

690

6-8 Weeks

P5314.40.710

710

710

1530

350

400

765

810

6-8 Weeks

P5314.40.800

800

800

1660

350

400

830

875

6-8 Weeks

Product Code

dn1

dn2

L

le1

le2

Z1

Z2

Availability in Hong Kong

Note:

1. Larger sizes up to dn2000 are available in PN10 / SDR 17 rating, dimensions on request.

2. Fully complies with DSD Appendix 5A, Clause 5.5.7.

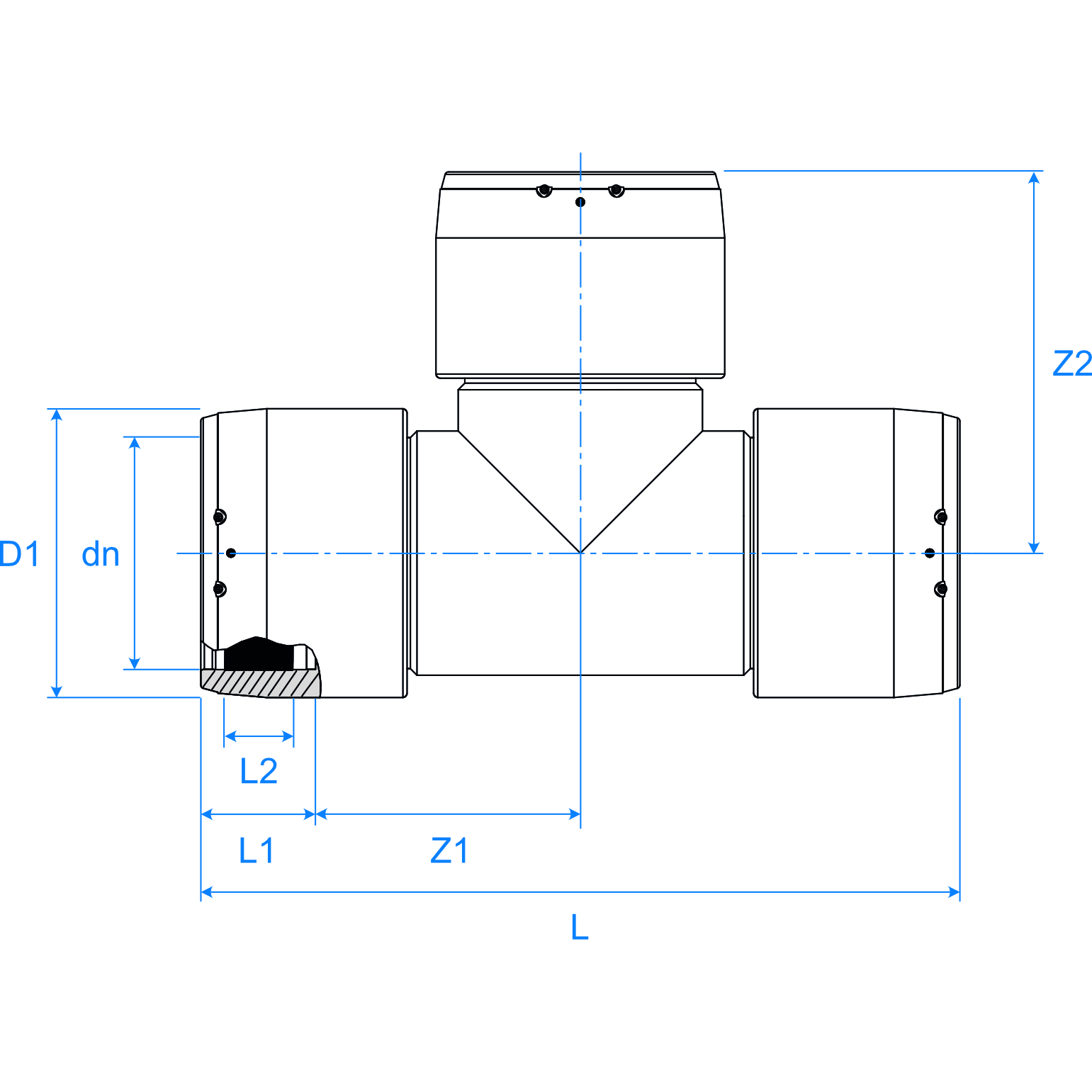

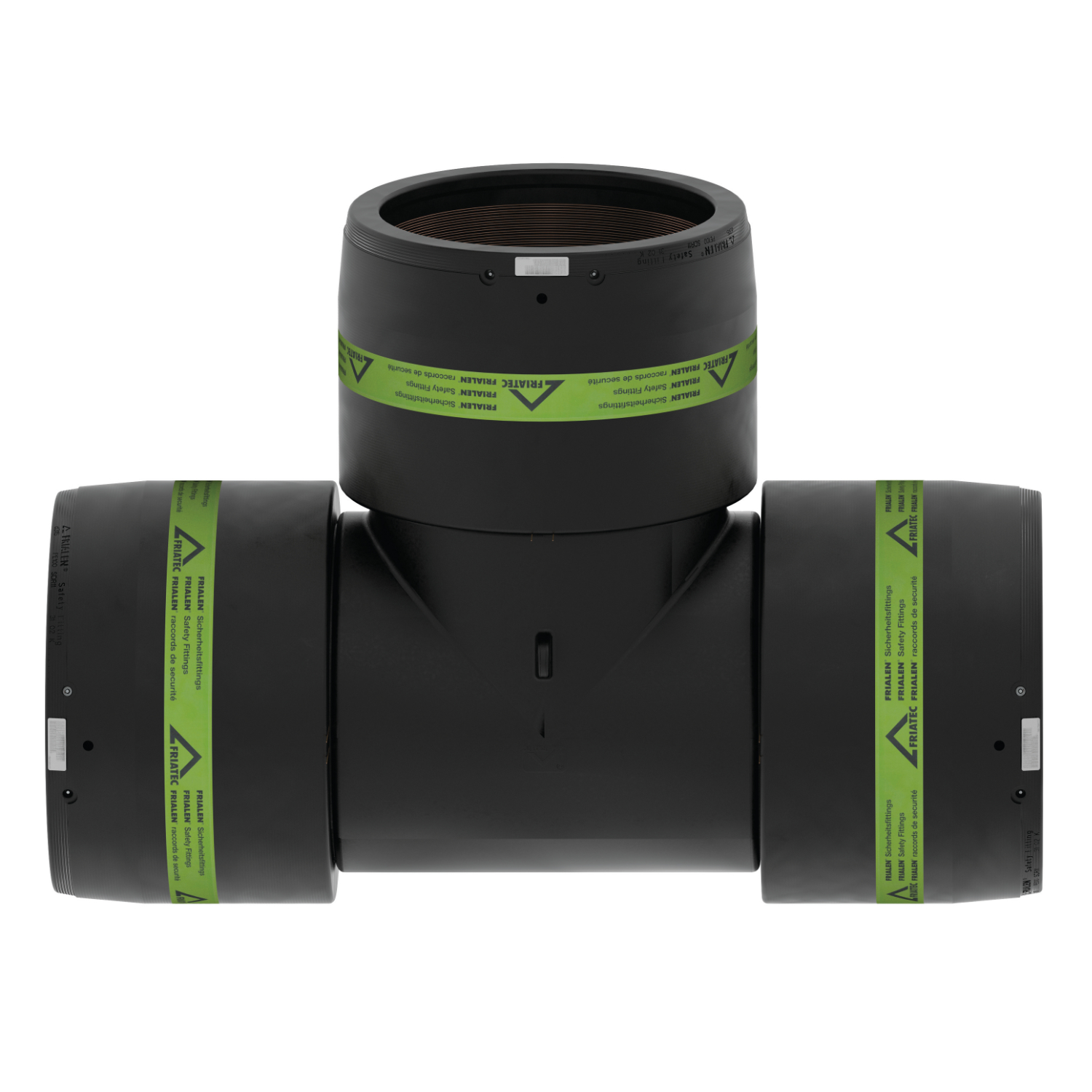

Black Electrofusion Equal Tee / T XL / SDR11-PN16

Friatec's PE100 XL range of electrofusion Tee's are suitable for fusing pipes from SDR11 to SDR17.6  Electrofusion sockets feature all the same performance benefits found with black couplers along with built-in reinforcement, so no de-ration is required.  XL fittings have separate fusion zones and a fused eyebolt for ease of handling on site.

NOTE: The electrofusion socket and pipe ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Product Code

dn

D1

L

L1

L2

Z1

Z2

Availability in Hong Kong

P3316.122.250

250

310

770

128

80

514

257

8-12 weeks

P3316.122.280

280

350

905

139

84

627

316

8-12 weeks

P3316.122.315

315

396

940

150

80

640

322

8-12 weeks

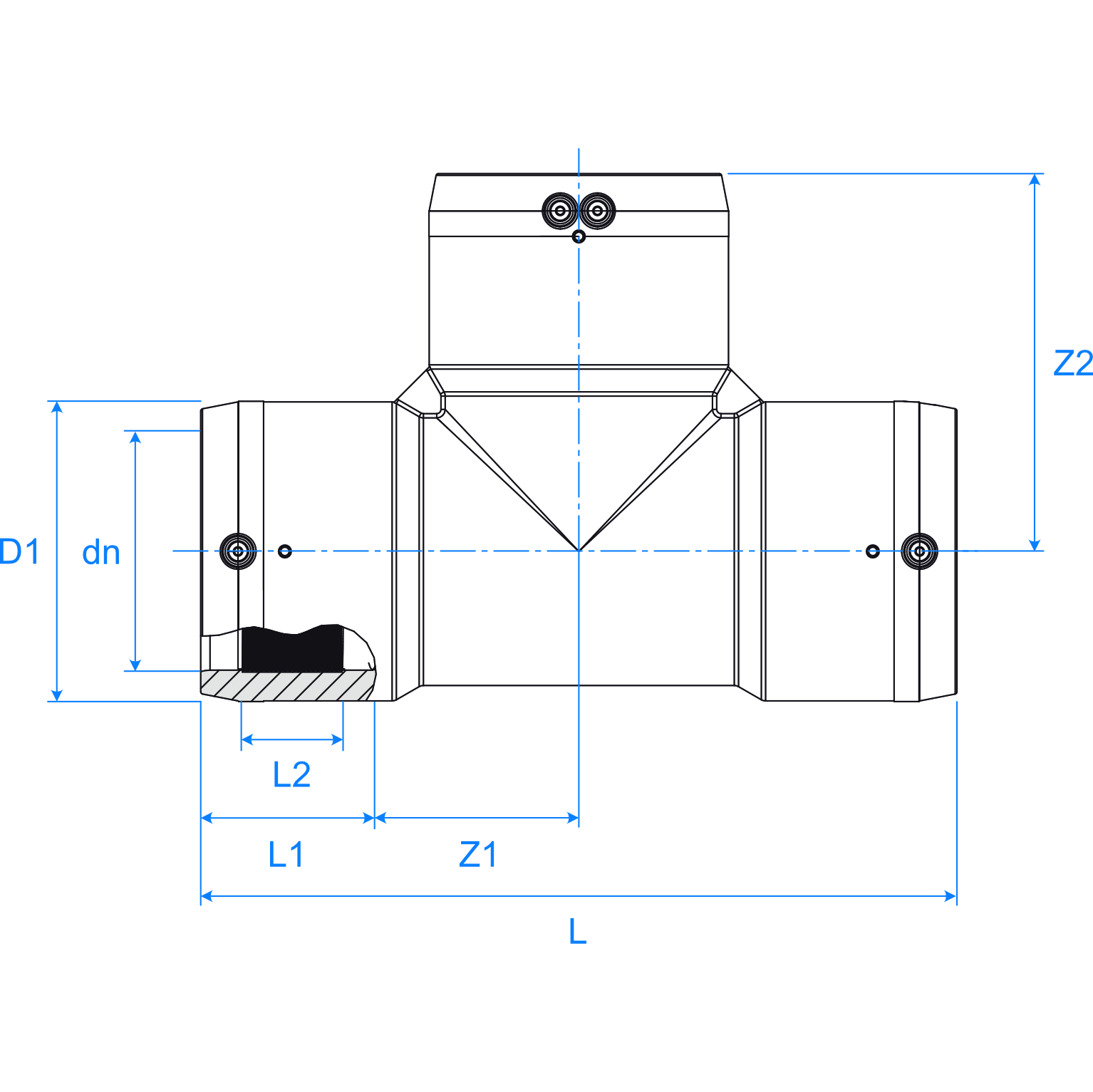

Black Electrofusion Equal Tee / T / SDR11-PN16

Friatec's PE100 Injection moulded electrofusion Tees are suitable for fusing pipes from SDR11 to SDR17.6  Electrofusion sockets feature all the same performance benefits found in black couplers, along with built-in reinforcement, so no de-ration is required.

NOTE: The pipe ends and sockets must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Product Code

dn

D1

L

L1

L2

Z1

Z2

Availability in Hong Kong

P3316.122.090

90

117

305

79

44

73.5

153

8-12 weeks

P3316.122.110

110

142

355

87

48

90.5

177

8-12 weeks

P3316.122.125

125

160

384

87

44

105

192

8-12 weeks

P3316.122.160

160

200

430

96

48

119

215

8-12 weeks

P3316.122.180

180

228

480

103

62

137

240

8-12 weeks

P3316.122.200

200

251

550

115

54

160

275

8-12 weeks

P3316.122.225

225

280

580

118

63

172

290

8-12 weeks

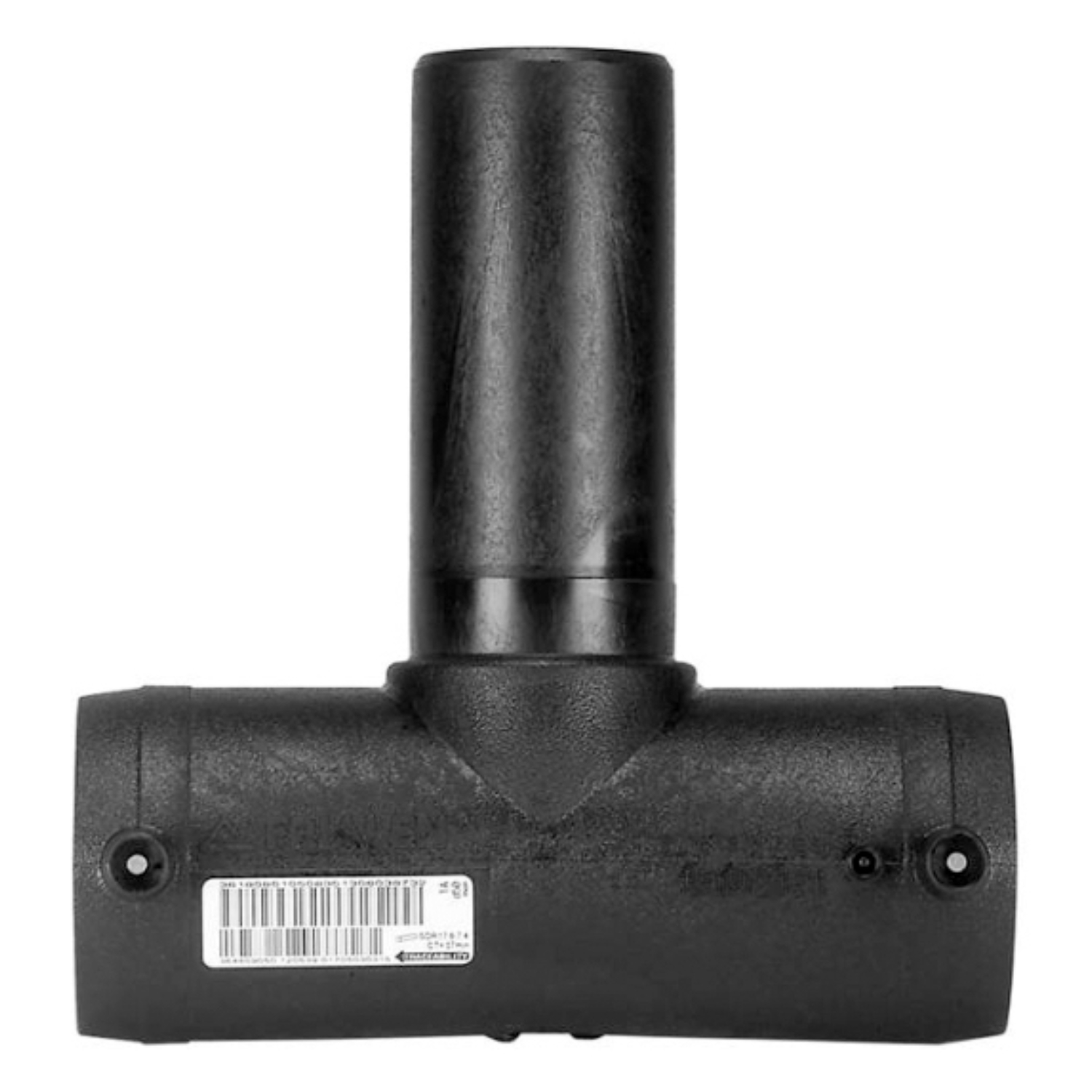

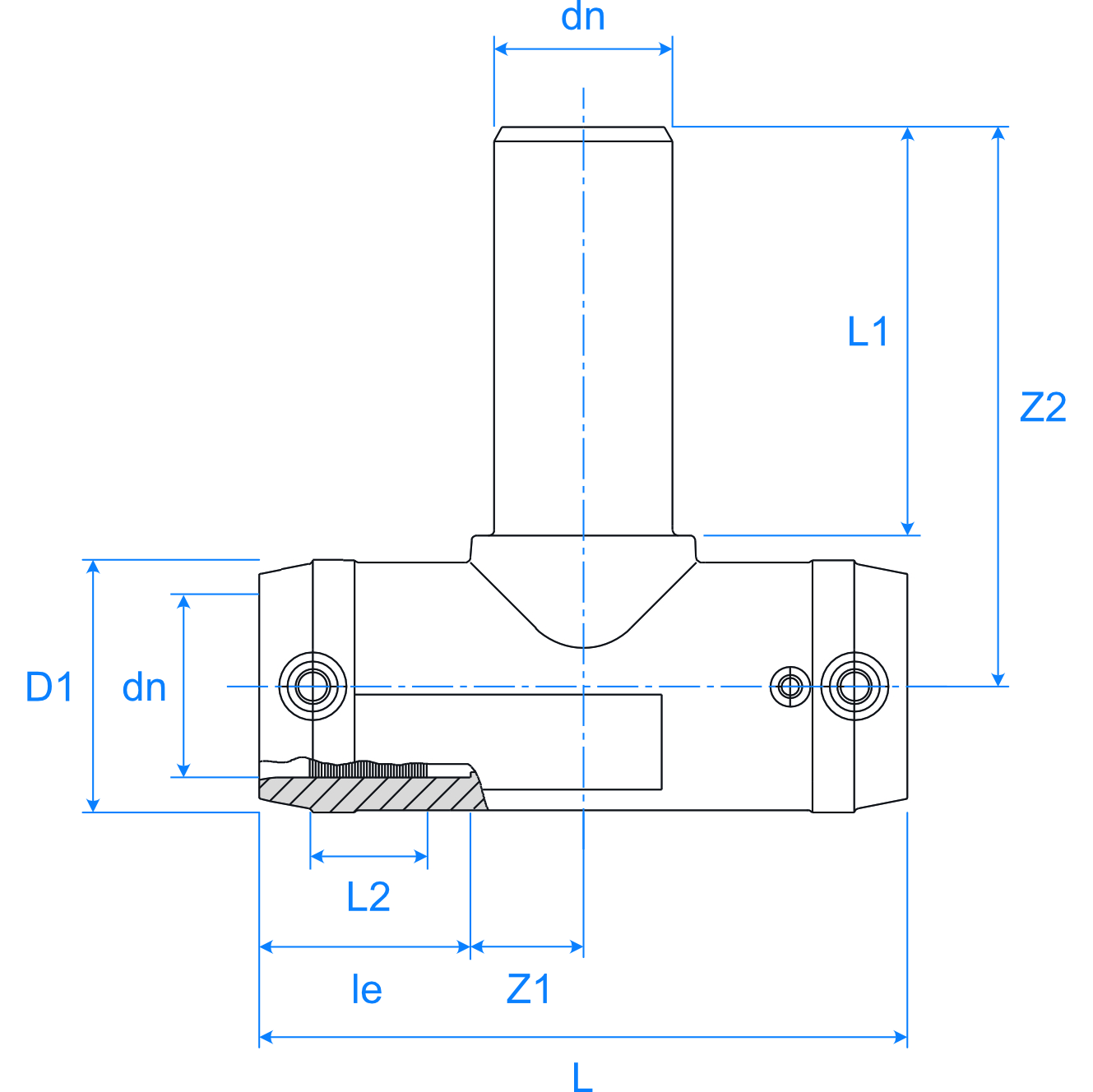

Black Electrofusion Equal Tee - Spigot Offtake / TA / SDR11-PN16

Friatec's PE100 Injection moulded electrofusion Tees are suitable for fusing pipes from SDR11 to SDR17.6  Electrofusion sockets feature all the same performance benefits found in black couplers, along with built-in reinforcement, so no de-ration is required.

Injection moulded tee piece with electrofusion sockets on the mainway and an extra-long spigot branch outlet for connection using a black MB coupler.

NOTE: The pipe ends and sockets must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Product Code

dn

D1

L

L1

L2

le

Z1

Z2

Availability in Hong Kong

P3316.120.063

63

81

197

56

33

115

42

162.5

8-12 weeks

P3316.120.090

90

116

280

79

43

79

61

161

8-12 weeks

P3316.120.110

110

141

310

82

48

82

73

176

8-12 weeks

P3316.120.160

160

203

390

98

45

98

97

224

8-12 weeks



Black Spigot Equal Tee Fabricated / PN16 / SDR 11

Fabricated Tee's are manufactured by machining PE100+ hollow bar into a fitting body and welding on spigot ends in according with BS ISO 21307. Fabricated Tee's feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability. All Tee's are sealed in individual plastic bags for protection on site.

NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

Product Code

dn1

dn2

L

le1

le2

Z1

Z2

Availability in Hong Kong

P5316.40.355

355

355

1045

300

280

523

498

6-8 Weeks

P5316.40.450

450

450

1160

300

280

580

555

6-8 Weeks

P5316.40.500

500

500

1310

350

320

655

620

6-8 Weeks

P5316.40.560

560

560

1380

350

320

690

655

6-8 Weeks

P5316.40.630

630

630

1450

350

320

725

690

6-8 Weeks

P5316.40.710

710

710

1530

350

400

765

810

6-8 Weeks

P5316.40.800

800

800

1660

350

400

830

875

6-8 Weeks

Note:

1. dn1000 tees are available in SDR 11 rating, dimensions on request.

2. For smaller sizes use Electrofusion Tee's above.

Black Spigot Equal Tee Fabricated / PN20 / SDR 9

Fabricated Tee's are manufactured by machining PE100+ hollow bar into a fitting body and welding on spigot ends in according with BS ISO 21307. Fabricated Tee's feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability.

NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

Product Code

dn1

dn2

L

le1

le2

Z1

Z2

Availability in Hong Kong

P5317.40.180

180

180

545

150

220

273

340

6-8 Weeks

P5317.40.250

250

250

830

250

220

415

380

6-8 Weeks

P5317.40.315

315

315

1005

300

220

503

418

6-8 Weeks

P5317.40.355

355

355

1045

300

280

523

498

6-8 Weeks

P5317.40.450

450

450

1160

300

280

580

555

6-8 Weeks

P5317.40.500

500

500

1310

350

320

655

620

10-12 Weeks

P5317.40.560

560

560

1380

350

320

690

655

10-12 Weeks

P5317.40.630

630

630

1450

350

320

725

690

10-12 Weeks

P5317.40.710

710

710

1530

350

400

765

810

10-12 Weeks

P5317.40.800

800

800

1660

350

400

830

875

10-12 Weeks

Note: dn800 is the largest size pipe available in Pn20 SDR9 and therefore is also the largest Tee size available.
