Specialty Tees

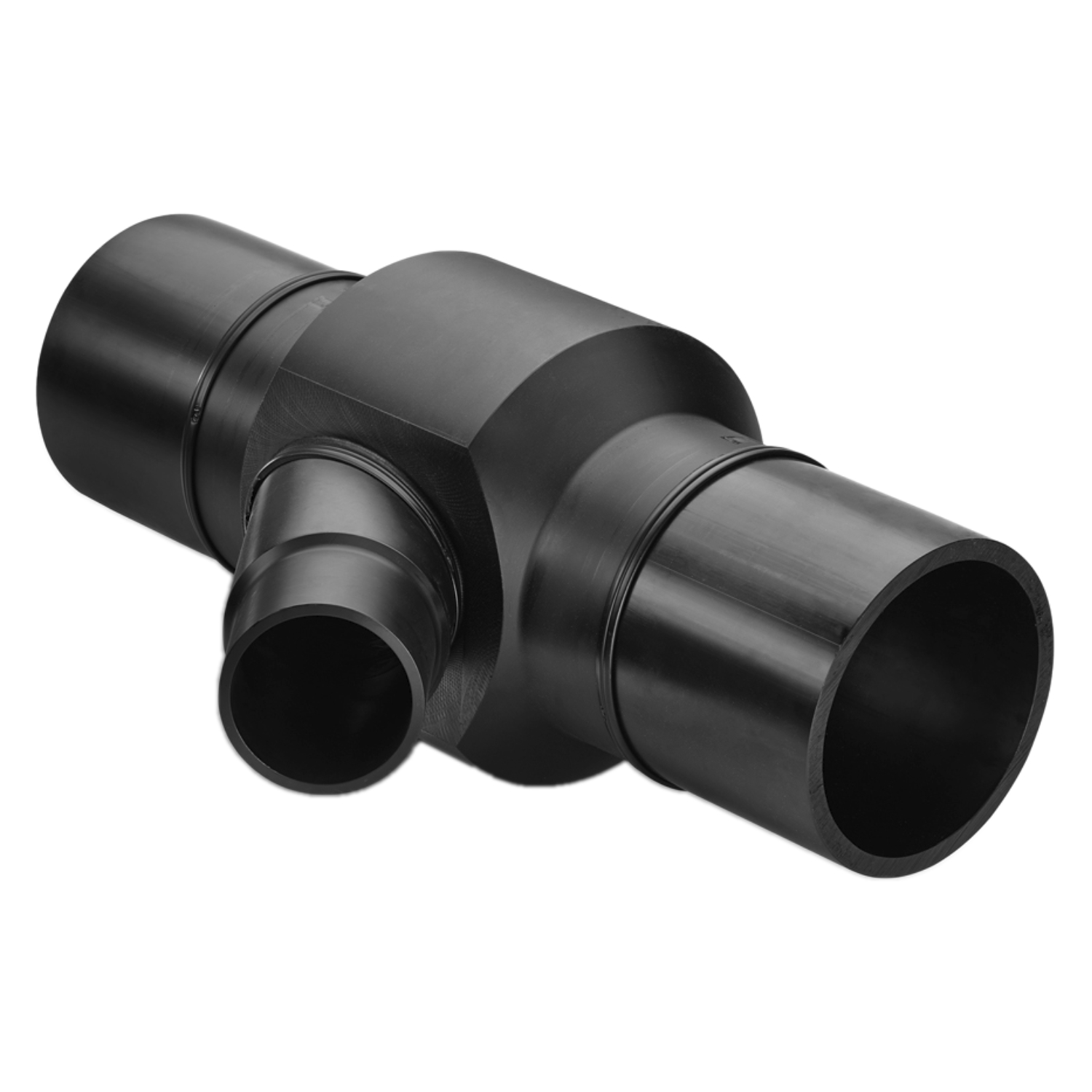

Level Invert (Scour/Drain) Fabricated Tee

Fabricated Scour or Drain Tee's are designed to be located at the low points in rising mains to completely drain the line to facilitate inspection and cleaning.  The advantages of level invert offtakes are they eliminate the need to excavate significantly below the pipeline in a chamber reducing construction costs. Manufactured by machining PE100+ hollow bar into a fitting body and welding on spigot ends in according with BS ISO 21307. Fabricated Tee's feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability.

SDR17 PN10 SDR11 PN16 dn1 dn2 L le1 le2 Z1 Z2 Availability in Hong Kong
Larger sizes up to dn2000 with offtakes from dn180 to dn1800 are available in PN10 / SDR 17 rating. Dimensions avaialble on request.
Fully complies with DSD Appendix 5A, Clause 5.5.7.
- P5316.42.250063 250 63 670 250 180 335 335.0 6-8 weeks
- P5316.42.250090 250 90 690 250 180 345 335.0 6-8 weeks
- P5316.42.250125 250 125 710 250 180 355 335.0 6-8 weeks
- P5316.42.315063 315 63 790 300 180 395 372.5 6-8 weeks
- P5316.42.315090 315 90 810 300 180 405 372.5 6-8 weeks
- P5316.42.315125 315 125 840 300 180 420 372.5 6-8 weeks
P5314.42.355090 P5316.42.355090 355 90 830 300 180 415 392.5 6-8 weeks
P5314.42.355125 P5316.42.355125 355 125 850 300 180 425 392.5 6-8 weeks
P5314.42.355180 P5316.42.355180 355 180 900 300 220 450 437.5 6-8 weeks
P5314.42.450125 P5316.42.450125 450 125 880 300 180 440 445.0 6-8 weeks
P5314.42.450180 P5316.42.450180 450 180 940 300 220 470 490.0 6-8 weeks
P5314.42.500125 P5316.42.500125 500 125 1000 350 180 500 470.0 6-8 weeks
P5314.42.500180 P5316.42.500180 500 180 1050 350 220 525 515.0 6-8 weeks
P5314.42.500250 P5316.42.500250 500 250 1110 350 220 555 515.0 6-8 weeks
P5314.42.560180 P5316.42.560180 560 180 1060 350 220 530 545.0 6-8 weeks
P5314.42.560250 P5316.42.560250 560 250 1110 350 220 555 545.0 6-8 weeks
P5314.42.630180 P5316.42.630180 630 180 1090 350 220 545 585.0 6-8 weeks
P5314.42.630250 P5316.42.630250 630 250 1140 350 220 570 585.0 6-8 weeks
P5314.42.630315 P5316.42.630315 630 315 1190 350 220 595 585.0 6-8 weeks

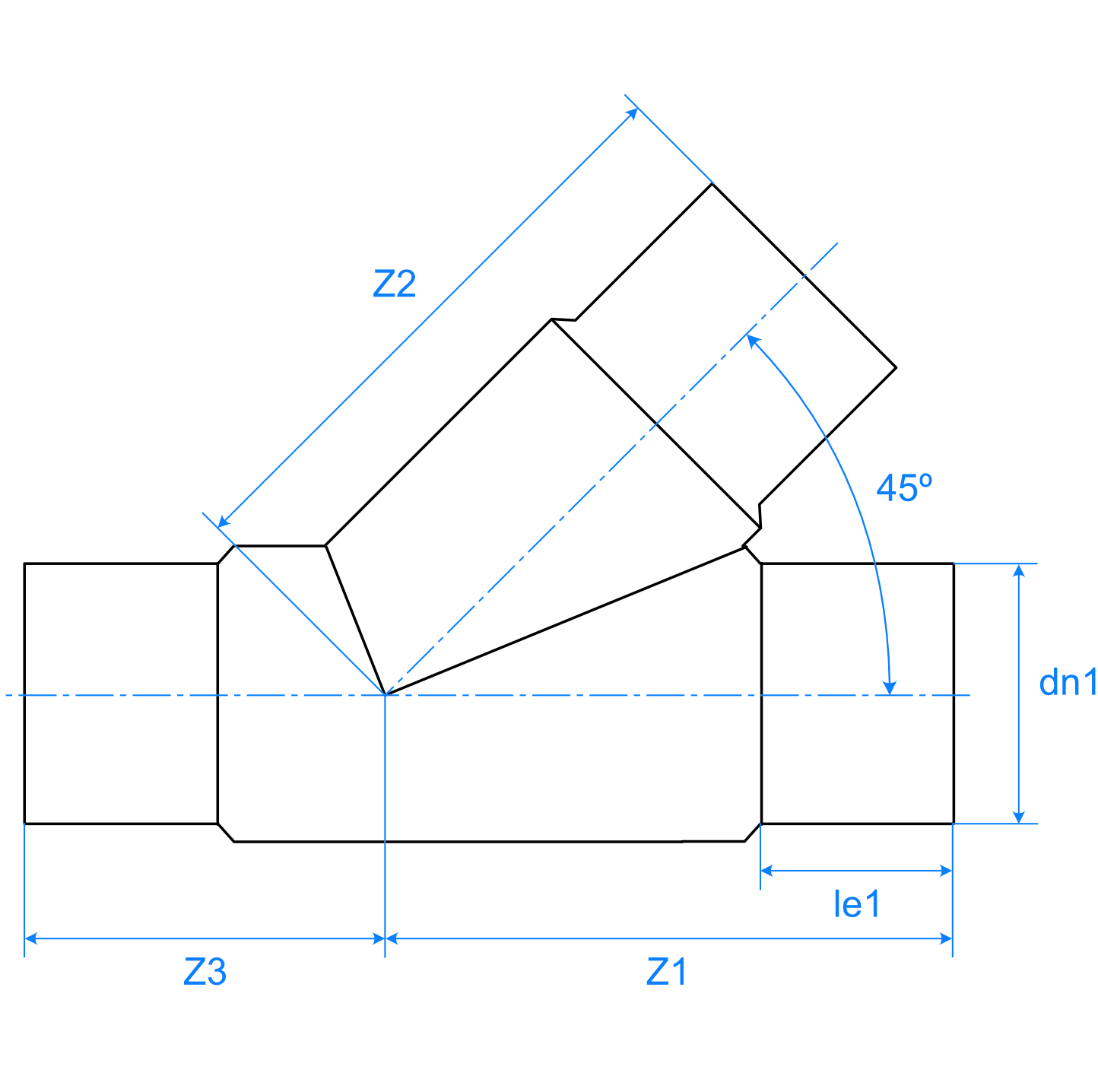

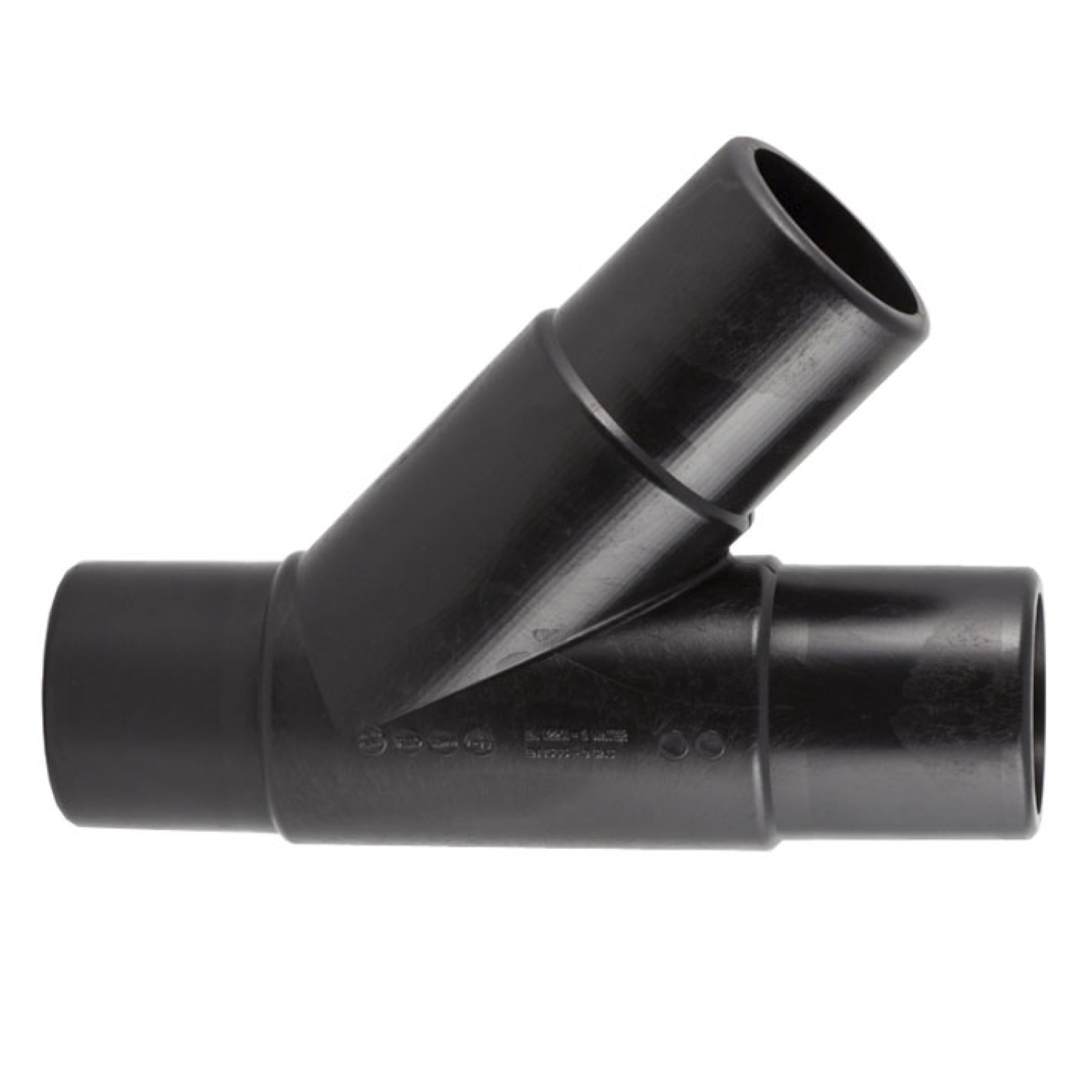

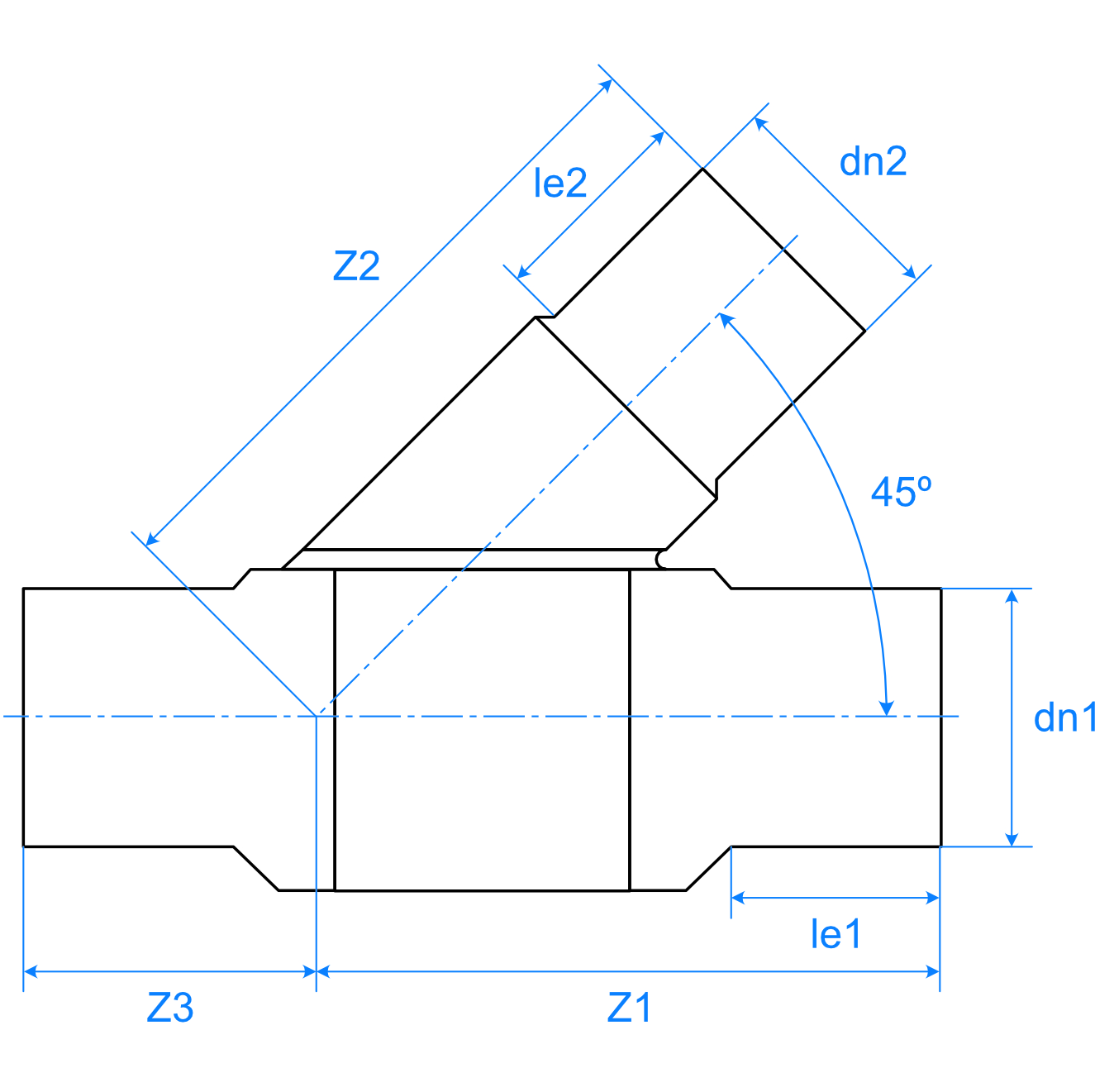

45º Branch Reducing Fabricated Tee

Fabricated angled Branch Tee's have a centric intake for merging multiple rising main flows into a single rising main. The key features of the design are to minimise turbulence and maintain flow velocities with minimal head loss through the fitting.

These fittings are fully pressure rated by using increased wall thickness on the angles offtake to overcome de-ration of the angled intake weld. Manufactured by machining PE100+ hollow bar into a fitting body and welding on spigot ends in according with BS ISO 21307. Fabricated Tee's feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability.

Larger sizes up to dn1200 with offtakes from dn180 to dn800 are available in PN10 / SDR 17 rating. Dimensions avaialble on request.
SDR17 PN10 SDR11 PN16 dn1 dn2 L le1 le2 Z1 Z2 Z3 Availability in Hong Kong
P5314.43.250063 P5316.43.250063 250 63 681 200 70 488 372 193 12-14 weeks
P5314.43.250090 P5316.43.250090 250 90 731 200 80 513 404 218 12-14 weeks
P5314.43.250125 P5316.43.250125 250 125 775 200 100 535 469 240 12-14 weeks
P5314.43.250180 P5316.43.250180 250 180 871 200 110 588 516 283 12-14 weeks
P5314.43.250250 P5316.43.250250 250 250 981 200 200 643 726 338 12-14 weeks
P5314.43.280063 P5316.43.280063 280 63 681 200 70 503 393 178 12-14 weeks
P5314.43.280090 P5316.43.280090 280 90 731 200 80 528 425 203 12-14 weeks
P5314.43.280125 P5316.43.280125 280 125 775 200 100 550 490 225 12-14 weeks
P5314.43.280180 P5316.43.280180 280 180 871 200 110 603 537 268 12-14 weeks
P5314.43.280250 P5316.43.280250 280 250 981 200 200 658 747 323 12-14 weeks
P5314.43.315090 P5316.43.315090 315 90 770 200 80 565 450 205 12-14 weeks
P5314.43.315125 P5316.43.315125 315 125 816 200 100 588 515 228 12-14 weeks
P5314.43.315180 P5316.43.315180 315 180 910 200 110 640 562 270 12-14 weeks
P5314.43.315250 P5316.43.315250 315 250 1020 200 200 695 772 325 12-14 weeks
P5314.43.315315 P5316.43.315315 315 315 1130 200 200 750 835 380 12-14 weeks
P5314.43.355090 P5316.43.355090 355 90 770 200 80 585 478 185 12-14 weeks
P5314.43.355125 P5316.43.355125 355 125 816 200 100 608 543 208 12-14 weeks
P5314.43.355180 P5316.43.355180 355 180 910 200 110 660 591 250 12-14 weeks
P5314.43.355250 P5316.43.355250 355 250 1070 200 200 765 836 305 12-14 weeks
P5314.43.355315 P5316.43.355315 355 315 1180 200 200 820 898 360 12-14 weeks
P5314.43.355355 P5316.43.355355 355 355 1220 200 200 830 892 390 12-14 weeks
P5314.43.450125 P5316.43.450125 450 125 1015 300 100 755 611 260 12-14 weeks
P5314.43.450180 P5316.43.450180 450 180 1111 300 110 808 658 303 12-14 weeks
P5314.43.450250 P5316.43.450250 450 250 1221 300 200 863 868 358 12-14 weeks
P5314.43.450315 P5316.43.450315 450 315 1331 300 200 918 930 413 12-14 weeks
P5314.43.450355 P5316.43.450355 450 355 1421 300 200 978 959 443 12-14 weeks
P5314.43.450450 P5316.43.450450 450 450 1561 300 300 1048 1159 513 12-14 weeks
P5314.43.500125 P5316.43.500125 500 125 1015 300 100 780 646 235 12-14 weeks
P5314.43.500180 P5316.43.500180 500 180 1111 300 110 833 693 278 12-14 weeks
P5314.43.500250 P5316.43.500250 500 250 1221 300 200 888 903 333 12-14 weeks
P5314.43.500315 P5316.43.500315 500 315 1331 300 200 943 966 388 12-14 weeks
P5314.43.500355 P5316.43.500355 500 355 1441 300 200 1023 1008 418 12-14 weeks
P5314.43.500450 P5316.43.500450 500 450 1581 300 300 1093 1208 488 12-14 weeks
P5314.43.500500 P5316.43.500500 500 500 1671 300 300 1138 1248 533 12-14 weeks
P5314.43.560180 P5316.43.560180 560 180 1111 300 110 863 735 248 12-14 weeks
P5314.43.560250 P5316.43.560250 560 250 1221 300 200 918 945 303 12-14 weeks
P5314.43.560315 P5316.43.560315 560 315 1331 300 200 973 1008 358 12-14 weeks
P5314.43.560355 P5316.43.560355 560 355 1441 300 200 1053 1051 388 12-14 weeks
P5314.43.560450 P5316.43.560450 560 450 1546 300 300 1123 1196 423 12-14 weeks
P5314.43.560500 P5316.43.560500 560 500 1671 300 300 1168 1291 503 12-14 weeks
P5314.43.560560 P5316.43.560560 560 560 1751 300 300 1198 1342 553 12-14 weeks
P5314.43.630180 P5316.43.630180 630 180 1111 300 110 898 785 213 12-14 weeks
P5314.43.630250 P5316.43.630250 630 250 1221 300 200 953 995 268 12-14 weeks
P5314.43.630315 P5316.43.630315 630 315 1331 300 200 1008 1057 323 12-14 weeks
P5314.43.630355 P5316.43.630355 630 355 1421 300 200 1068 1086 353 12-14 weeks
P5314.43.630450 P5316.43.630450 630 450 1581 300 300 1158 1300 423 12-14 weeks
P5314.43.630500 P5316.43.630500 630 500 1671 300 300 1203 1340 468 12-14 weeks
P5314.43.630560 P5316.43.630560 630 560 1771 300 300 1253 1405 518 12-14 weeks
P5314.43.630630 P5316.43.630630 630 630 1861 300 300 1288 1451 573 12-14 weeks
