End Caps

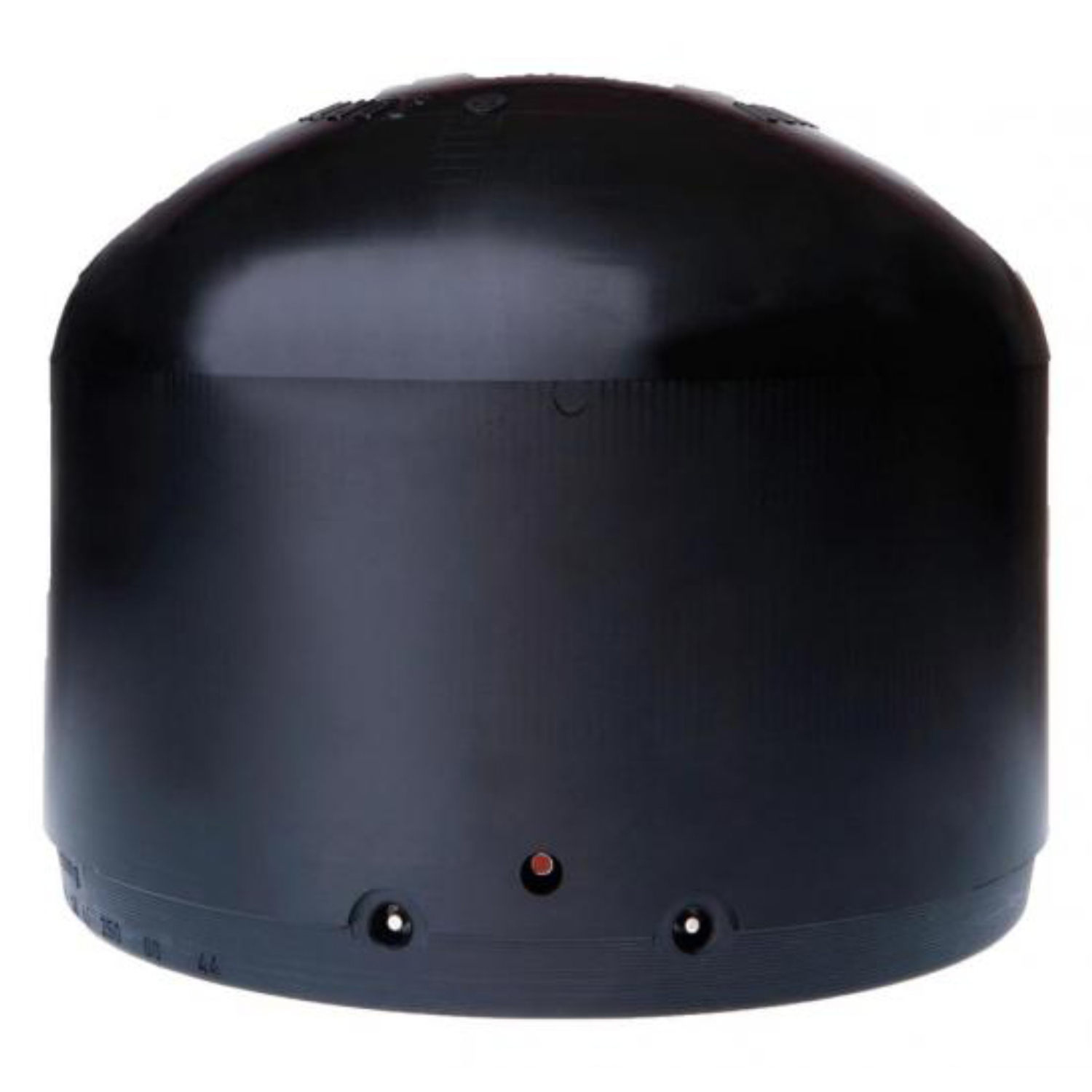

Black Electrofusion End Cap / MV / EF / PN16 / SDR11

Friatec's PE100 MV Injection moulded end caps for end of line termination are suitable for fusing pipes from SDR11 to SDR17.6  MV end caps feature large insertion depth for pipe stability during fusion and extra wide fusion and cold zones for maximum melt containment. Exposed heating coils for direct heat transmission to the pipe and a small annular gap to ensure optimum joining pressure in the fusion zone.  A visual pop up fusion indicator confirms weld pressure and traceability bar codes are included for recording batch GIS and BIM records for each coupler installed.  All couplers are sealed in individual plastic bags for protection on site.

NOTE: The pipe or spigot ends and the coupler must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

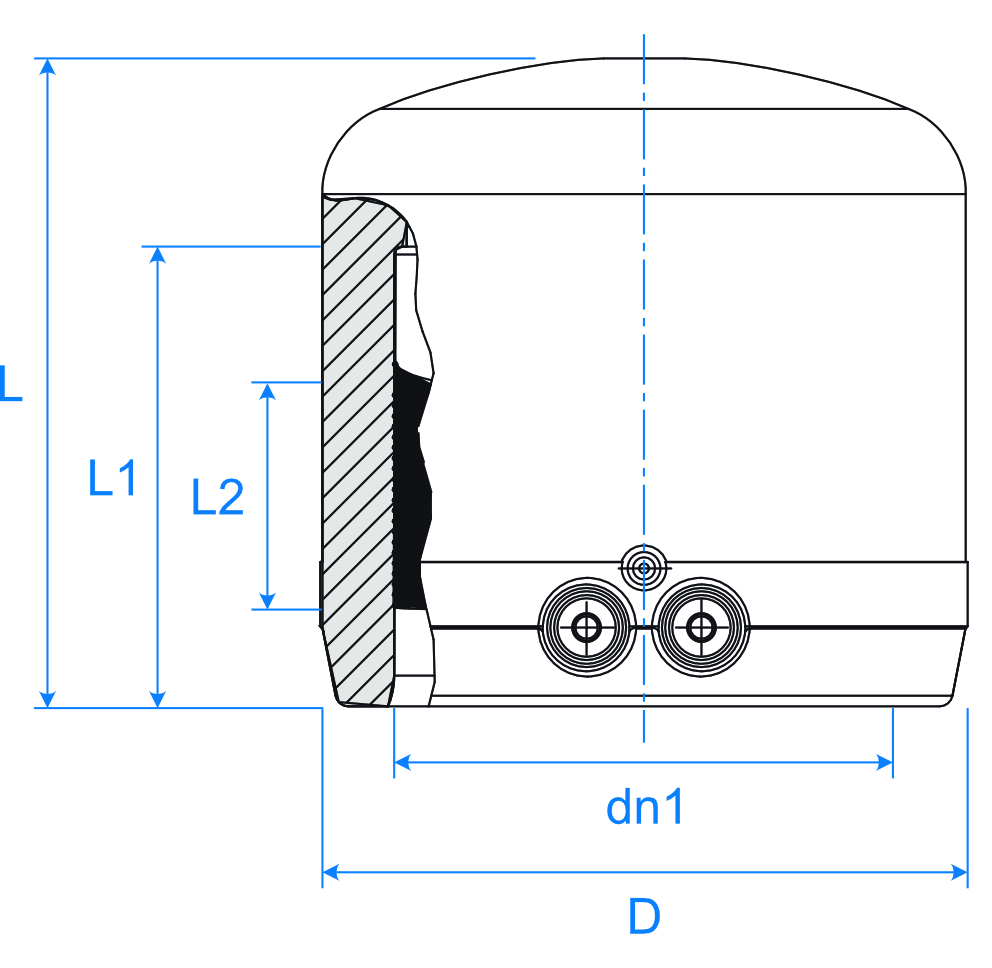

Product Code dn1 D L L1 L2 Availability in Hong Kong
P3316.140.025 25 35 65 41 22 Ex-Stock
P3316.140.032 32 44 70 44 24 Ex-Stock
P3316.140.050 50 67 80 55 30 Ex-Stock
P3316.140.063 63 84 88 63 31 Ex-Stock
P3316.140.090 90 118 114 79 40 Ex-Stock
P3316.140.125 125 163 135 87 42 Ex-Stock
P3316.140.180 180 225 195 100 50 Ex-Stock

Blue Spigot End Caps / PN16 / SDR11

Mill-Pro PE100 RC Injection moulded spigot end caps feature long spigots for electrofusion or butt fusion joining. Mill-Pro fittings feature hard moulded brand, batch numbers for compliance checking and 1D and 2D bar code stickers for complete product traceability. All elbows are sealed in individual plastic bags for protection on site. Spigot fittings are joined by Electrofusion Couplers or Butt Fusion.

NOTE: The pipe and spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

Product code dn le Z Availability in Hong Kong
P5826.140.032 32 44 53 Ex-Stock
P5826.140.050 50 56 68 Ex-Stock
P5826.140.063 63 65 78 Ex-Stock
P5826.140.090 90 79 95 Ex-Stock
P5826.140.125 125 88 111 Ex-Stock
P5826.140.180 180 105 140 Ex-Stock
P5826.140.250 250 130 160 Ex-Stock
P5826.140.315 315 150 180 Ex-Stock

Note:

Blue moulded end caps may not always be in stock and may be subject to longer lead times. Alternative options in black moulded or fabricated can be provided.

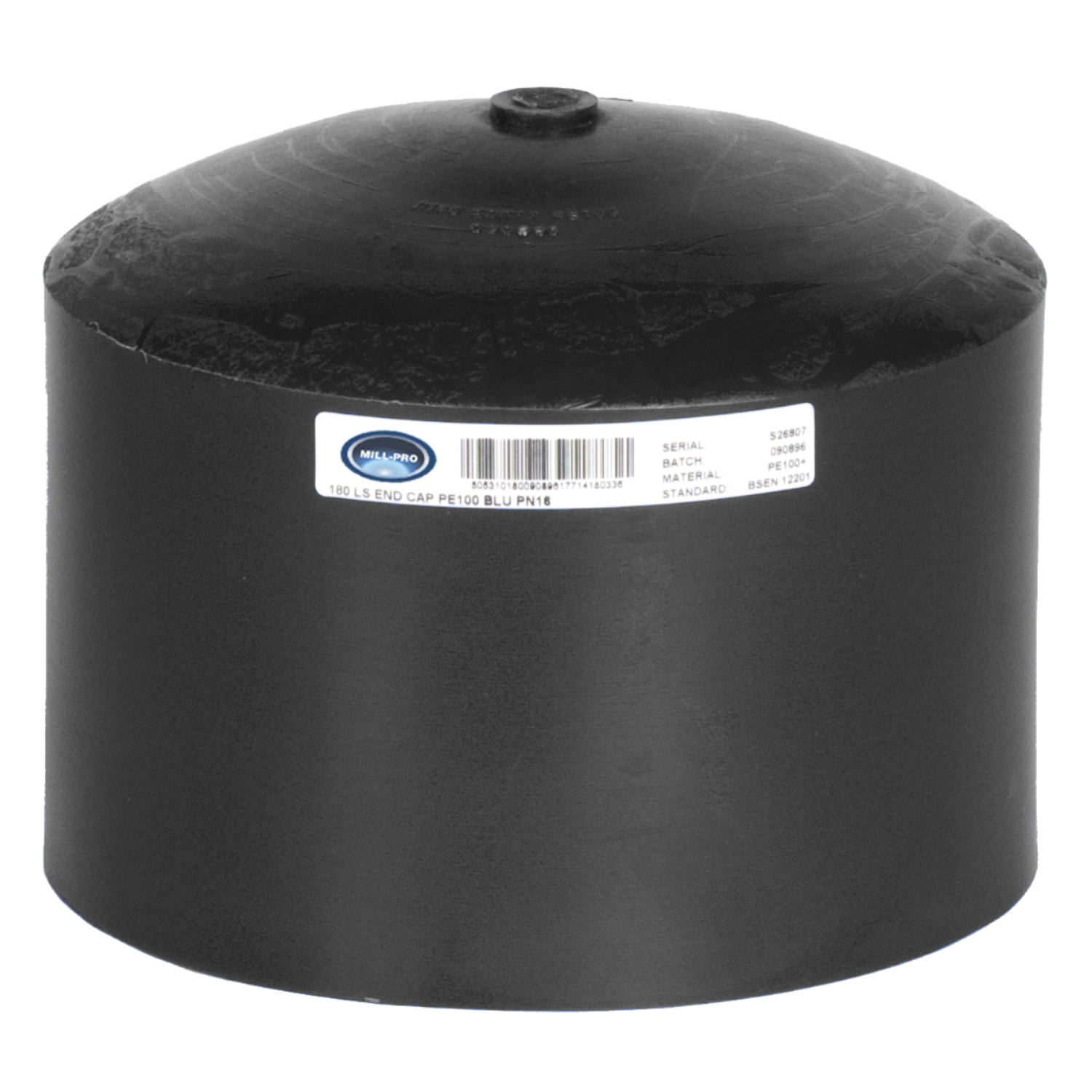

Black End Cap / SP / PN16 / SDR11

Mill-Pro's injection moulded enda caps are manufactured from PE100+ compound according to BS EN 12201-3. They feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability. All bends are sealed in individual plastic bags for protection on site.

NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

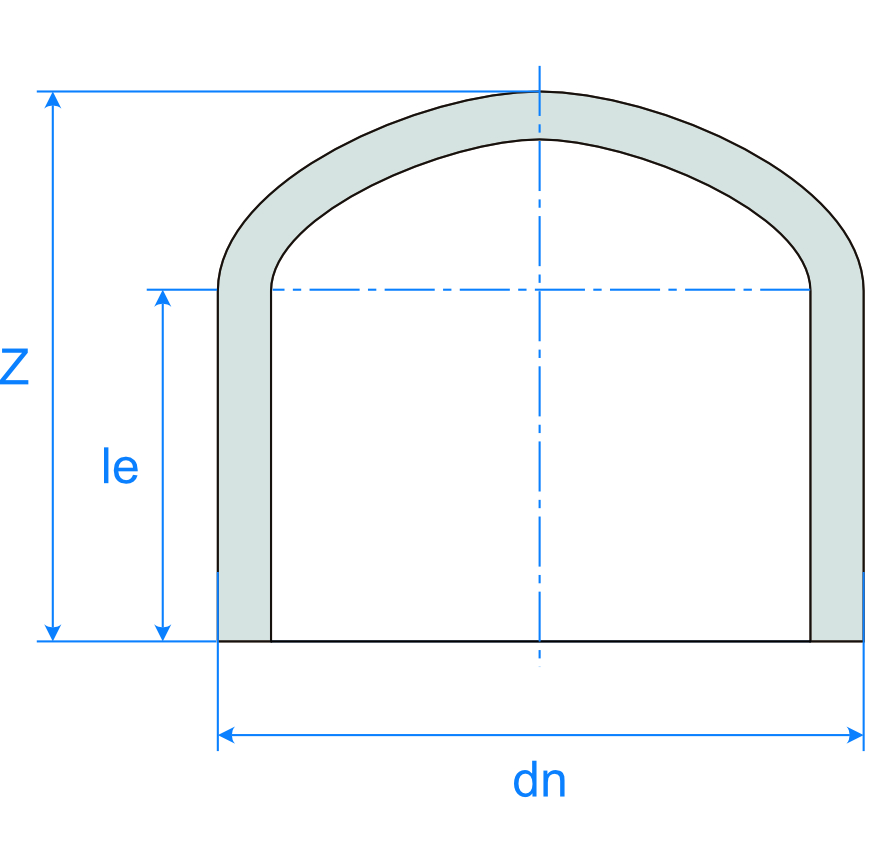

Product Code dn le Z Availability in Hong Kong
P5316.140.355 355 220 255 Ex-Stock
P5316.140.450 450 220 265 Ex-Stock
P5316.140.500 500 220 270 Ex-Stock

Note: For larger sizes typically a flange adaptor and blank flange are used for end of line termination.
