Relining Couplers
Relining and Rehabilitation Couplers
The jointing of special custom size PE pipes can be challenging in Hong Kong where there is no space for butt fusion equipment in the trench. Designers considering special size pipes for rehabilitation are encouraged to select a custom PE pipe size that is near to their optimum size but also in the size range of special size electrofusion couplers to facilitate joining.

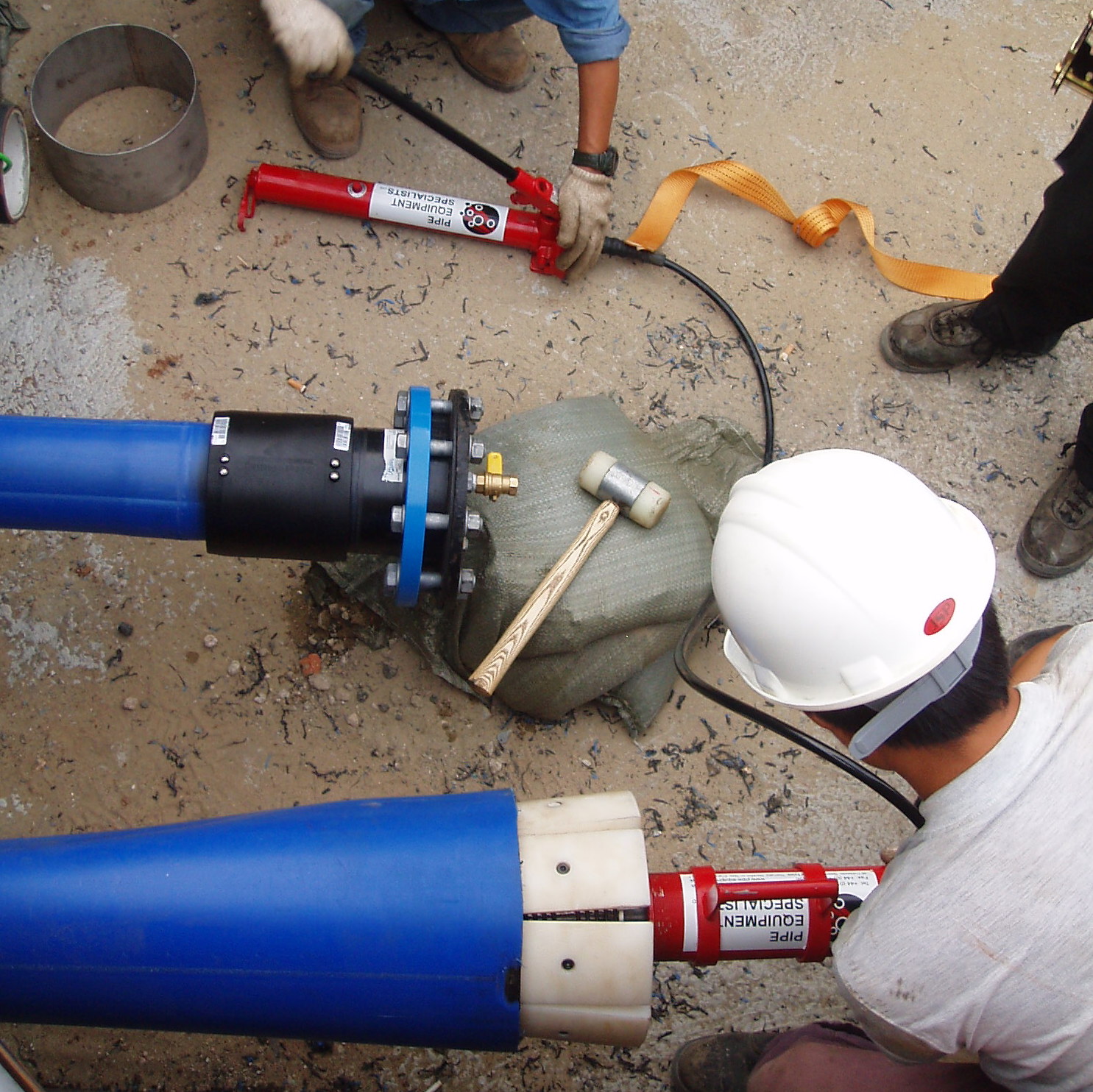

Non-standard pipe sizes are often expanded at the ends and held at the correct electrofusion coupler size using an internal stainless steel ring, as seen in the image below. Mill-Pro offers a wide range of specialty PE electrofusion couplers designed to accommodate non-standard PE pipe sizes. In addition, specific custom size couplers can be manufactured to order where there is sufficient quantity. Contact us for more information about rehabilitation products.
Relining Slideover Coupler / REM / SDR17 / PN10
Stepped couplers are designed for connecting custom size relining PE pipes to standard OD PE pipes. Custom size PE pipes are manufactured to special outside diameters in order to fit inside existing DI or steel host pipes. Featuring all the same technical benefits that UB couplers have. Friatec can custom manufacture relining couplers to accommodate most small steps found between custom relining pipe sizes and standard PE OD’s. Minimum Order Quantities (MOQ) will apply, contact Mill-Pro for custom coupler requirements.
Product Code |
dn1 |
dn2 |
D |
L |
Availability in Hong Kong |
P3314.10.110100 |
110 |
100 |
127 |
150 |
12 weeks |
P3314.10.160150 |
160 |
150 |
180 |
180 |
12 weeks |
P3314.10.315300 |
315 |
300 |
355 |
285 |
12 weeks |
Special Size Couplers / MBI - UBI / SDR11 / PN16*
Friatec MBI and UBI are special size couplers which provide unique non-standard size options that can be used to line up with non-standard custom size PE pipes for rehabilitation purposes.
* These PE100 couplers have been re-rated to PN16 using the ISO / EN safety factor 1.25x
MBI and UBI couplers feature all the same design benefits that MB and UB couplers have.
dn | D | L | L1 | L2 | Z | Availability in Hong Kong |
89 | 117 | 139 | 70 | 36 | 2 | Contact Us |
115 | 157 | 160 | 79 | 43 | 2 | Contact Us |
122 | 144 | 162 | 81 | 45 | 2 | Contact Us |
168 | 217 | 203 | 101 | 59 | 2 | Contact Us |
176 | 225 | 211 | 106 | 65 | - | Contact Us |
219 | 280 | 240 | 120 | 76 | - | Contact Us |
230 | 280 | 240 | 120 | 76 | - | Contact Us |
273 | 355 | 300 | 134 | 80 | - | Contact Us |
282 | 355 | 280 | 140 | 84 | - | Contact Us |
324 | 400 | 285 | 143 | 69 | - | Contact Us |
335 | 400 | 280 | 140 | 66 | - | Contact Us |
388 | 458 | 290 | 145 | 89 | - | Contact Us |
406 | 500 | 320 | 160 | 96 | - | Contact Us |
442 | 560 | 290 | 145 | 87 | - | Contact Us |
457 | 560 | 341 | 171 | 85 | - | Contact Us |
495 | 560 | 290 | 145 | 87 | - | Contact Us |
507 | 630 | 360 | 180 | 92 | - | Contact Us |
549 | 630 | 290 | 145 | 63 | - | Contact Us |
558 | 630 | 370 | 185 | 84 | - | Contact Us |
610 | 710 | 400 | 200 | 105 | - | Contact Us |
654 | 813 | 420 | 211 | 122 | - | Contact Us |
762 | 941 | 500 | 250 | 137 | - | Contact Us |
MBI Couplers
UBI Couplers
Special Size Couplers / AMI / SDR17 / PN10*
Friatec AMI provides a range of non-metric electrofusion couplers, which provide unique non-standard size options that can be used to line up with non-standard custom size PE pipes for rehabilitation.
* These PE100 couplers have been re-rated to PN10 using the ISO / EN safety factor 1.25x
AMI couplers feature all the same design benefits found with AM couplers.
dn | L | L1 | Availability in Hong Kong |
219 | 200 | 100 | Contact us |
273 | 211 | 106 | Contact us |
324 | 220 | 110 | Contact us |
406 | 220 | 110 | Contact us |
