Black Eccentric
Black Fabricated Eccentric Reducers / PN16-10 / SDR17-11
Mill-Pro PE100+ black spigot eccentric reducers are either injection moulded or machined from extruded hollow bar with factory butt-welded spigots for electrofusion joining in larger sizes. Standard sizes are shown below, however, fabricated reducers can be any size and this allows for significant reductions to be made in any size up to dn2000. All reducers feature 1D and 2D bar code stickers for complete product traceability and are sealed in individual plastic bags for protection on site.
Listed below are standard reductions, however, we manufacture reductions in any combination of dn1 & dn2.
| Any reducer can be fabricated. For large step changes and special one-off reducers, contact us. | |||||||

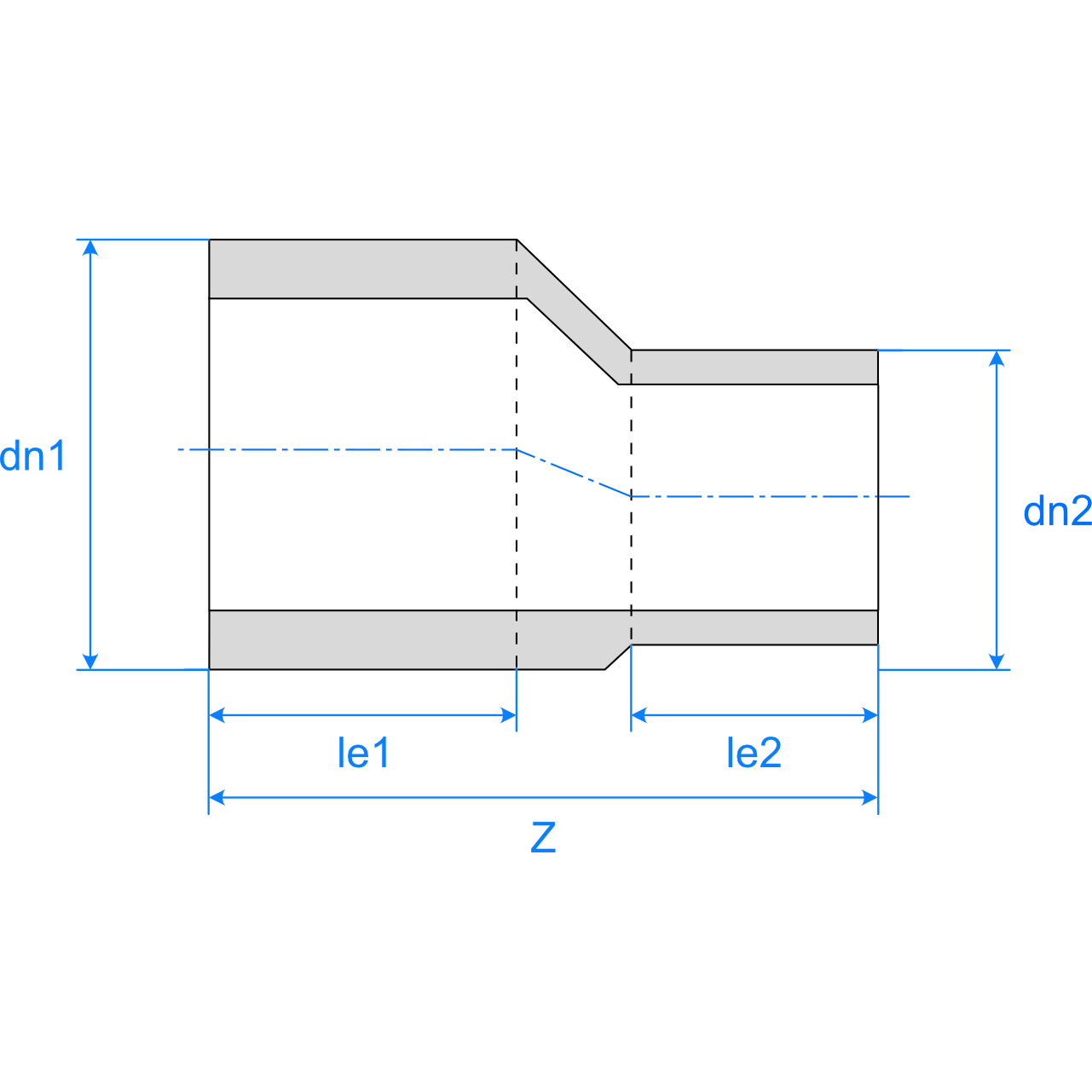

| PN10 SDR17 | PN16 SDR11 | dn1 | dn2 | le1 | le2 | Z | Availability in Hong Kong |
| P5314.12.110090 | P5316.12.110090 | 110 | 90 | 150 | 150 | 320 | 4-6 weeks |
| P5314.12.200160 | P5316.12.200160 | 200 | 160 | 200 | 150 | 390 | 4-6 weeks |
| P5314.12.225200 | P5316.12.225200 | 225 | 200 | 200 | 200 | 425 | 4-6 weeks |
| P5314.12.250200 | P5316.12.250200 | 250 | 200 | 200 | 200 | 450 | 4-6 weeks |
| P5314.12.250225 | P5316.12.250225 | 250 | 225 | 200 | 200 | 425 | 4-6 weeks |
| P5314.12.280225 | P5316.12.280225 | 280 | 225 | 200 | 200 | 455 | 4-6 weeks |
| P5314.12.280250 | P5316.12.280250 | 280 | 250 | 200 | 200 | 430 | 4-6 weeks |
| P5314.12.315250 | P5316.12.315250 | 315 | 250 | 200 | 200 | 465 | 4-6 weeks |
| P5314.12.315280 | P5316.12.315280 | 315 | 280 | 200 | 200 | 435 | 4-6 weeks |
| P5314.12.355280 | P5316.12.355280 | 355 | 280 | 300 | 200 | 575 | 4-6 weeks |
| P5314.12.355315 | P5316.12.355315 | 355 | 315 | 300 | 200 | 540 | 4-6 weeks |
| P5314.12.400315 | P5316.12.400315 | 400 | 315 | 300 | 200 | 585 | 4-6 weeks |
| P5314.12.400355 | P5316.12.400355 | 400 | 355 | 300 | 300 | 645 | 4-6 weeks |
| P5314.12.450355 | P5316.12.450355 | 450 | 355 | 400 | 300 | 795 | 4-6 weeks |
| P5314.12.450400 | P5316.12.450400 | 450 | 400 | 400 | 300 | 750 | 4-6 weeks |
| P5314.12.500400 | P5316.12.500400 | 500 | 400 | 400 | 300 | 800 | 4-6 weeks |
| P5314.12.500450 | P5316.12.500450 | 500 | 450 | 400 | 400 | 850 | 4-6 weeks |
| P5314.12.560450 | P5316.12.560450 | 560 | 450 | 600 | 400 | 1110 | 4-6 weeks |
| P5314.12.560500 | P5316.12.560500 | 560 | 500 | 600 | 400 | 1060 | 4-6 weeks |
| P5314.12.630500 | P5316.12.630500 | 630 | 500 | 600 | 400 | 1130 | 4-6 weeks |
| P5314.12.630560 | P5316.12.630560 | 630 | 560 | 600 | 600 | 1270 | 4-6 weeks |
