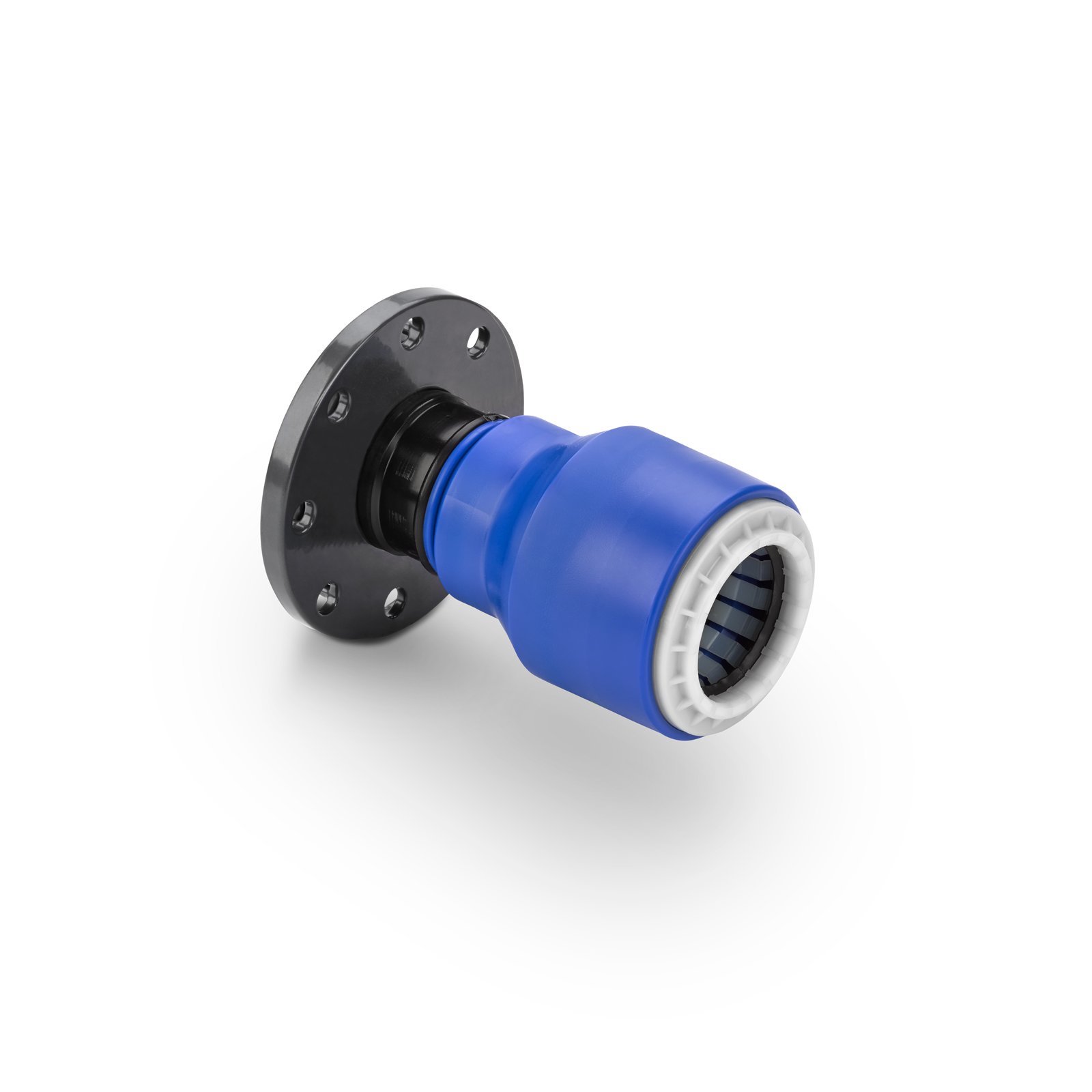

ReinoGrip Fittings

Reinert-Ritz offers large diameter push-fit solution for repairs on PE pipes where wet working conditions prevent typical PE connection methods.  The patented RinoGrip system incorporates an encapsulated integral flange meaning no ferrous materials are exposed to the environment, making it ideal for permanent emergency repairs and transition to other materials without risk of corrosion long term.

REINOGRIP can be rapidly installed in wet trenches, below water or even below sea level to connect or repair PE pipes underwater where fusion is not possible. ReinoGrip is fully pressure rated for SDR 11 / PN16 in sizes up to dn450 available on request.

A wider product range, including repair joiners and other fittings, are available.

RinoGrip Overview Brochure

RinoGrip Product Range

Mounting Instructions

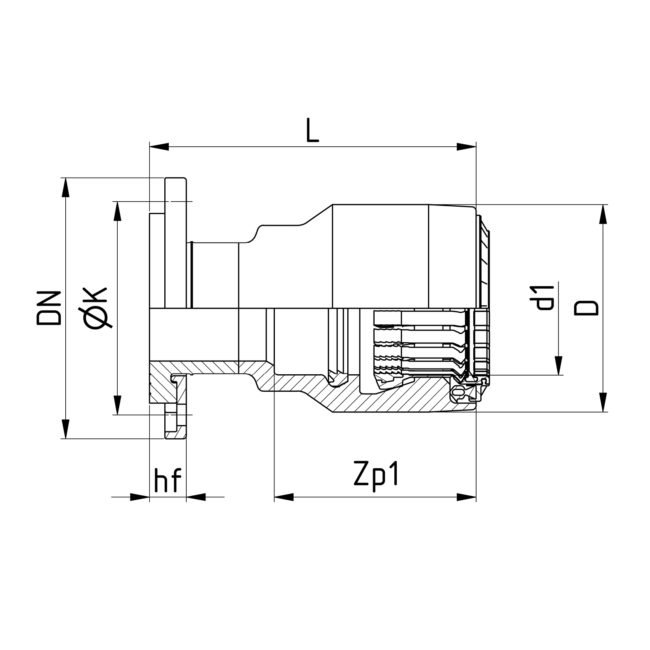

DN d1 zp1 ØK n x Ød Bolts hF* D L kg
80 90 140 160 8x18 M16 40 152 240 3.5
100 110 170 180 8x18 M16 43 175 275 4.7
Non-Std Size 125 172 180 8x18 M16 51 190 280 4.8
150 160 183 240 8x22 M20 57 234 297 9.6
Non-Std Size 180 211 240 8x22 M20 63 260 328 10.1
200 250 AoR
300 355 AoR
350 400 AoR
400 450 AoR

Note: 'AoR' Dimensions are available on request, please contact us
