Cleaning Eye Elbows

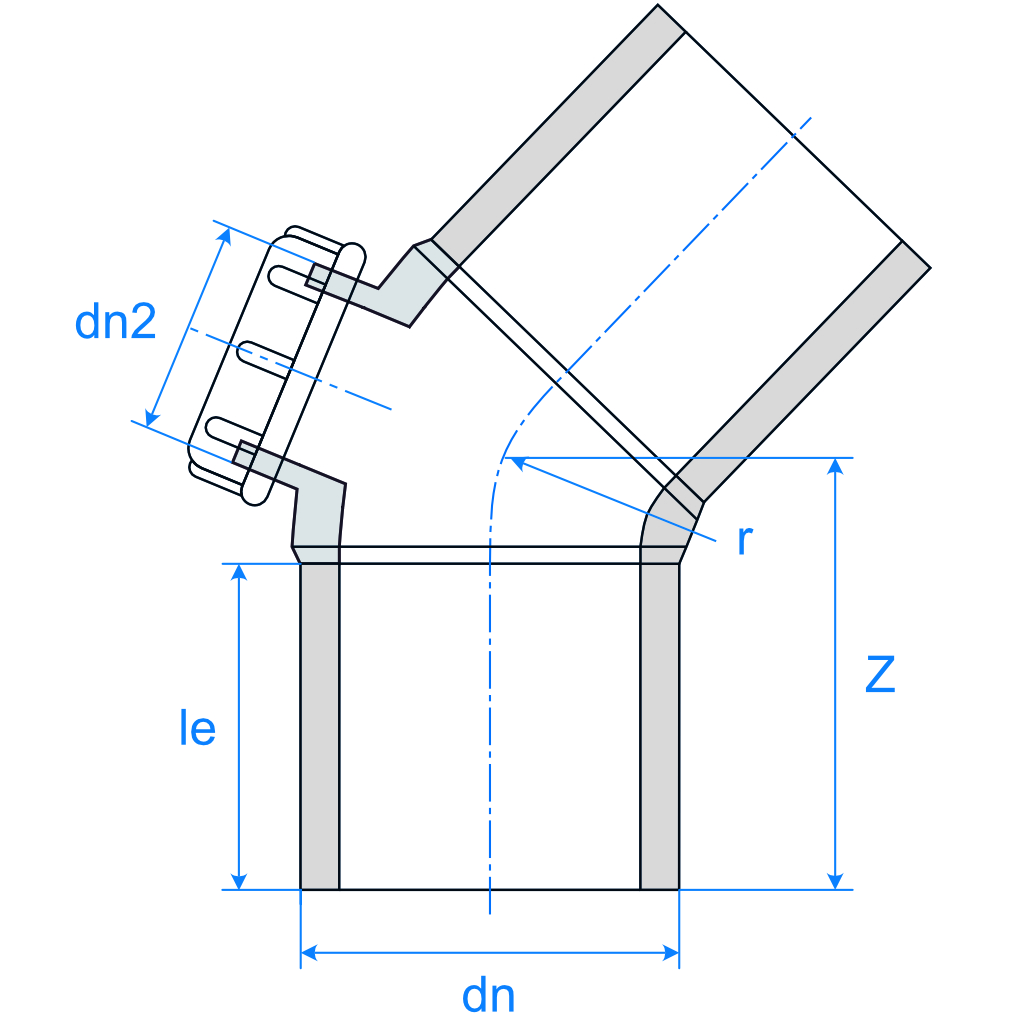

45º Moulded Cleaning Eye Elbows / LS / Black / PN10 / SDR17

PE100+ long spigot elbows with factory butt fusion welded PE inspection port with screw cap and sealing gasket

* Spigot lengths suitable for Mill-Pro supplied PN10 EF couplers but shorter than L2 in BSEN 12201-3 table 3
Product Code dn1 dn2 le r z Availability in Hong Kong
P531E.172.200110 200 110 112 88 147 8-10 weeks
P531E.172.225110 225 110 115 99 134 8-10 weeks
P531E.172.250110 250 110 129 110 162 8-10 weeks
P531E.172.280110 280 110 148 124 200 8-10 weeks
P531E.172.355110 355 110 *160 157 227 8-10 weeks
P531E.172.355160 355 160 *160 157 227 8-10 weeks
P531E.172.400110 400 110 *158 176 215 8-10 weeks
P531E.172.400160 400 160 *158 176 215 8-10 weeks
P531E.172.400200 400 200 *158 176 215 8-10 weeks
P531E.172.450110 450 110 *170 199 249 8-10 weeks
P531E.172.450160 450 160 *170 199 249 8-10 weeks
P531E.172.450200 450 200 *170 199 249 8-10 weeks
P531E.172.500110 500 110 *205 221 272 8-10 weeks
P531E.172.500160 500 160 *205 221 272 8-10 weeks
P531E.172.500200 500 200 *205 221 272 8-10 weeks
P531E.172.560110 560 110 *200 247 279 8-10 weeks
P531E.172.560160 560 160 *200 247 279 8-10 weeks
P531E.172.560200 560 200 *200 247 279 8-10 weeks
P531E.172.630110 630 110 *220 278 317 8-10 weeks
P531E.172.630160 630 160 *220 278 317 8-10 weeks
P531E.172.630200 630 200 *220 278 317 8-10 weeks

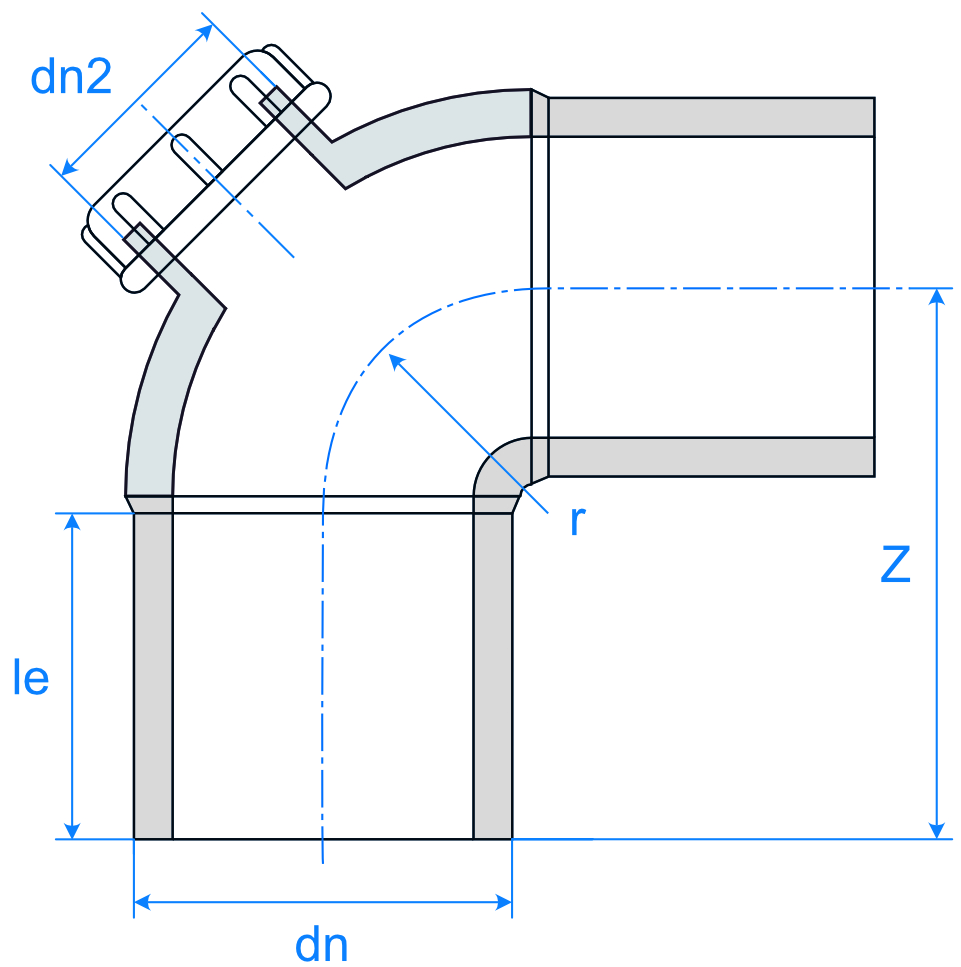

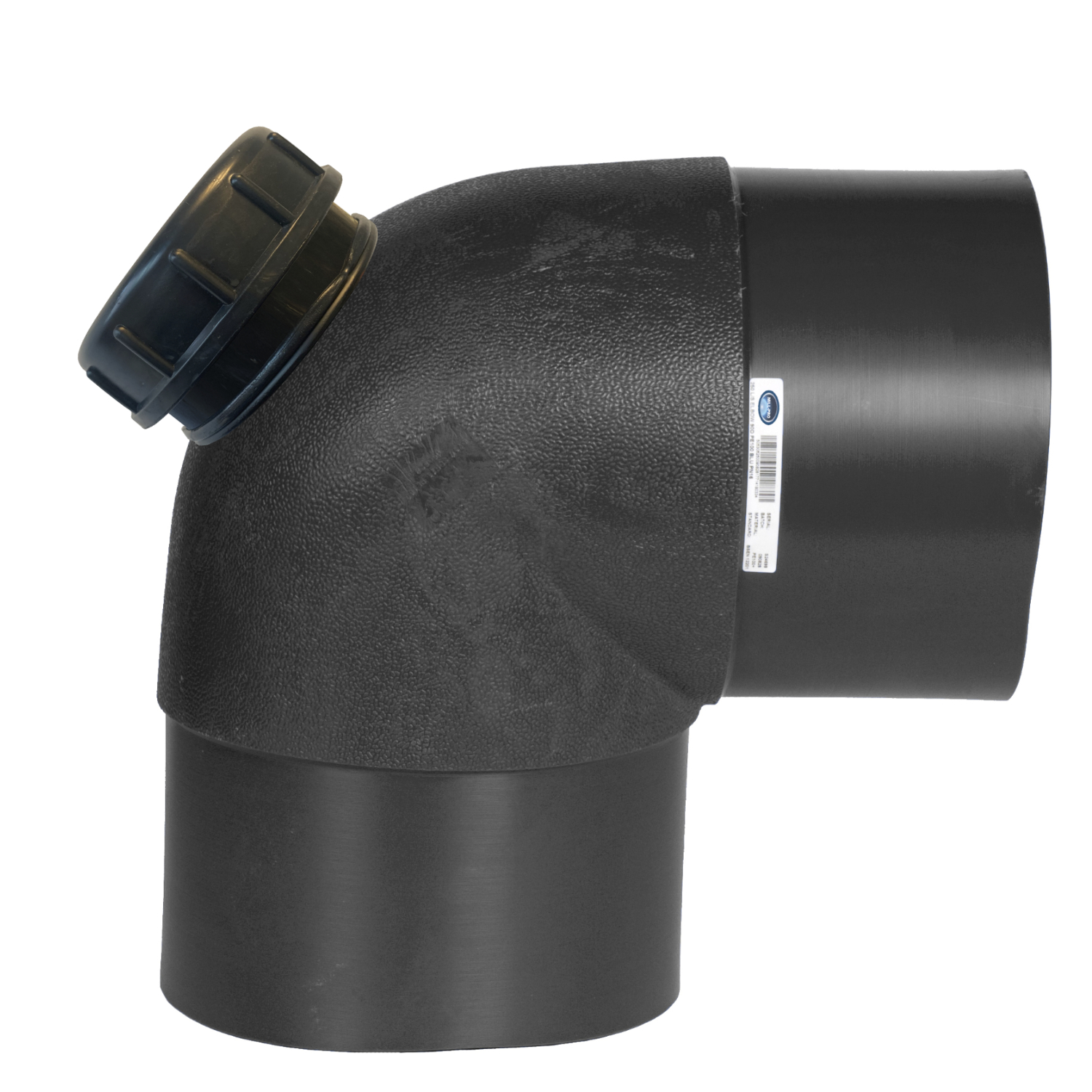

90º Moulded Cleaning Eye Elbows / LS / Black / PN10 / SDR17

90┬║ PE100+ long spigot elbows with factory butt fusion welded PE inspection port with screw cap and sealing gasket

* Spigot lengths suitable for Mill-Pro supplied PN10 EF couplers but shorter than L2 in BSEN 12201-3 table 3
Product Code dn dn2 le r z Availability in Hong Kong
P531E.173.200110 200 110 125 88 239 8-10 weeks
P531E.173.225110 225 110 135 99 255 8-10 weeks
P531E.173.250110 250 110 130 110 265 8-10 weeks
P531E.173.280110 280 110 *135 124 282 8-10 weeks
P531E.173.355110 355 110 *155 157 365 8-10 weeks
P531E.173.355160 355 160 *155 157 365 8-10 weeks
P531E.173.450110 400 110 *145 176 378 8-10 weeks
P531E.173.450160 400 160 *145 176 378 8-10 weeks
P531E.173.450200 400 200 *145 176 378 8-10 weeks
P531E.173.500110 500 110 *210 221 460 8-10 weeks
P531E.173.500160 500 160 *210 221 460 8-10 weeks
P531E.173.500200 500 200 *210 221 460 8-10 weeks
P531E.173.560110 560 110 *210 247 505 8-10 weeks
P531E.173.560160 560 160 *210 247 505 8-10 weeks
P531E.173.560200 560 200 *210 247 505 8-10 weeks
P531E.173.630110 630 110 *210 278 544 8-10 weeks
P531E.173.630160 630 160 *210 278 544 8-10 weeks
P531E.173.630200 630 200 *210 278 544 8-10 weeks
