Polyethylene P-Traps

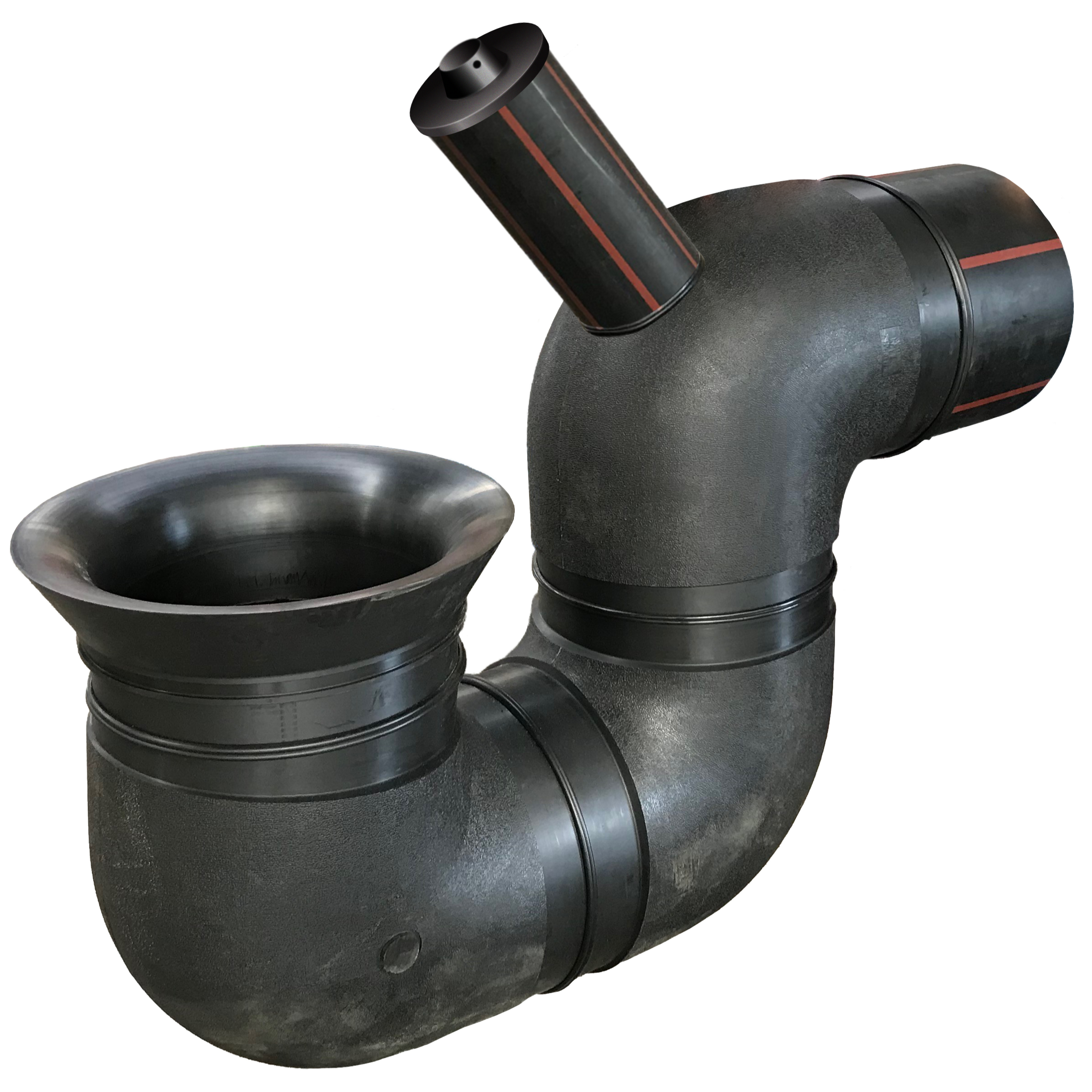

Mill-Pro P-Trap / SDR17 / PE100

Fabricated using Butt welding techniques (no extrusion welding is used) from SDR 17 pipe & fittings, this P-Trap features a smooth bell mouth entry, no internal weld beads, a rodding arm  with a PE plug and O-Rings, complying the the DSD requirements.

The entry bell mouth and exit spigot are fitted with Hydrophilic seals.

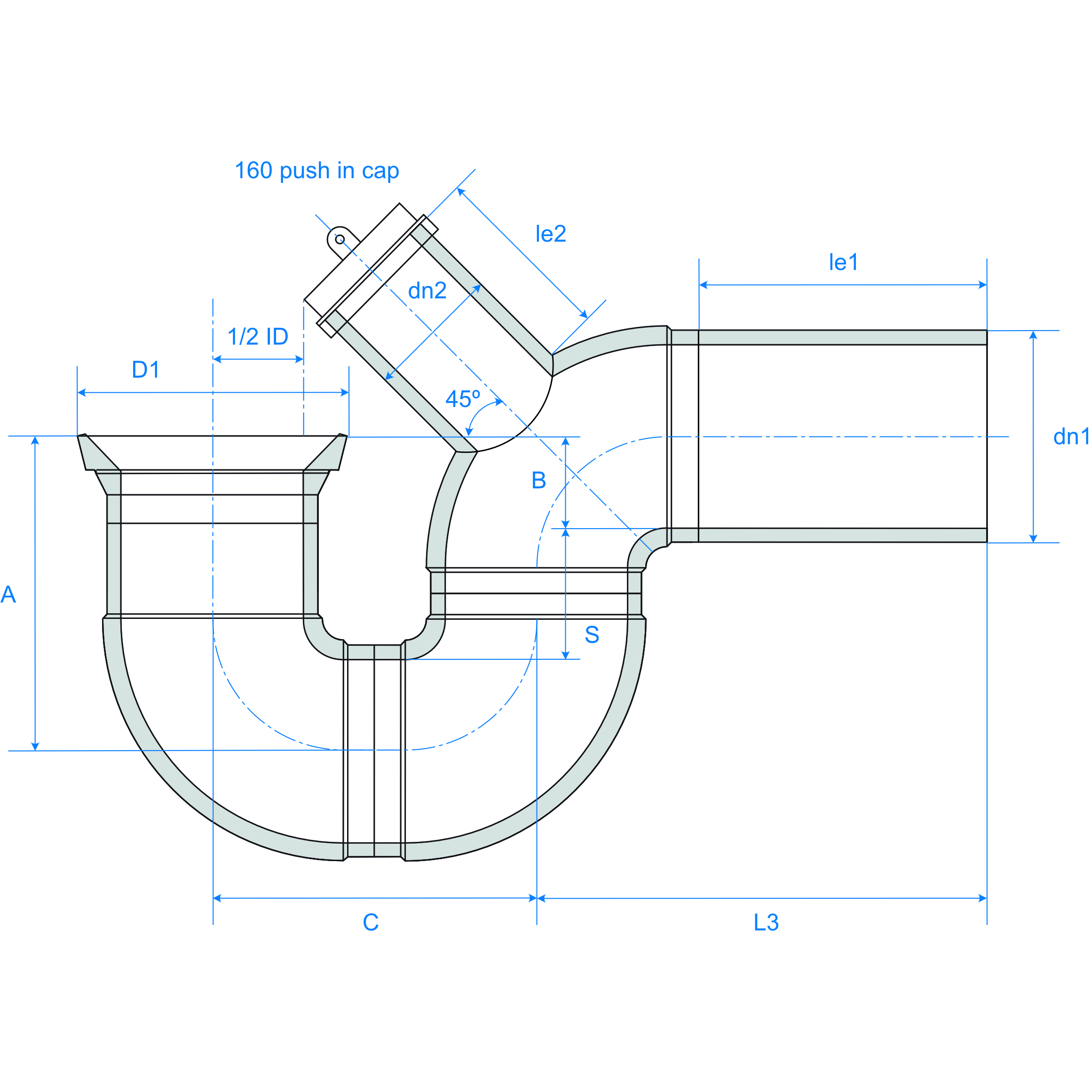

Product Code NB dn1 dn2 dn ID le1 le2 L3 A C B S D1 Availability in Hong Kong
P531E.071.160110 DN150 x 100 160 110 140 150 164 254 436 266 150 135 210 6-8 weeks
P531E.071.225110 DN200 x 100 225 110 197 150 255 296 505 374 150 143 295 6-8 weeks
P531E.071.250160 DN225 x 150 250 160 219 250 271 413 542 420 150 156 328 6-8 weeks
P531E.071.280160 DN250 x 150 280 160 245 250 302 432 584 462 150 170 368 6-8 weeks
P531E.071.355160 DN300 x 150 355 160 311 300 472 531 687 633 150 203 435 6-8 weeks
P531E.071.400160 DN350 x 150 400 160 351 300 533 560 735 706 150 208 490 6-8 weeks
P531E.071.450160 DN375 x 150 450 160 394 300 519 593 789 730 150 215 552 6-8 weeks
P531E.071.500160 DN450 x 150 500 160 438 350 571 675 943 800 150 322 613 6-8 weeks
P531E.071.560160 DN560 x 150 560 160 490 350 692 714 1007 926 150 330 687 6-8 weeks
P531E.071.630160 DN630 x 150 630 160 552 350 795 760 1113 1046 150 370 773 6-8 weeks

Other P-Trap dimensions?

Previous P-Trap designs for sizes 250 & 355 OD sizes have a prior design that is no longer manufactured, the dimensions for these p_traps are below Prior design dimensions
