Type A / Flexible

DSD Type A Flexible Manhole connection

Mill-Pro supplies the Friatec PE100 Electrofusion Sliding Manhole connector comprising of two components. The Electrofusion spigot (AEM) end that fuses to the pipe and a socket end (ASF) that is plastered into the manhole chamber wall.  The spigot features 2 x NBR sealing O-Rings and an expanding hydrophilic sealing ring between the sealing rings.

Each component is sold separately, BOTH are required to complete a joint.

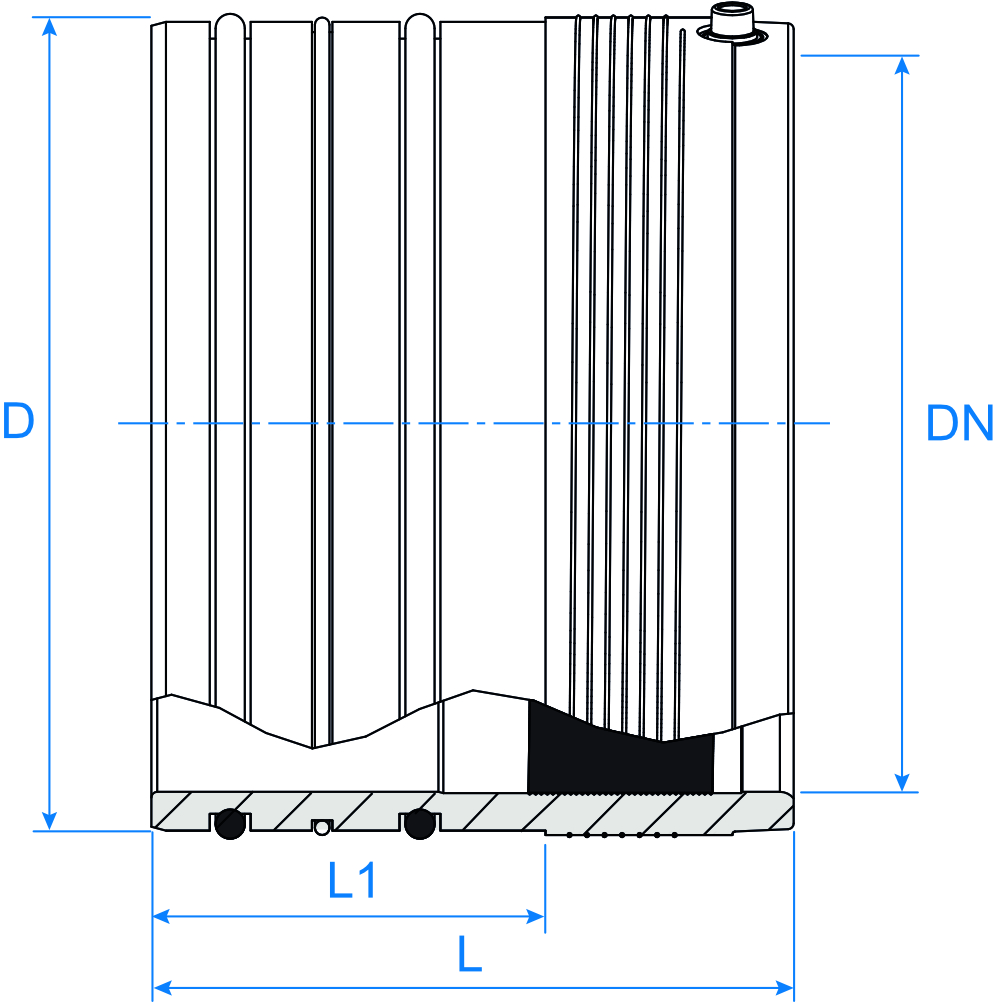

AEM / Electrofusion Insert Sleeve

Product Code Connection DN PE OD dn Spigot OD (D) L Insertion length (L1) Availability in Hong Kong
P3310.010.110 100 110 133 165 135 8-12 weeks
P3310.010.160 150 160 193 225 135 Ex-Stock
P3310.010.225 200 225 280 220 135 Ex-Stock
P3310.010.250 225 250 280 220 135 Ex-Stock
P3310.010.280 250 280 315 220 135 Ex-Stock
P3310.010.355 300 355 400 220 135 Ex-Stock
P3310.010.400 375 400 450 220 135 Ex-Stock
P3310.010.450 400 450 500 220 135 Ex-Stock
P3310.010.560 500 560 630 220 135 Ex-Stock
P3310.010.630 525 630 710 220 135 Ex-Stock

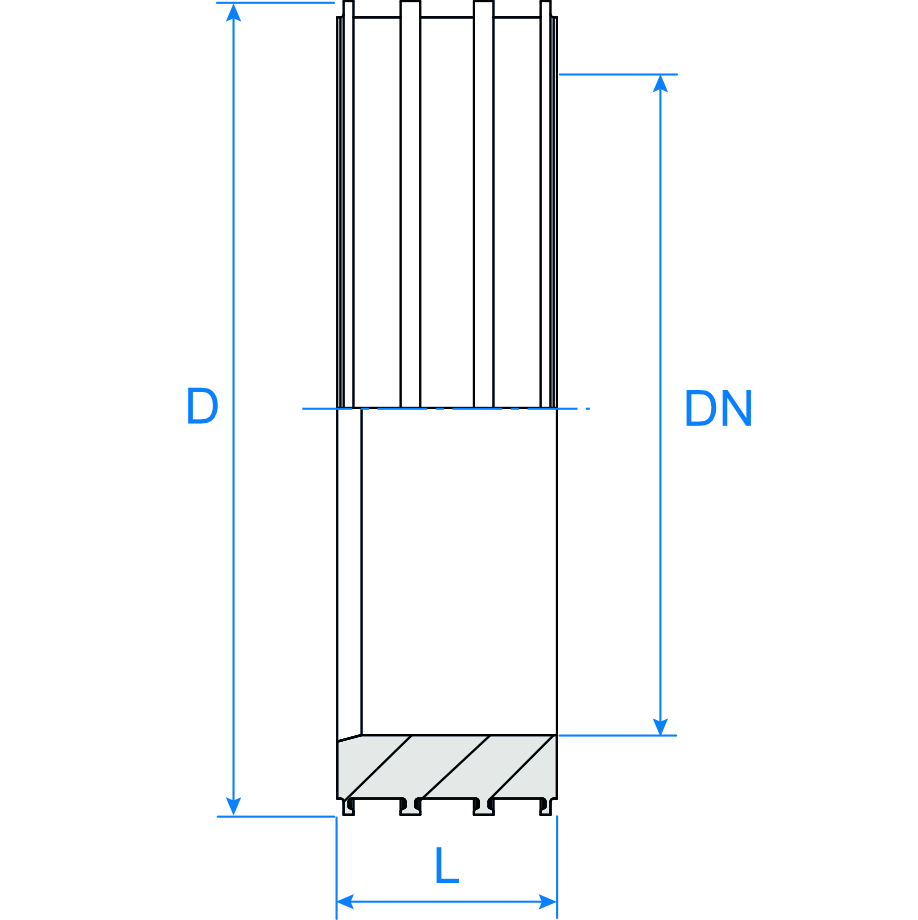

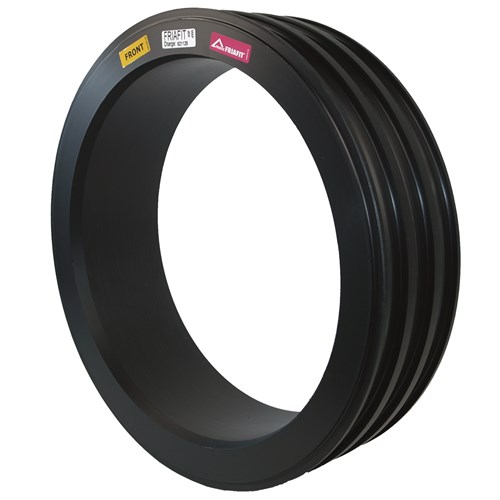

ASF - Cast in Chamber ring

Product Code Connection DN PE OD dn Socket Ring OD (D) Socket Ring  ID (d) L Availability in Hong Kong
P0310.011.110 100 110 200 134 135 8-12 weeks
P0310.011.160 150 160 250 190 135 Ex-Stock
P0310.T11.225-250 200/225 225 & 250 335 280 135 Ex-Stock
P0310.011.280 250 280 400 316 135 Ex-Stock
P0310.T11.355 300 355 470 402 135 Ex-Stock
P0310.011.400 375 400 560 452 135 Ex-Stock
P0310.011.450 400 450 630 502 135 Ex-Stock
P0310.011.560 500 560 710 628 135 Ex-Stock
P0310.011.630 525 630 800 713 135 Ex-Stock

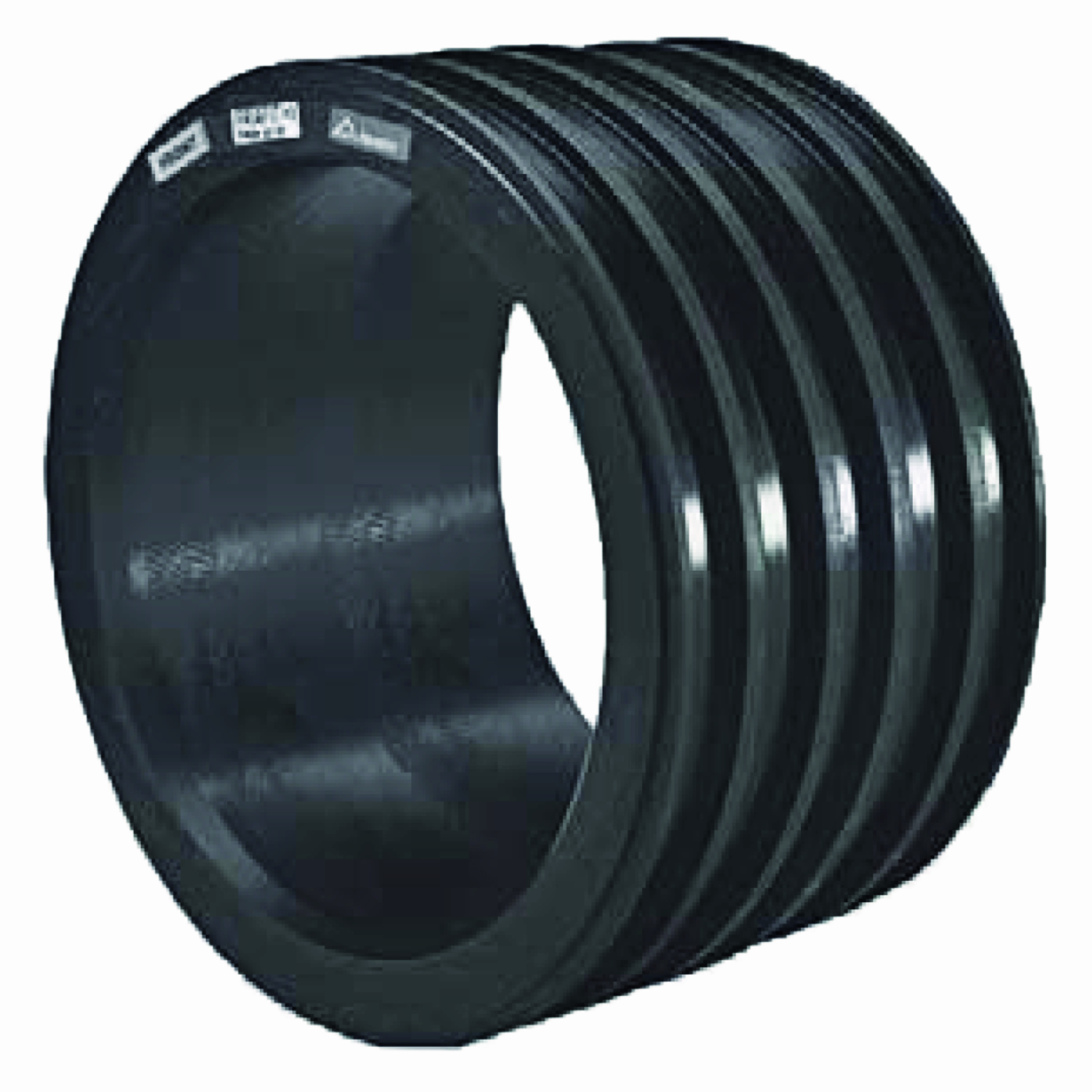

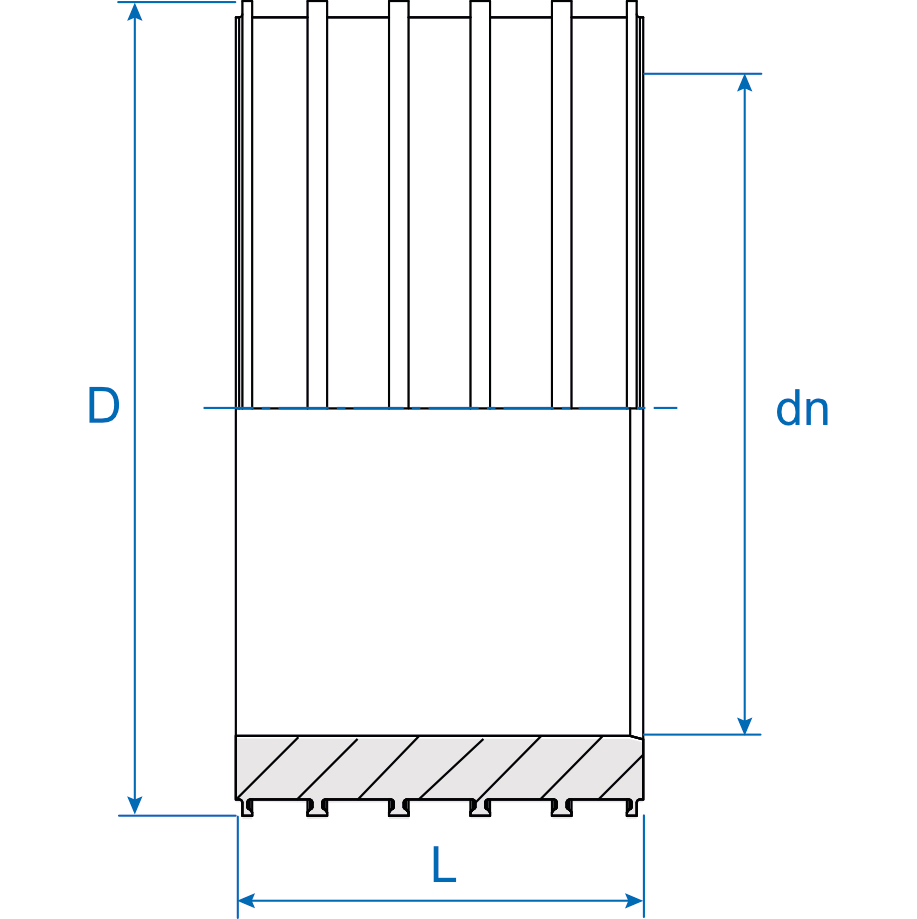

ASFL - Sewage inspection chamber adaptor for masoned canals

Product Code DN dn D d1 L Availability in Hong Kong
P0310.041.225250 200/225 225 & 250 355 280 250 8-12 weeks
P0310.041.280 250 280 400 316 250 8-12 weeks
P0310.041.355 300 355 500 402 250 8-12 weeks
P0310.041.450 400 450 630 502 250 8-12 weeks
P0310.041.560 500 560 710 628 250 8-12 weeks
P0310.041.630 525 630 800 713 250 8-12 weeks
