Blue 90º Bends

Blue 90º Injection Moulded Electrofusion Elbows / PN16 / SDR11

Friatec's PE100 RC Injection moulded electrofusion elbows are suitable for fusing pipes from SDR11 to SDR17.6  Electrofusion sockets feature all the same performance benefits found in blue couplers along with built-in reinforcement, so no de-ration is required.

NOTE: The pipe ends and sockets must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Frialen Blue Electrofusion elbows are made in Germany.

For other sizes, use a spigot elbow or bend from the tables below and blue couplers to join.

Product Code

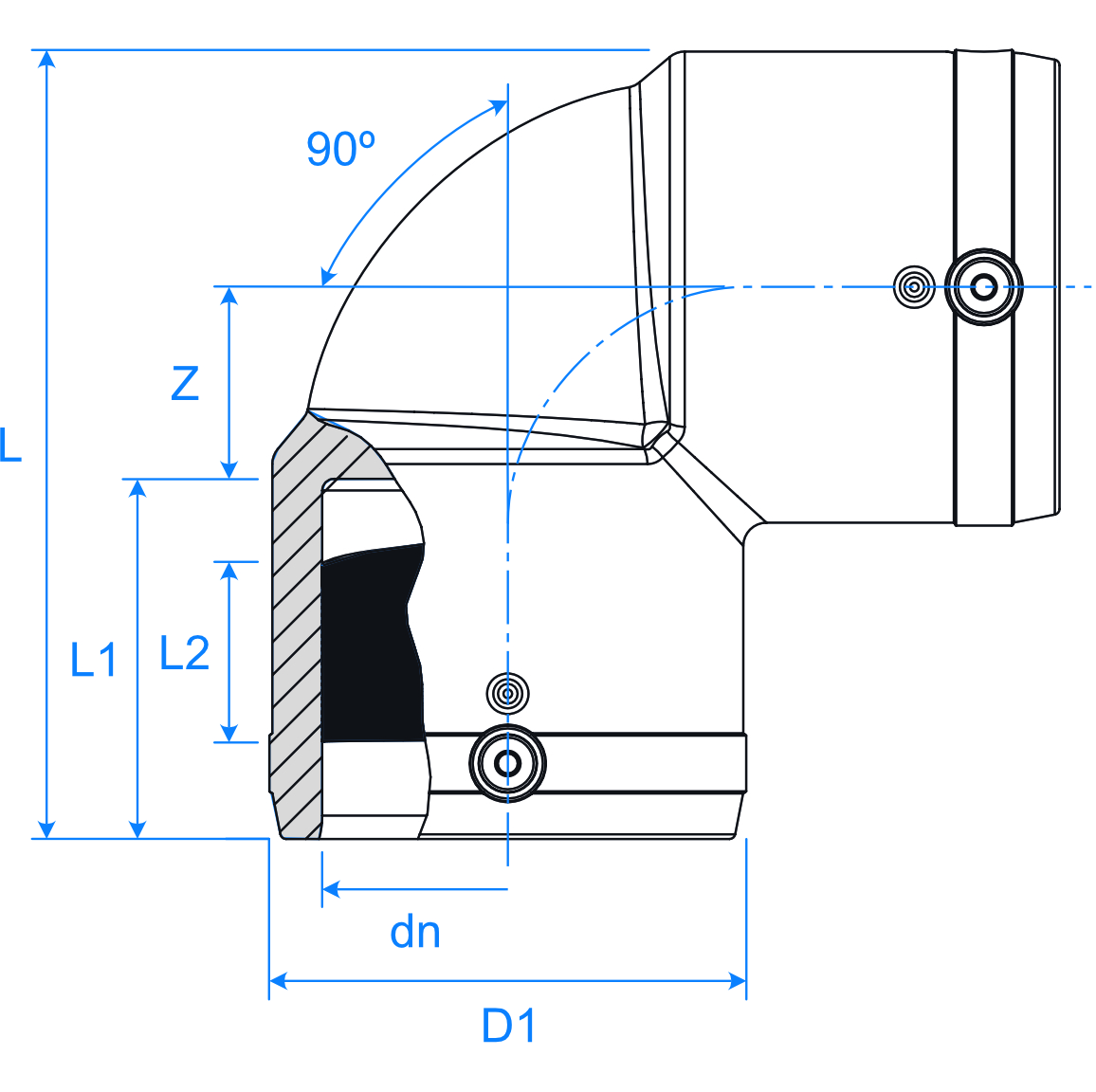

dn

D1

L

L1

L2

Z

Availability in Hong Kong

P3326.115.032

32

43

82

44

21

16

Ex-Stock

P3326.115.050

50

66

113

55

32

26

Ex-Stock

P3326.115.063

63

83

136

62

30

33

Ex-Stock

P3326.115.090

90

115

202

75

45

65

Ex-Stock

P3326.115.125

125

157

254

87

44

89

Ex-Stock

P3326.115.180

180

228

354

94

65

146

Ex-Stock

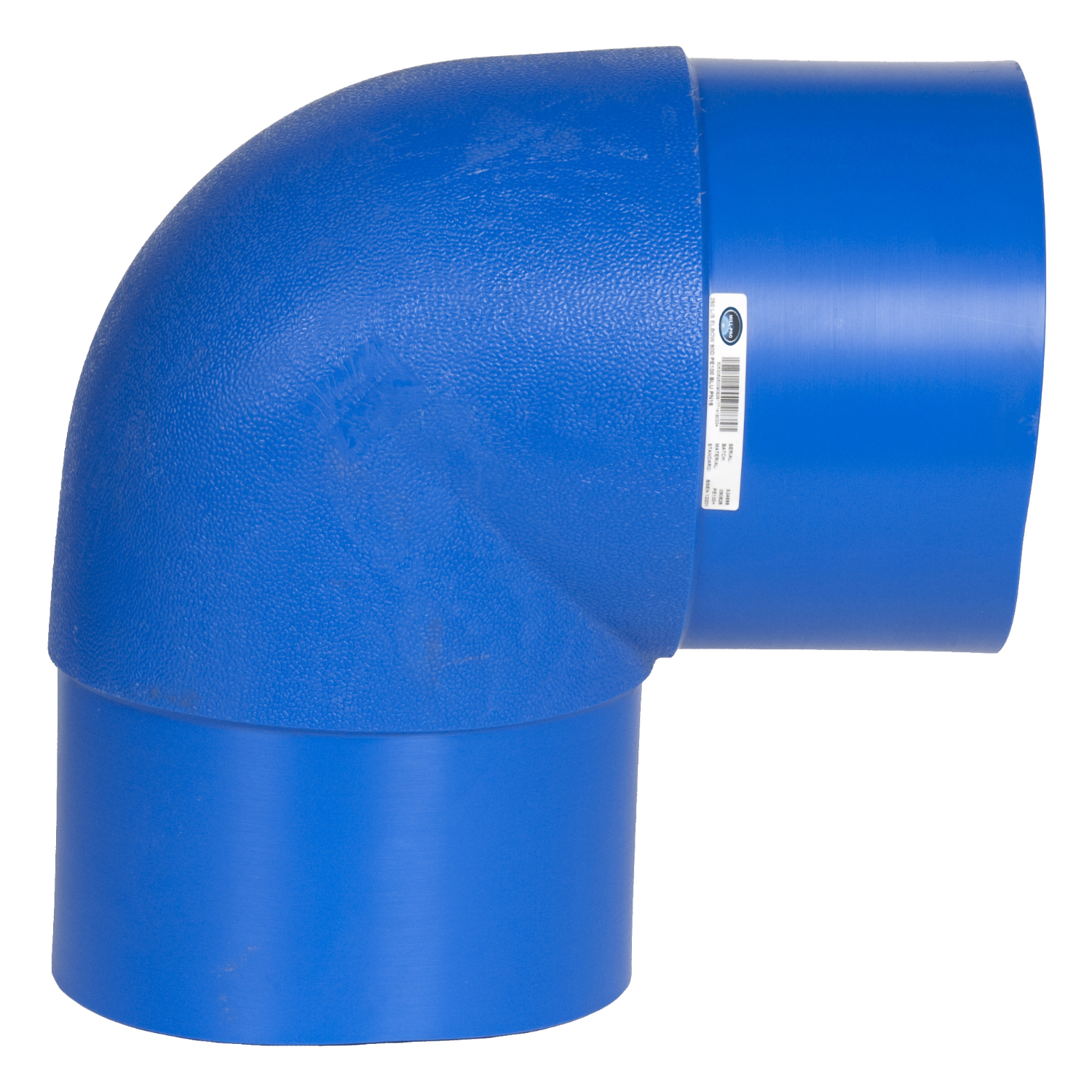

Blue 90º Injection Moulded Spigot Elbows / PN16 / SDR11

Mill-Pro PE100 RC Injection moulded spigot elbows are manufactured using Mill-Pro's own tooling under our continuous inspection. They feature long spigots for electrofusion or butt fusion joining and built-in reinforcement that exceeds the type testing requirements of BS EN 12201-2 and ISO 4427-3.  Mill-Pro fittings feature hard moulded brand, batch numbers for compliance checking and 1D and 2D bar code stickers for complete product traceability. All elbows are sealed in individual plastic bags for protection on site. Spigot fittings are joined by Electrofusion Couplers or Butt Fusion.

NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

Product Code

dn

le

r

Z

Availability in Hong Kong

P5826.115.250

250

135

125

295

Ex-Stock

P5826.115.315

315

155

158

356

Ex-Stock

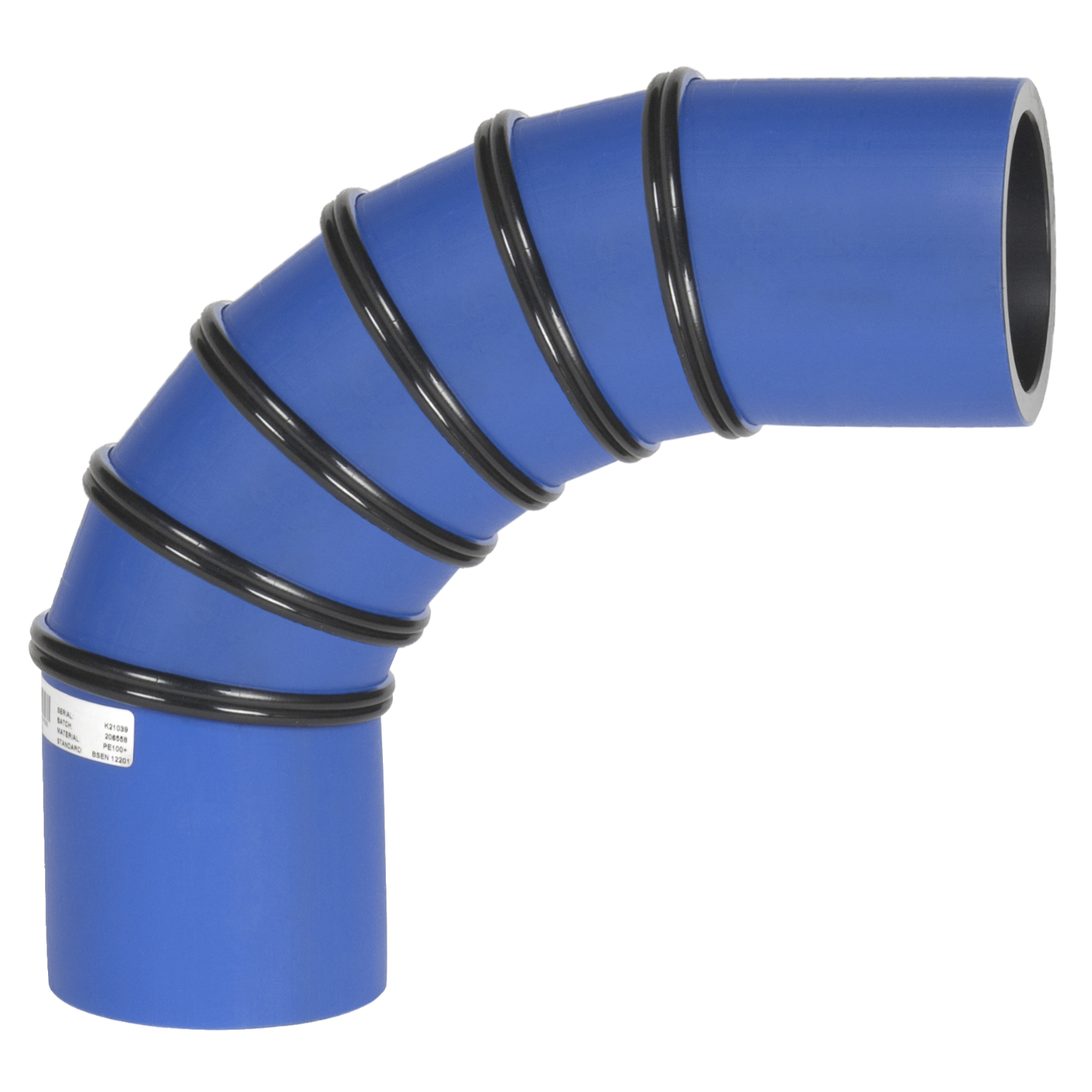

Blue / Purple 90º Segmented Spigot Bends / PN16 / SDR11

Mill-Pro's segmented spigot bends are manufactured from Mill-Pro M10 PE100 RC SDR11 blue or purple pipe and fabricated according to BS EN 12201-3, clause B.3, using butt weld techniques according to BS ISO 21307. They feature long spigots for electrofusion joining and 1D and 2D bar code stickers for complete product traceability. All bends are sealed in individual plastic bags for protection on site.

Segmented bends are manufactured from a pipe, with cut angles ≤ 7.5º and therefore are not subject to pressure de-ration factor required in BS EN 12201 Clause B.3. Generally, the internal weld beads are removed where possible and external weld beads are not removed unless ordered otherwise.

Any bend angle from 46º to 90º can be custom manufactured, however, the number of mitres required increases as the bend angle increases.  In order to maintain a cut angle ≤ 7.5º, the standard angle for a four mitre bend is 46º to 60º, for a five mitre bend is 61º to 75º and for a six mitre bend is 76º to 90º.  All bends have a radius of 2.5 x OD.

NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

Fabricated bends are made from pipe, so sizes up to dn1000 in PN16/SDR11 rating are available in blue or purple colour.

Product Code

dn

le

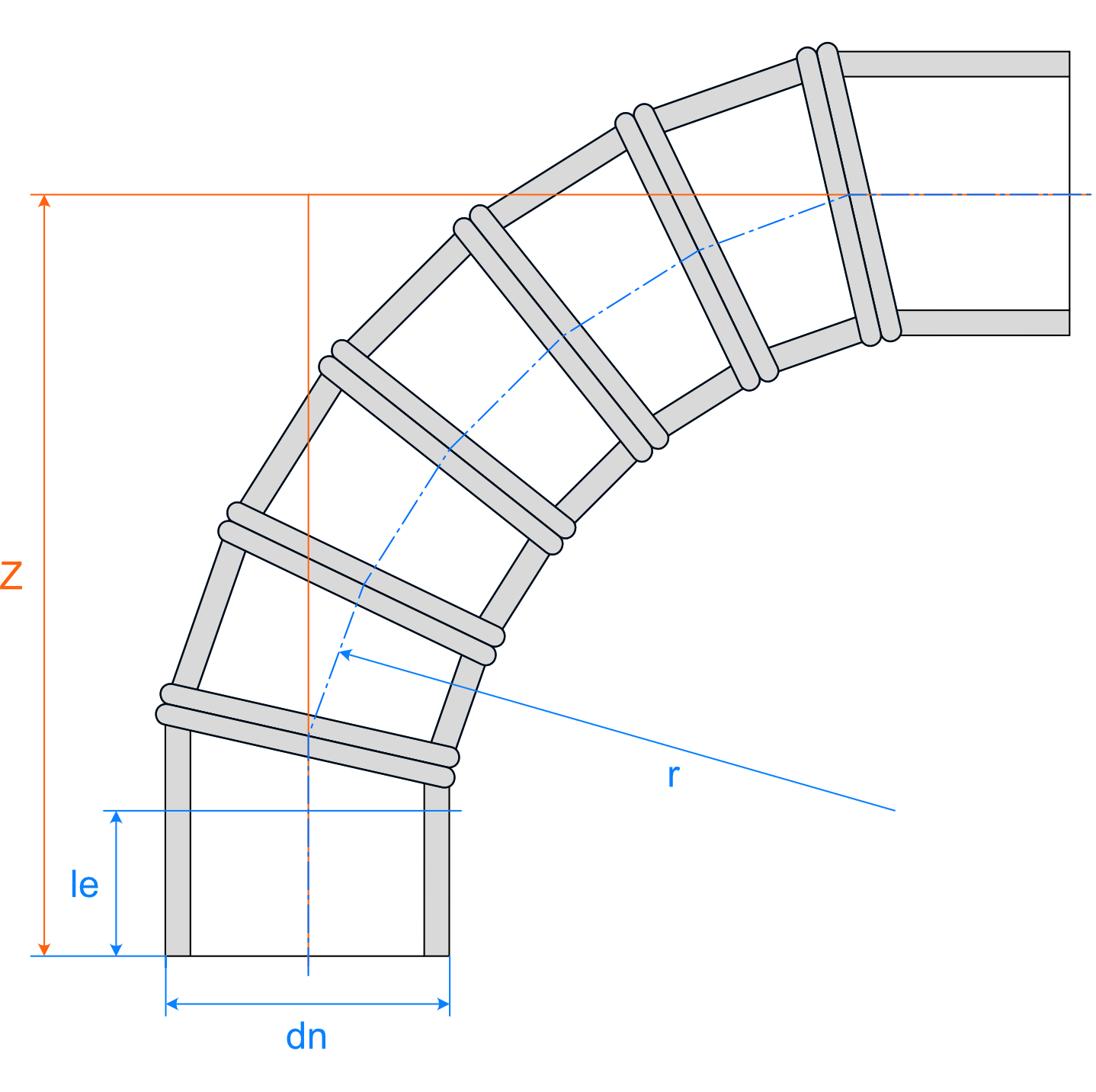

r = 2.5 dn

Z – 90º Six mitre

Availability in Hong Kong

P5K26.289.355

355

300

888

1188

4-6 Weeks

P5K26.289.450

450

300

1125

1425

8-12 Weeks

P5K26.289.500

500

350

1250

1600

8-12 Weeks

P5K26.289.560

560

350

1400

1750

8-12 Weeks

P5K26.289.630

630

350

1575

1925

8-12 Weeks

P5K26.289.710

710

350

1775

2125

8-12 Weeks

P5K26.289.800

800

350

2000

2350

8-12 Weeks



Blue / Purple 90º Segmented Spigot Bends / PN10 / SDR17

As above for PN16 bends, however, bends are manufactured from Mill-Pro M10E PE100 RC SDR17 blue or purple pipe. hence rated for PN10.

Fully complies with WSD PS, however only where the engineer allows the use of PN10 fittings.
Sizes ≤ dn1600 and <dn355 available on request.

Product Code

dn

le

r = 2.5 dn

Z – 90º Six mitre

Availability in Hong Kong

P5K24.289.355

355

300

888

1188

8-12 Weeks

P5K24.289.450

450

300

1125

1425

8-12 Weeks

P5K24.289.500

500

350

1250

1600

8-12 Weeks

P5K24.289.560

560

350

1400

1750

8-12 Weeks

P5K24.289.630

630

350

1575

1925

8-12 Weeks

P5K24.289.710

710

350

1775

2125

8-12 Weeks

P5K24.289.800

800

350

2000

2350

8-12 Weeks

P5K24.289.900

900

400

2250

2650

8-12 Weeks

P5K24.289.1000

1000

400

2500

2900

8-12 Weeks

P5K24.289.1200

1200

400

3000

3400

8-12 Weeks
