Black 45º Bends

Black 45º Injection Moulded Electrofusion Elbows / PN16 / SDR11

Friatec's PE100 RC Injection moulded electrofusion elbows are suitable for fusing pipes from SDR11 to SDR17.6  Electrofusion sockets feature all the same performance benefits found in black couplers along with built-in reinforcement, so no de-ration is required.

NOTE: The pipe ends and sockets must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Frialen Black Electrofusion elbows are made in Germany.

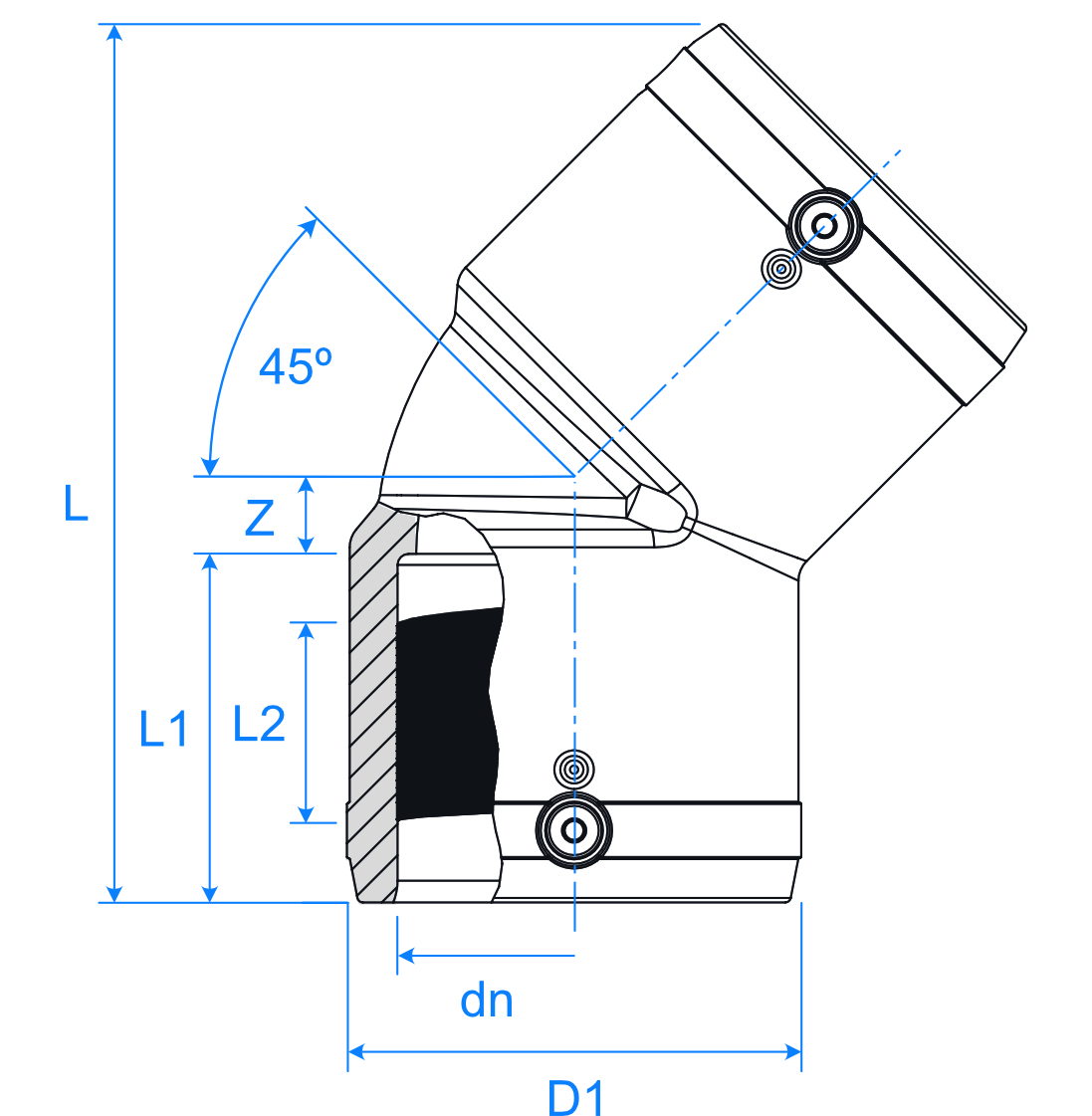

Product Code

dn

D1

L

L1

L2

Z

Availability in Hong Kong

P3316.119.025

25

35

89

38

17

7

8-12 Weeks

P3316.119.032

32

43

102

44

21

8

8-12 Weeks

P3316.119.050

50

66

136

54

32

13

8-12 Weeks

P3316.119.063

63

82

158

62

34

14

8-12 Weeks

P3316.119.090

90

115

232

79

45

35

8-12 Weeks

P3316.119.125

125

157

279

87

44

46

8-12 Weeks

P3316.119.180

180

228

382

97

65

83

8-12 Weeks

Note: Subject to the Engineers approval, this product can be used in above-ground PN16 applications that require PN20 fittings for the purpose of thermal de-ration. Socket fittings do not require thermal de-ration as the fitting is reinforced, due to sockets overlapping the spigots. This statement is only applicable for fittings operating at up to PN16 Maximum Operating Pressure.

Black 45º Injection Moulded Electrofusion Elbows XL / EF / PN16 / SDR11

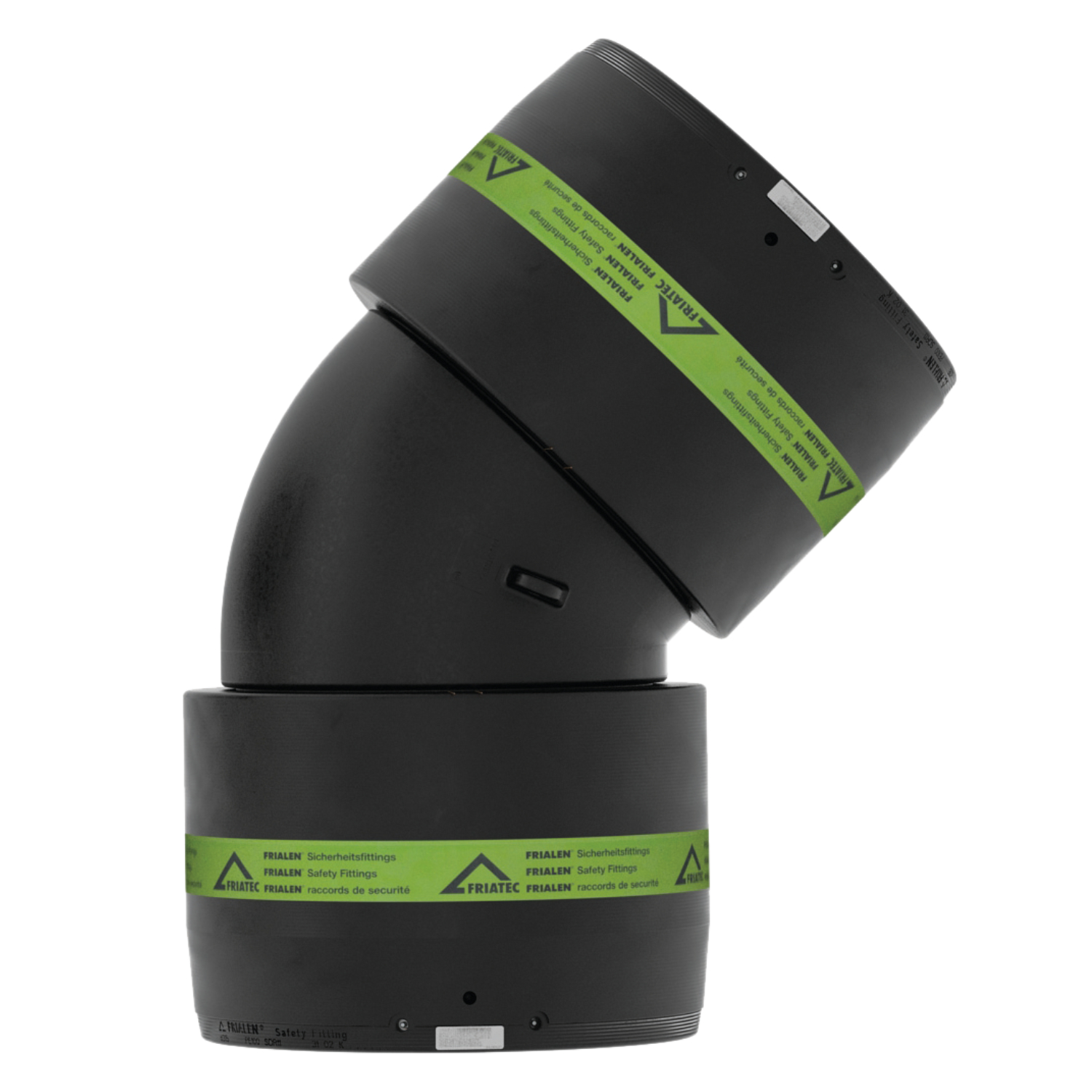

Friatec's PE100 XL range of electrofusion elbows are suitable for fusing pipes from SDR11 to SDR17.6  Electrofusion sockets feature all the same performance benefits found with black couplers along with built-in reinforcement, so no de-ration is required.  XL fittings have fused eyebolt holes for ease of handling on site.

NOTE: The electrofusion socket and pipe ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Frialen Black Electrofusion elbows are made in Germany.

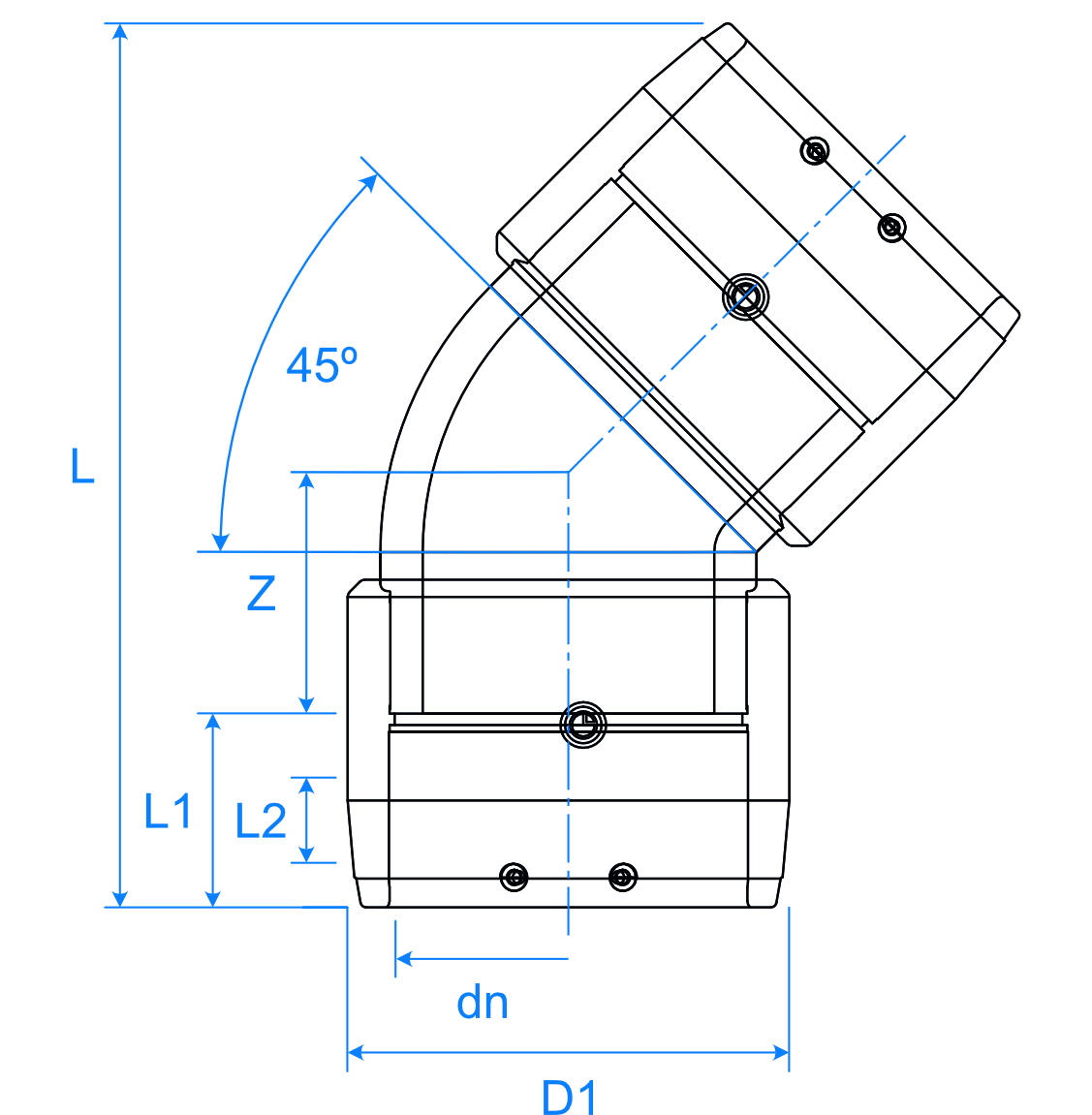

Product Code

dn

D1

L

L1

L2

Z

Availability in Hong Kong

P3316.119.250

250

310

621

128

80

176

8-12 Weeks

P3316.119.315

315

396

755

150

80

215

8-12 Weeks

Note: Typically Blue moulded Spigot elbows and couplers would be used in these sizes in Hong Kong

Black 45º Segmented Spigot Bends / PN16 / SDR11

Black segmented spigot bends are available in all sizes and pressure ratings, however, PN10 and PN16 bends are not listed in our water section, as typically Blue or Purple fabricated bends would be used in hong kong. For above-ground applications requiring thermal de-ration, PN20 / SDR9 black bends would be used. A range of black fabricated spigot bends can be found in our wastewater section here.

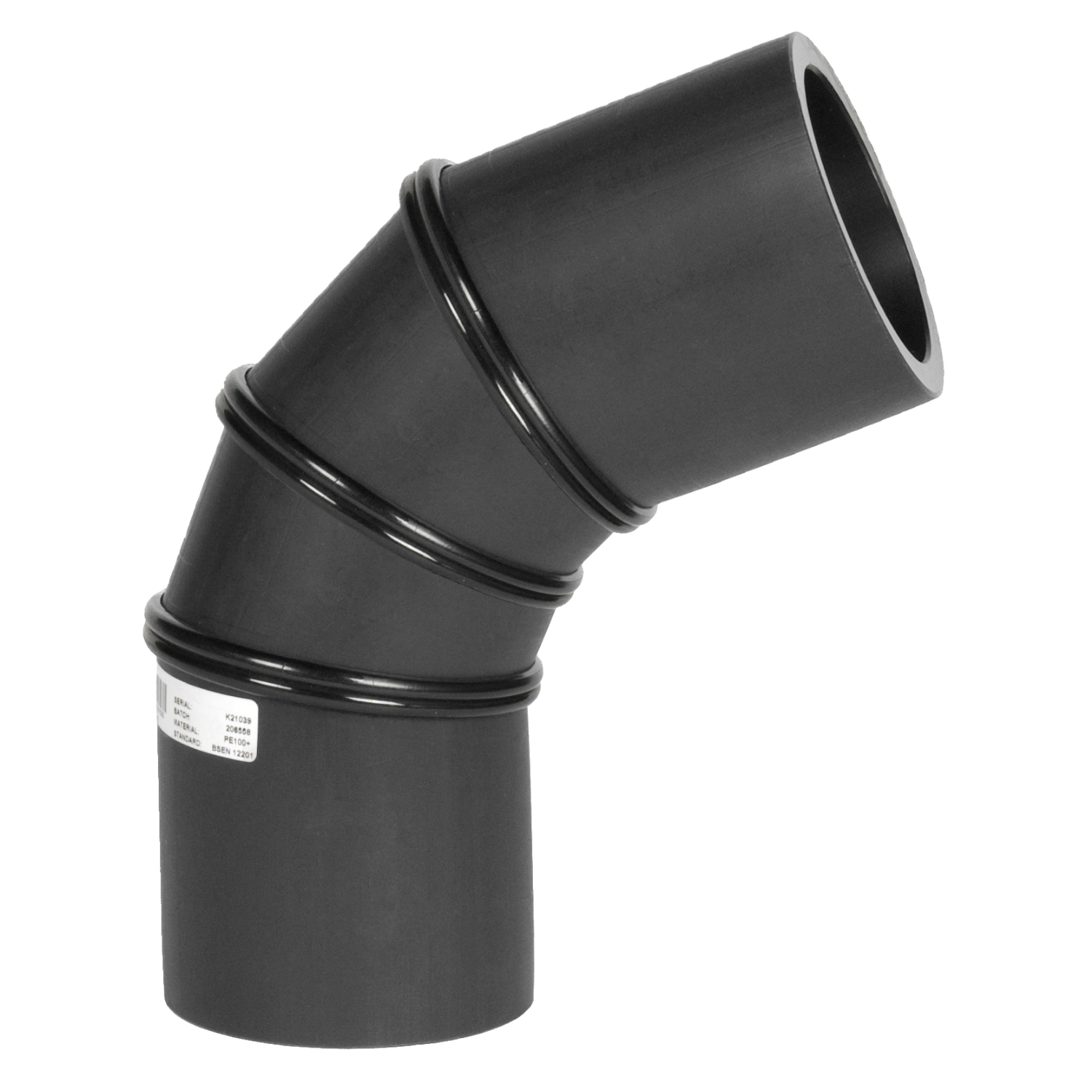

Black 45º Segmented Spigot Bends / PN20 / SDR9

PN20 / SDR9 segmented bends can be used for above-ground installations exposed to direct sunlight in a PN16 pipeline, where the pipes surface temperature may exceed 40ºC. The higher pressure rating allows for thermal de-ration due to prolonged elevated operating temperatures.

Manufactured from Mill-Pro M100 PE100 RC SDR9 Black pipe and fabricated according to BS EN 12201-3, clause B.3, using butt weld techniques according to BS ISO 21307. They feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability. All bends are sealed in individual plastic bags for protection on site.

Segmented bends are manufactured from a pipe, with cut angles ≤ 7.5º and therefore are not subject to pressure de-ration factor required in BS EN 12201 Clause B.3. Generally, the internal weld beads are removed where possible and external weld beads are not removed unless ordered otherwise.

Any bend angle from 31º to 45º can be custom manufactured, standard angle for a three mitre bend is 45º with a radius of 2.5 x OD.

NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

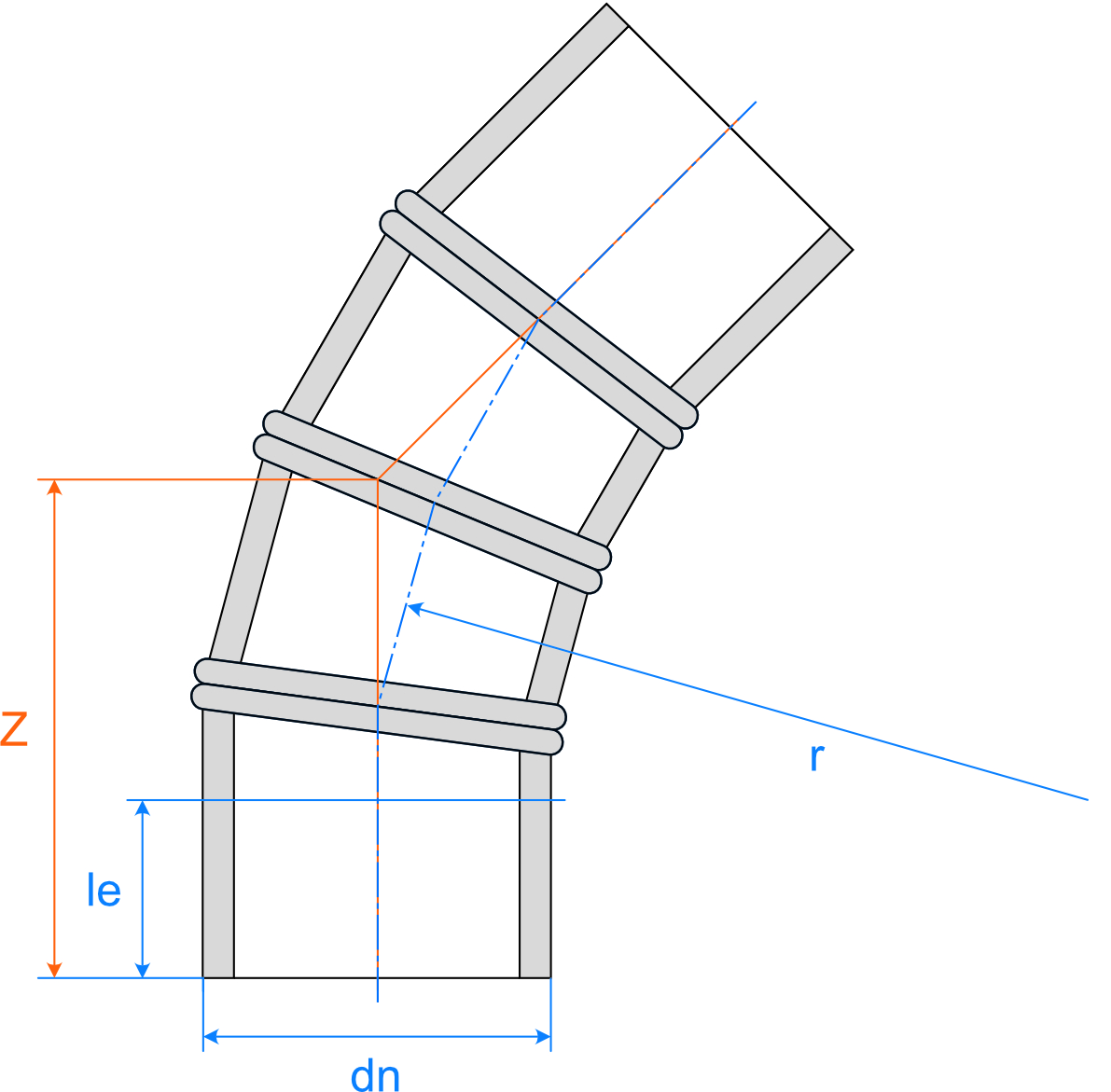

Product Code

dn

le

r = 2.5 dn

Z – 45º

Three mitre

Availability in Hong Kong

P5817.287.090

90

150

225

243

4-6 Weeks

P5817.287.125

125

150

313

279

4-6 Weeks

P5817.287.180

180

150

450

336

4-6 Weeks

P5817.287.250

250

250

625

509

Contact Us

P5817.287.315

315

300

788

626

Contact Us

P5817.287.355

355

300

888

668

Contact Us

P5817.287.450

450

300

1125

766

Contact Us

P5817.287.500

500

350

1250

868

Contact Us

P5817.287.560

560

350

1400

930

Contact Us

P5817.287.630

630

350

1575

1002

Contact Us

P5817.287.710

710

350

1775

1085

Contact Us

P5817.287.800

800

350

2000

1178

Contact Us

Note:

1. dn800 is the largest size bends available in SDR9.

2. Supply of Bends in sizes ≥ dn250 is subject to the availability of SDR9 pipe.

Black 45º Fabricated Spigot Elbows / PN10-PN16 / SDR17-SDR11

Fabricated elbows are manufactured from black PE100+ compound. They feature long spigots for electrofusion or butt fusion joining on site. Any fabricated elbow angle from 1º to 45º can be manufactured. Tables below show standard 45º elbow with a radius of ~0.5xOD for reference.

Product Code SDR17 PN10 Product Code SDR11 PN16 d1 le1 r z1 - 45º Availability in Hong Kong
P5314.79.355 P5316.79.355 355 200 177 365 14-16 weeks
P5314.79.400 P5316.79.400 400 300 200 475 14-16 weeks
P5314.79.450 P5316.79.450 450 300 225 485 14-16 weeks
P5314.79.500 P5316.79.500 500 300 250 505 14-16 weeks
P5314.79.560 P5316.79.560 560 300 280 540 14-16 weeks
P5314.79.630 P5316.79.630 630 300 315 560 14-16 weeks
P5314.79.710 P5316.79.710 710 500 355 775 14-16 weeks
P5314.79.800 P5316.79.800 800 500 400 790 14-16 weeks
P5314.79.900 P5316.79.900 900 500 450 875 14-16 weeks
P5314.79.1000 P5316.79.1000 1000 500 500 900 14-16 weeks
P5314.79.1200 1200 SDR11 not available  1200 500 600 900 14-16 weeks

Note: Custom fabricated elbows do not require pipe to manufacture. Individual elbows may be ordered in any angle.
