90º Bends

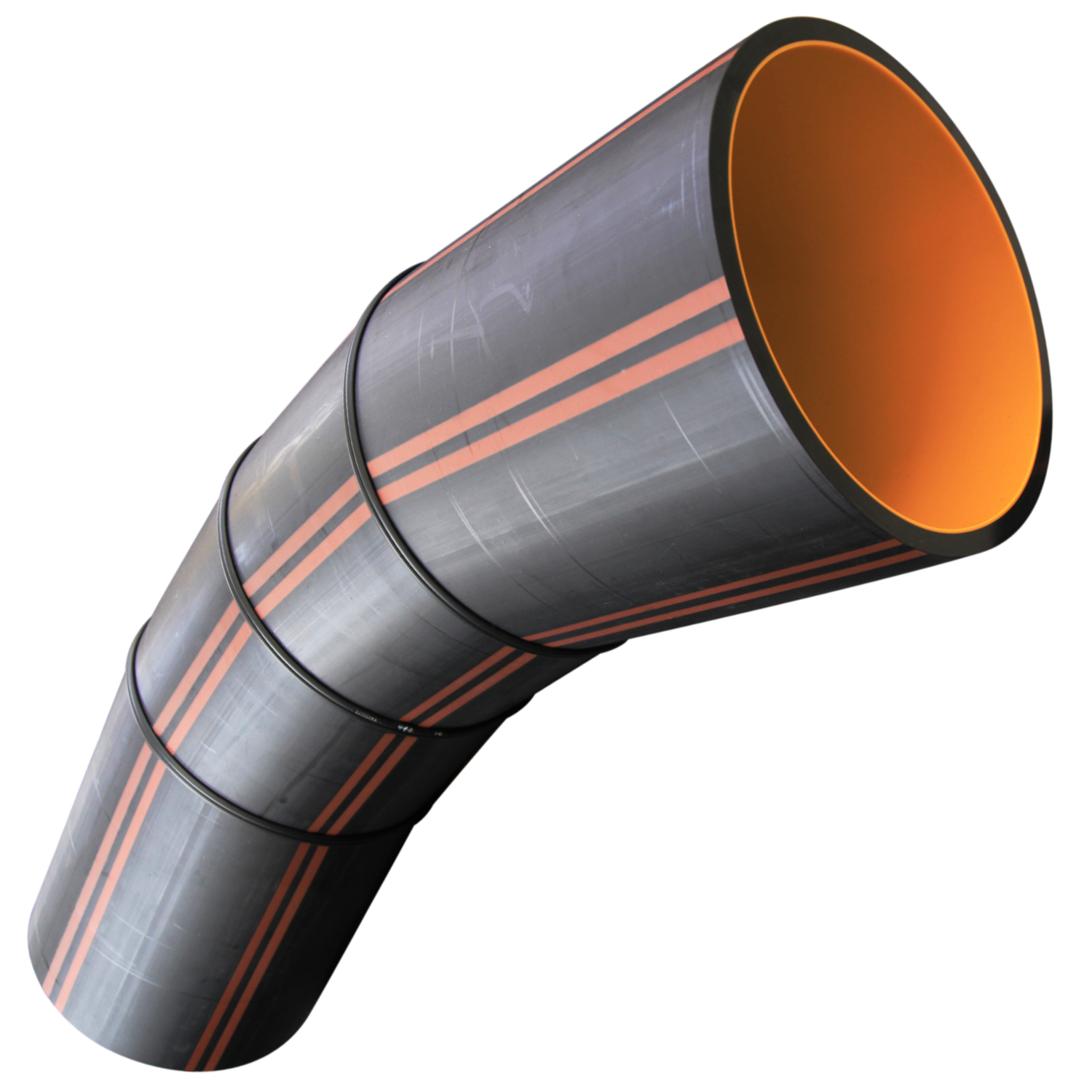

90º Segmented Spigot CCTV Bends / PN10 / SDR17 / Twin Stripe

Manufactured from Mill-Pro M90SE PE100 RC SDR17 CCTV pipe and fabricated according to BS EN 12201-3, clause B.3, using butt weld techniques according to BS ISO 21307. They feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability.

Segmented bends are manufactured from a pipe, with cut angles ≤ 7.5º and therefore are not subject to pressure de-ration factor required in BS EN 12201 Clause B.3. Generally, the internal weld beads are removed where possible and external weld beads are not removed unless ordered otherwise.

Any bend angle from 76º to 90º can be custom manufactured, standard angle for a three mitre bend is 90º with a radius of 2.5xOD, as given in the table below.

NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

Larger sizes to dn2000 in PN ratings from PN4 to PN10 are available in M100E pipe, subject to pipe availability. 90º Bends > dn1400 cannot be containerised as a complete bend.
Bends with brown or green twin stripes can only be supplied when also supplying the matching pipe.
To transport large bore bends, these may need to be made in sections and joined on site.

PN10 SDR17 Twin Brown Sewer

PN10 SDR17 Twin Green Stormwater

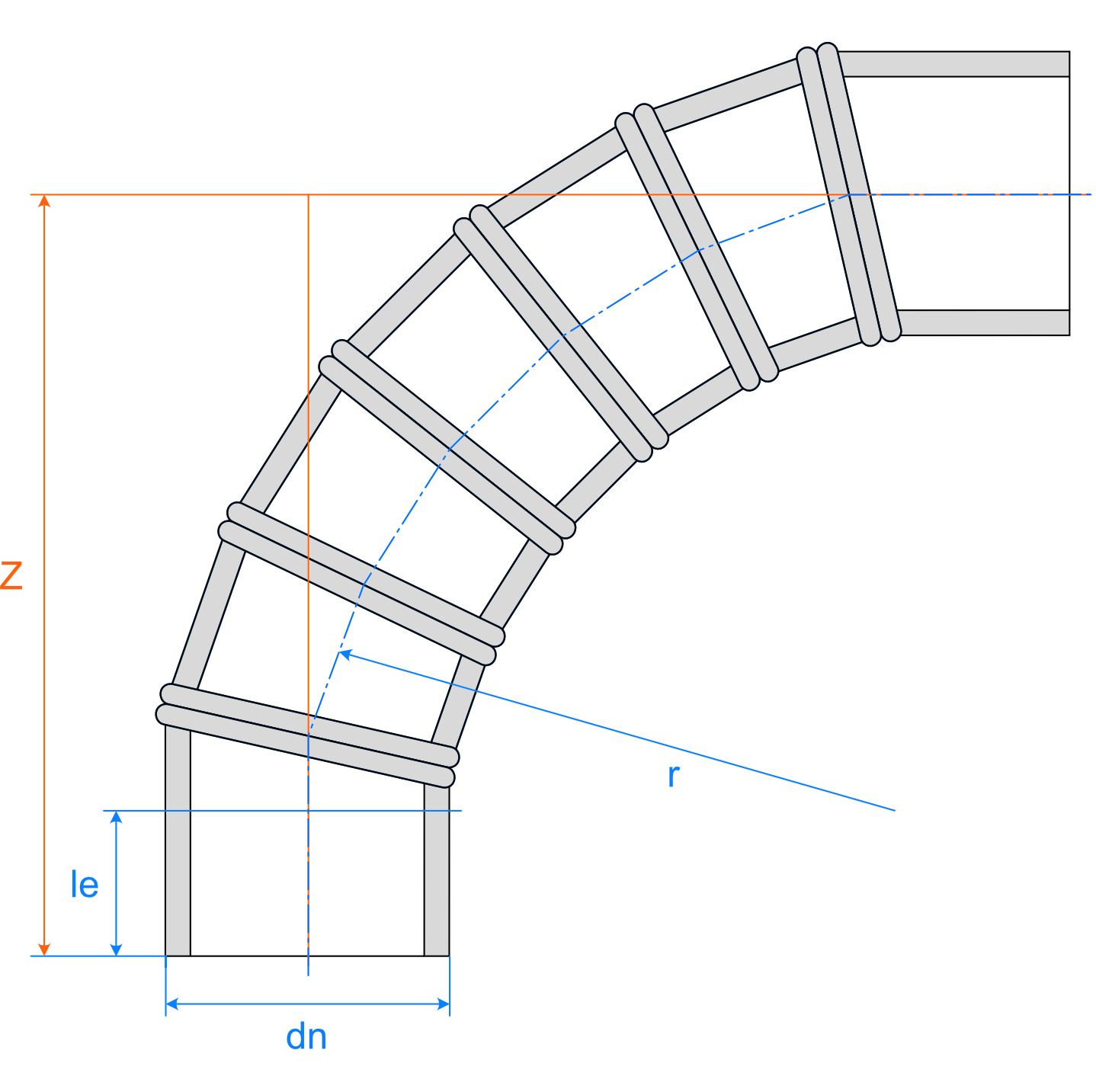

dn

le

r = 2.5 dn

Z - 90º Six mitre

Availability in Hong Kong

P5Q54.289.110

P5QG4.289.110

110

150

275

425

6-8 weeks

P5Q54.289.160

P5QG4.289.160

160

150

400

550

6-8 weeks

P5Q54.289.225

P5QG4.289.225

225

150

563

713

6-8 weeks

P5Q54.289.250

P5QG4.289.250

250

250

625

875

6-8 weeks

P5Q54.289.280

P5QG4.289.280

280

250

700

950

6-8 weeks

P5Q54.289.355

P5QG4.289.355

355

300

888

1188

6-8 weeks

P5Q54.289.400

P5QG4.289.400

400

300

1000

1300

6-8 weeks

P5Q54.289.450

P5QG4.289.450

450

300

1125

1425

6-8 weeks

P5Q54.289.500

P5QG4.289.500

500

350

1250

1600

6-8 weeks

P5Q54.289.560

P5QG4.289.560

560

350

1400

1750

6-8 weeks

P5Q54.289.630

P5QG4.289.630

630

350

1575

1925

6-8 weeks

P5Q54.289.710

P5QG4.289.710

710

350

1775

2125

6-8 weeks

P5Q54.289.800

P5QG4.289.800

800

350

2000

2350

6-8 weeks

P5Q54.289.900

P5QG4.289.900

900

400

2250

2650

6-8 weeks

P5Q54.289.1000

P5QG4.289.1000

1000

400

2500

2900

6-8 weeks

P5Q54.289.1200

P5QG4.289.1200

1200

400

3000

3400

6-8 weeks

P5Q54.289.1400

P5QG4.289.1400

1400

550

3500

4050

6-8 weeks

P5Q54.289.1600

P5QG4.289.1600

1600

550

4000

4550

6-8 weeks



90º Segmented Spigot CCTV Bends / PN16 / SDR11 / Twin Stripe

As above, segmented bends fabricated from PN16 / SDR 11 CCTV twin stripe pipe.

dn1000 is the largest size pipe and therefore is the largest bend size available in PN16/SDR11.
Other PN ratings from PN4 to PN25 are available on request, subject to pipe availability.
Bends with brown or green twin stripes can only be supplied when also supplying the matching pipe.
To transport large bore bends, these may need to be made in sections and joined on site.

PN16 SDR11 Twin Brown Sewer

PN16 SDR11 Twin Green Stormwater

dn

le

r = 2.5 dn

Z - 90º Six mitre

Availability in Hong Kong

P5Q56.289.110 P5QG6.289.110

110

150

275

425

6-8 weeks

P5Q56.289.160 P5QG6.289.160

160

150

400

550

6-8 weeks

P5Q56.289.225 P5QG6.289.225

225

150

563

713

6-8 weeks

P5Q56.289.250 P5QG6.289.250

250

250

625

875

6-8 weeks

P5Q56.289.280 P5QG6.289.280

280

250

700

950

6-8 weeks

P5Q56.289.355 P5QG6.289.355

355

300

888

1188

6-8 weeks

P5Q56.289.400 P5QG6.289.400

400

300

1000

1300

6-8 weeks

P5Q56.289.450 P5QG6.289.450

450

300

1125

1425

6-8 weeks

P5Q56.289.500 P5QG6.289.500

500

350

1250

1600

6-8 weeks

P5Q56.289.560 P5QG6.289.560

560

350

1400

1750

6-8 weeks

P5Q56.289.630 P5QG6.289.630

630

350

1575

1925

6-8 weeks

P5Q56.289.710 P5QG6.289.710

710

350

1775

2125

6-8 weeks

P5Q56.289.800 P5QG6.289.800

800

350

2000

2350

6-8 weeks

P5Q56.289.900 P5QG6.289.900

900

400

2250

2650

6-8 weeks

P5Q56.289.1000 P5QG6.289.1000

1000

400

2500

2900

6-8 weeks

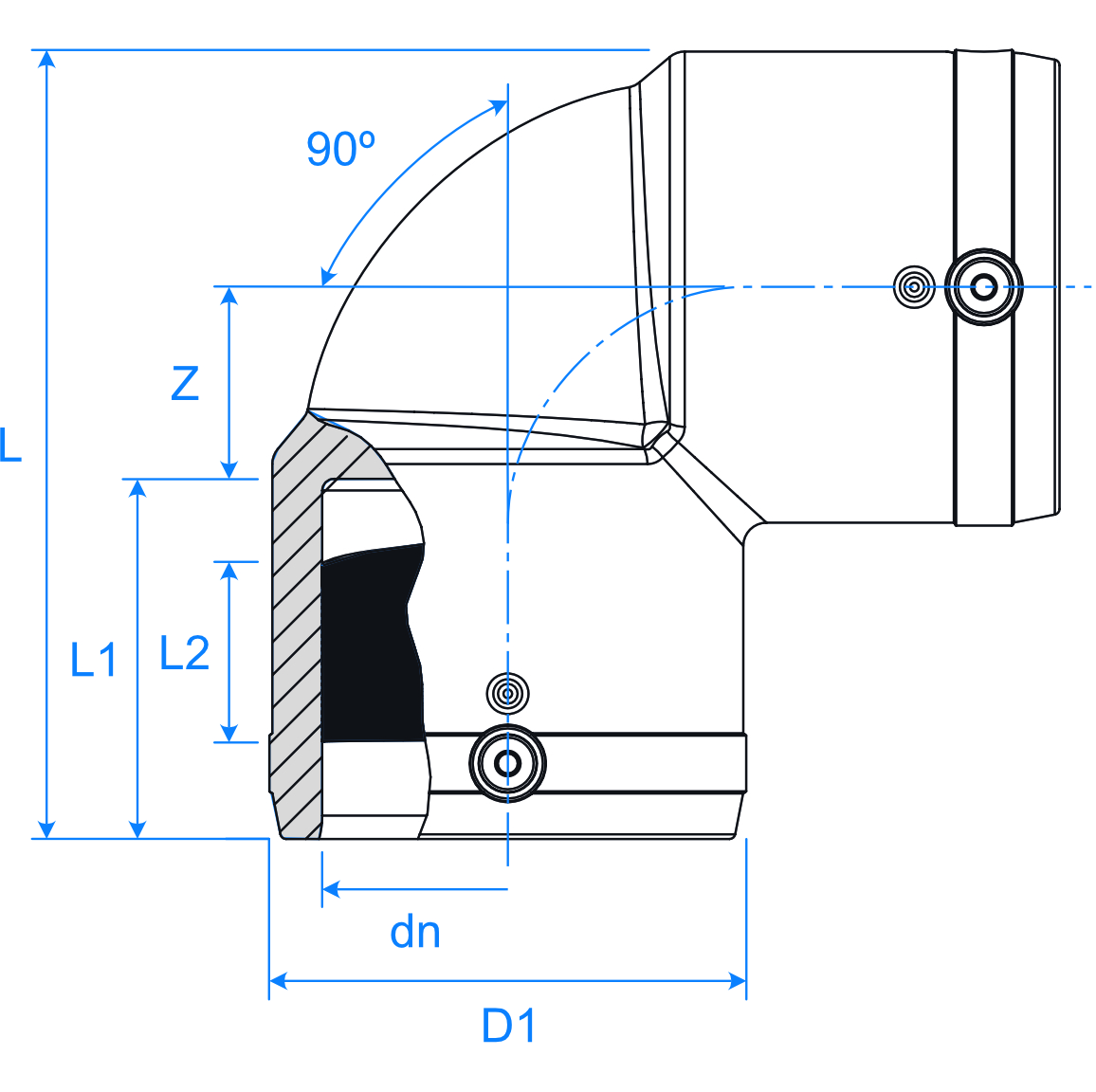

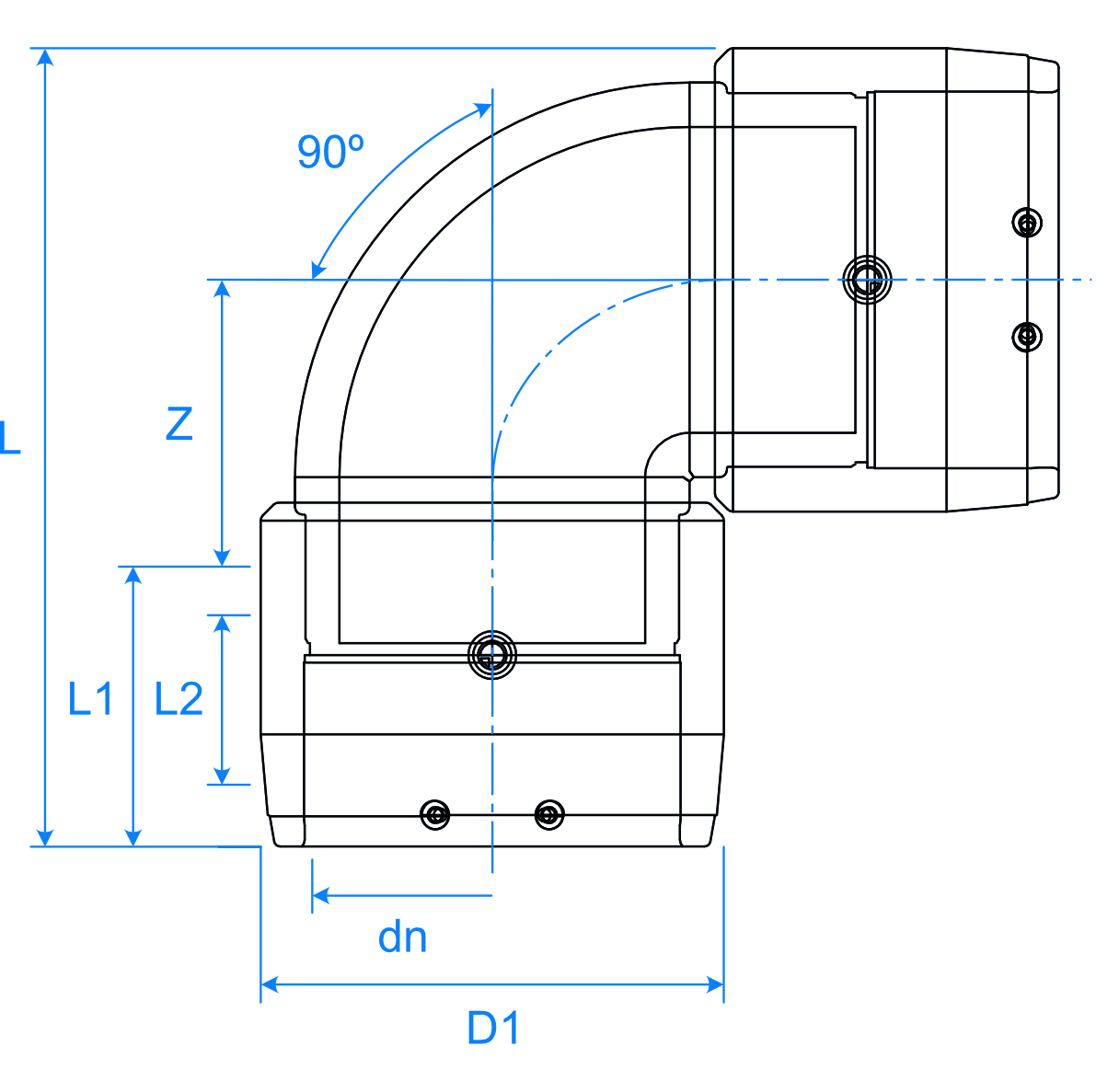

Black 90º Injection Moulded Electrofusion Elbows / PN16 / SDR11

Friatec's PE100 RC Injection moulded electrofusion elbows are suitable for fusing pipes from SDR11 to SDR17.6  Electrofusion sockets feature all the same performance benefits found in black couplers along with built-in reinforcement, so no de-ration is required.

NOTE: The pipe ends and sockets must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Product Code

dn

D1

L

L1

L2

Z

Availability in Hong Kong

P3316.115.063

63

83

136

62

30

33

8-12 Weeks

P3316.115.090

90

115

202

75

45

65

8-12 Weeks

P3316.115.110

110

138

234

81

50

84

8-12 Weeks

P3316.115.125

125

157

254

87

44

89

8-12 Weeks

P3316.115.160

160

207

329

92

44

133

8-12 Weeks

P3316.115.180

180

228

354

94

65

146

8-12 Weeks

P3316.115.200

200

254

392

106

54

159

8-12 Weeks

P3316.115.225

225

280

430

113

66

177

8-12 Weeks

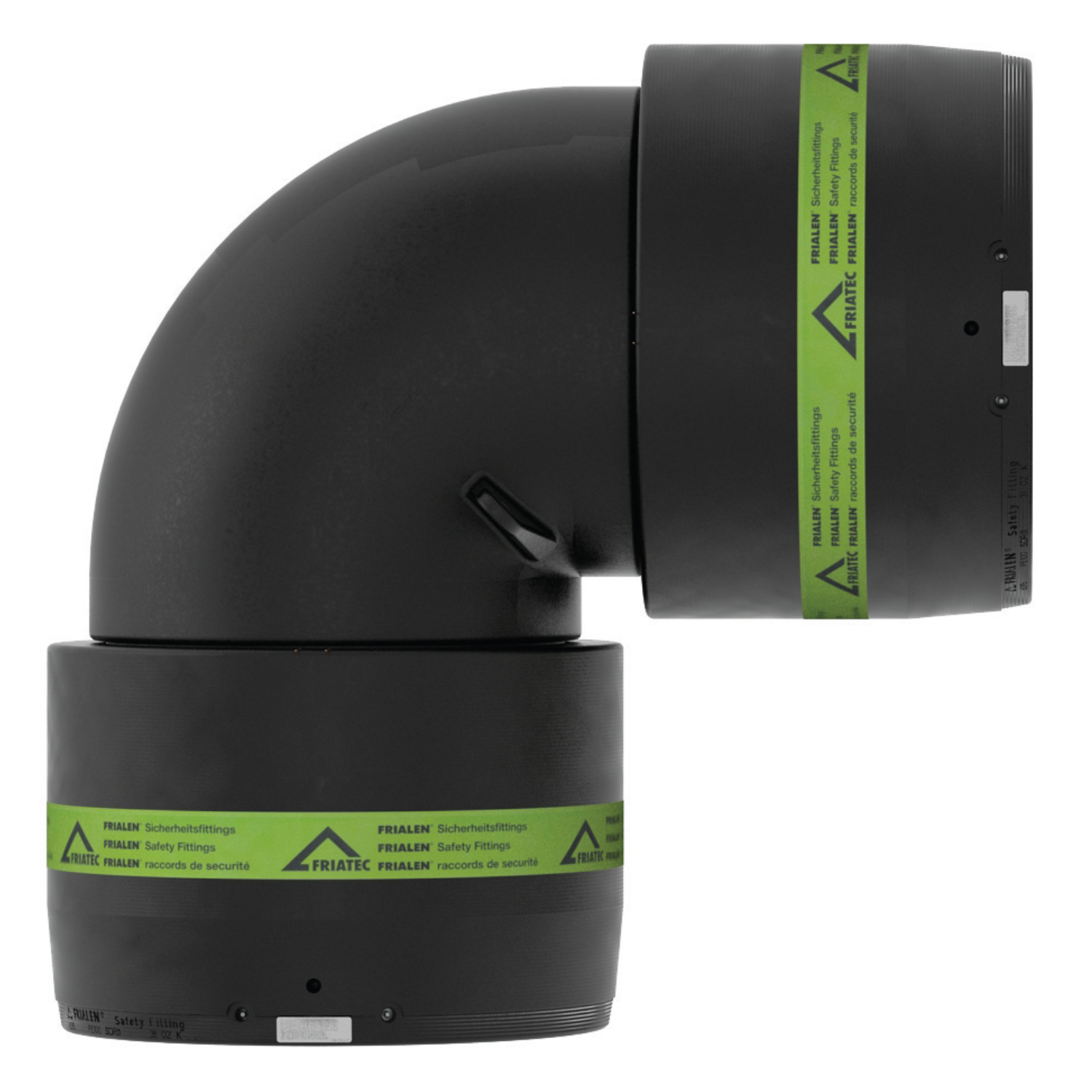

Black 90º Injection Moulded Electrofusion Elbows XL / PN16 / SDR11

Friatec's PE100 XL range of electrofusion elbows are suitable for fusing pipes from SDR11 to SDR17.6  Electrofusion sockets feature all the same performance benefits found with black couplers along with built-in reinforcement, so no de-ration is required.  XL fittings have fused eyebolt holes for ease of handling on site.

NOTE: The electrofusion socket and pipe ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Frialen Black Electrofusion elbows are made in Germany.

Product Code dn D1 L L1 L2 Z Availability in Hong Kong
P3316.115.250 250 310 534 128 80 251 8-12 weeks
P3316.115.280 280 350 621 139 84 307 8-12 weeks
P3316.115.315 315 396 677 150 80 329 8-12 weeks

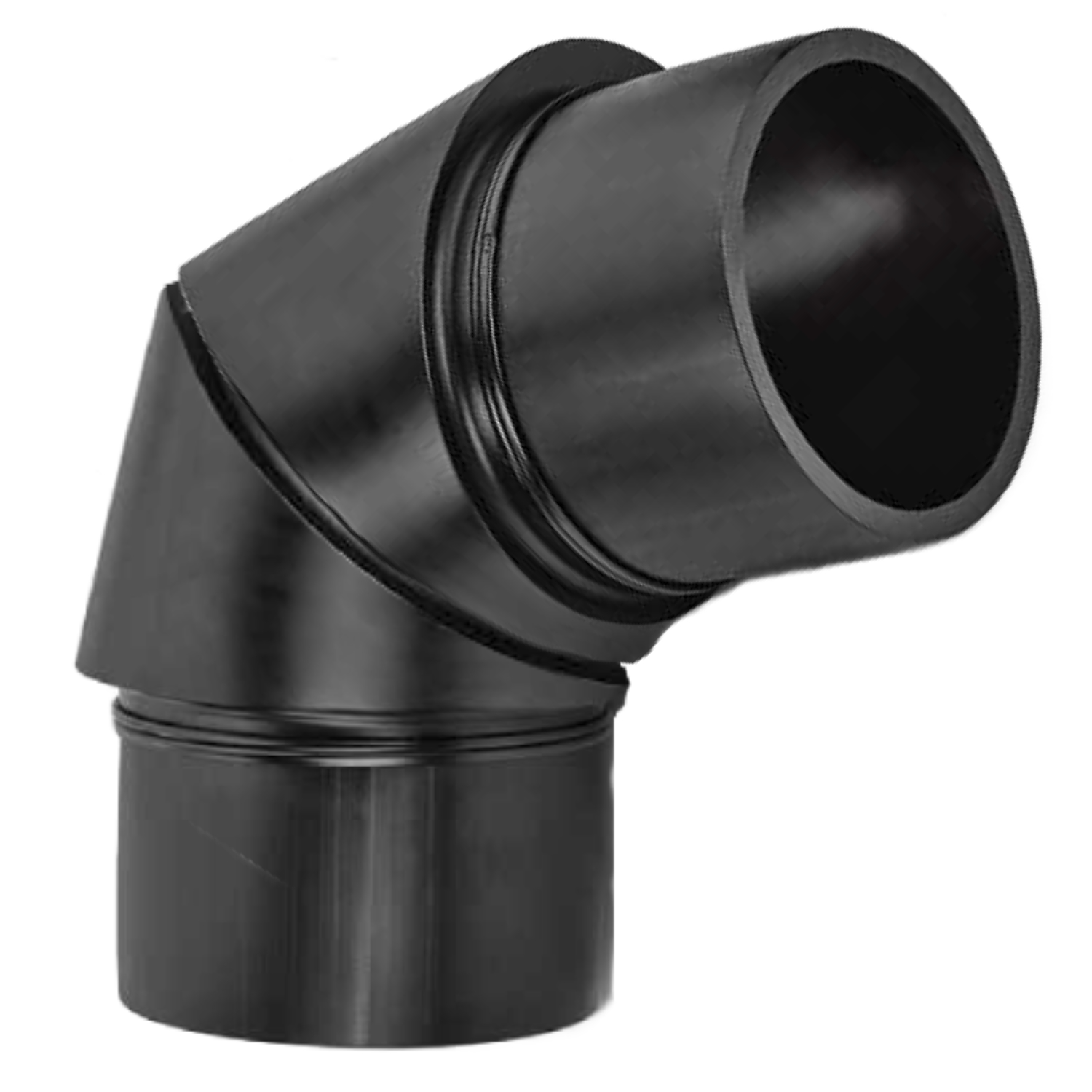

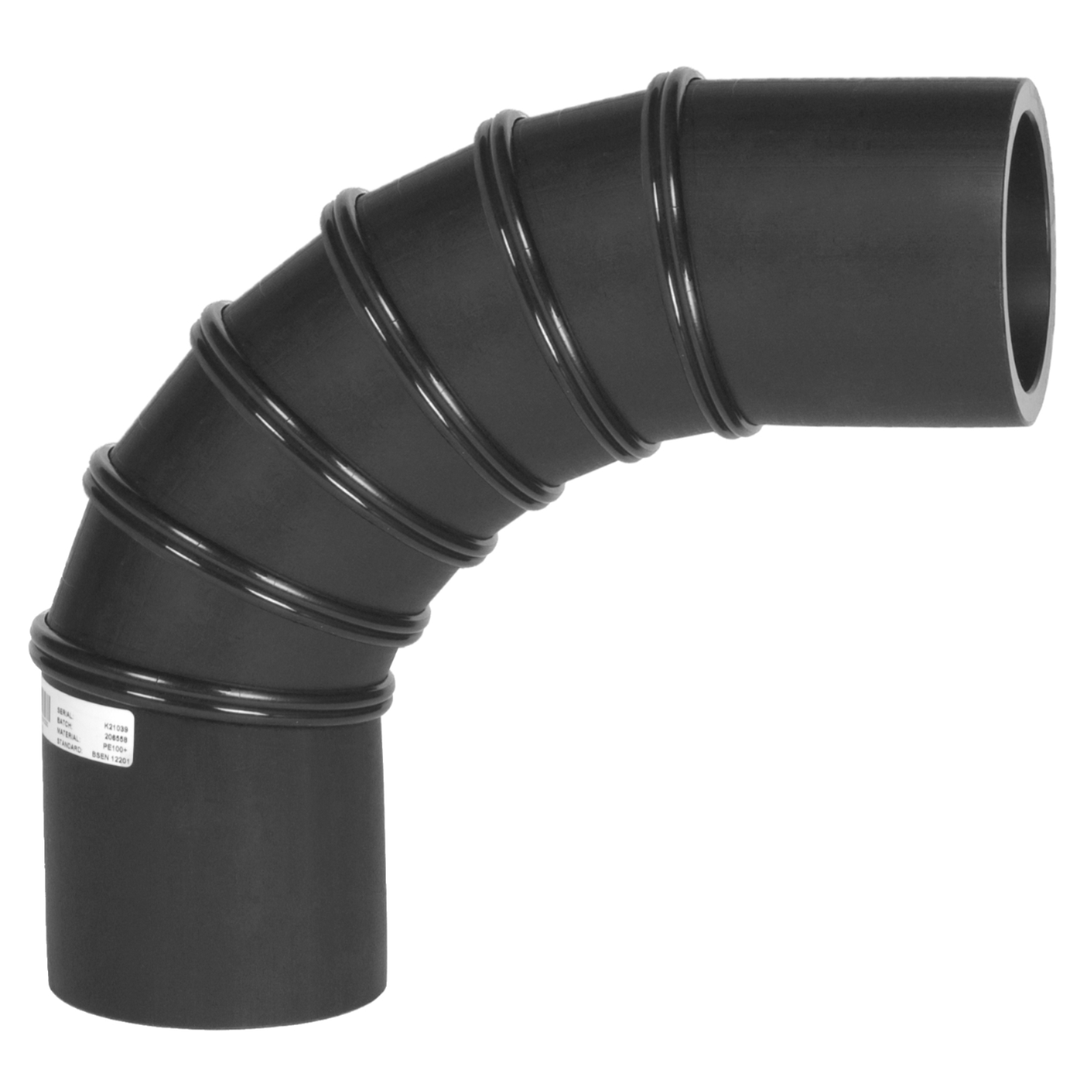

Black 90º Fabricated Spigot Elbows / PN10-PN16 / SDR17-SDR11

Fabricated 90º elbows are manufactured by factory butt welding two 45º elbows together.  Elbows are machined from black PE100+ compound. They feature long spigots for electrofusion or butt fusion joining on site. Any fabricated elbow angle from 1º to 45º can be manufactured. Tables below shows dimensions for two 45º elbows factory butt welded together to give a 90º elbow with a radius of ~0.5xOD.

Custom fabricated elbows do not require pipe to manufacture. Individual elbows may be ordered in any angle.

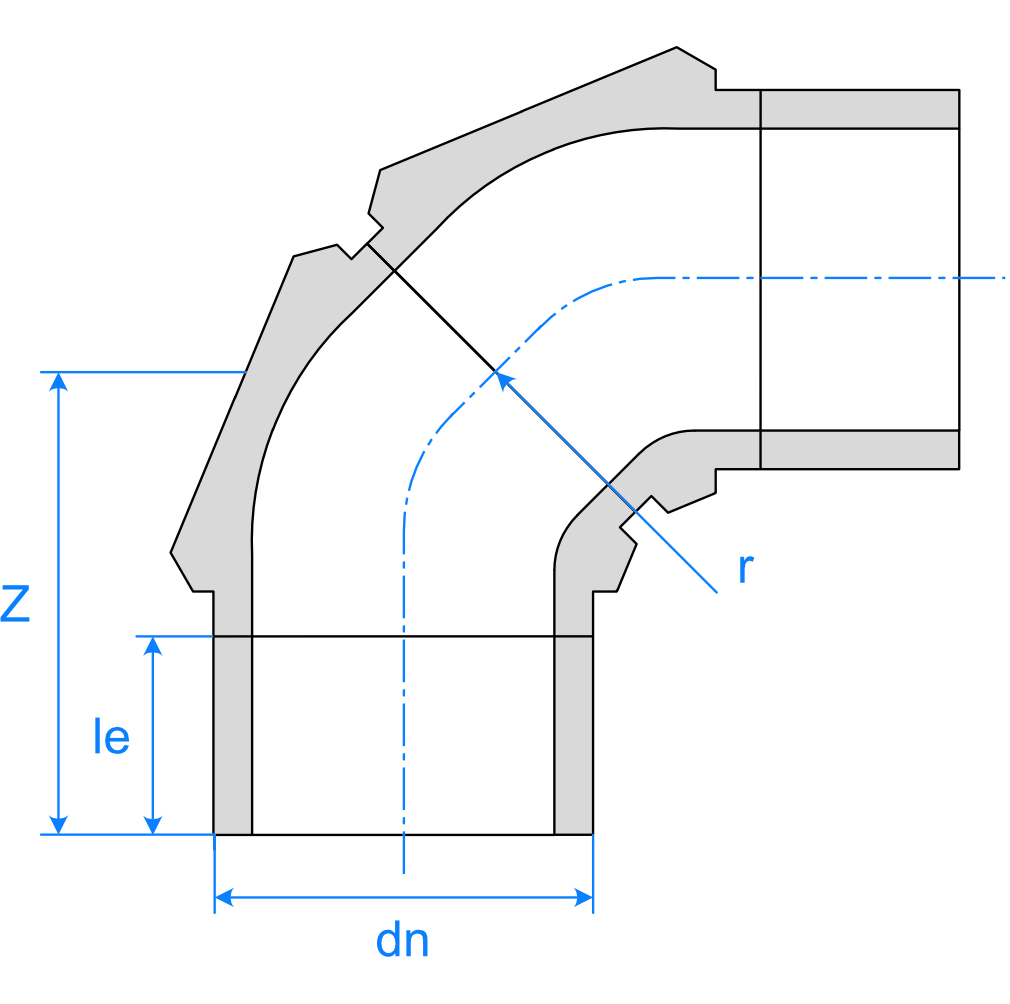

PN10 SDR17 PN16 SDR11 d1 le1 r z1 - 90º Availability in Hong Kong
P5314.81.355 P5316.81.355 355 200 177 560 14-16 weeks
P5314.81.400 P5316.81.400 400 300 200 684 14-16 weeks
P5314.81.450 P5316.81.450 450 300 225 709 14-16 weeks
P5314.81.500 P5316.81.500 500 300 250 753 14-16 weeks
P5314.81.560 P5316.81.560 560 300 280 828 14-16 weeks
P5314.81.630 P5316.81.630 630 300 315 874 14-16 weeks
P5314.81.710 P5316.81.710 710 500 355 1111 14-16 weeks
P5314.81.800 P5316.81.800 800 500 400 1149 14-16 weeks
P5314.81.900 P5316.81.900 900 500 450 1327 14-16 weeks
P5314.81.1000 P5316.81.1000 1000 500 500 1386 14-16 weeks
P5314.81.1200 - 1200 500 600 1403 14-16 weeks
P5314.81.1400 - 1400 500 700 1620 14-16 weeks

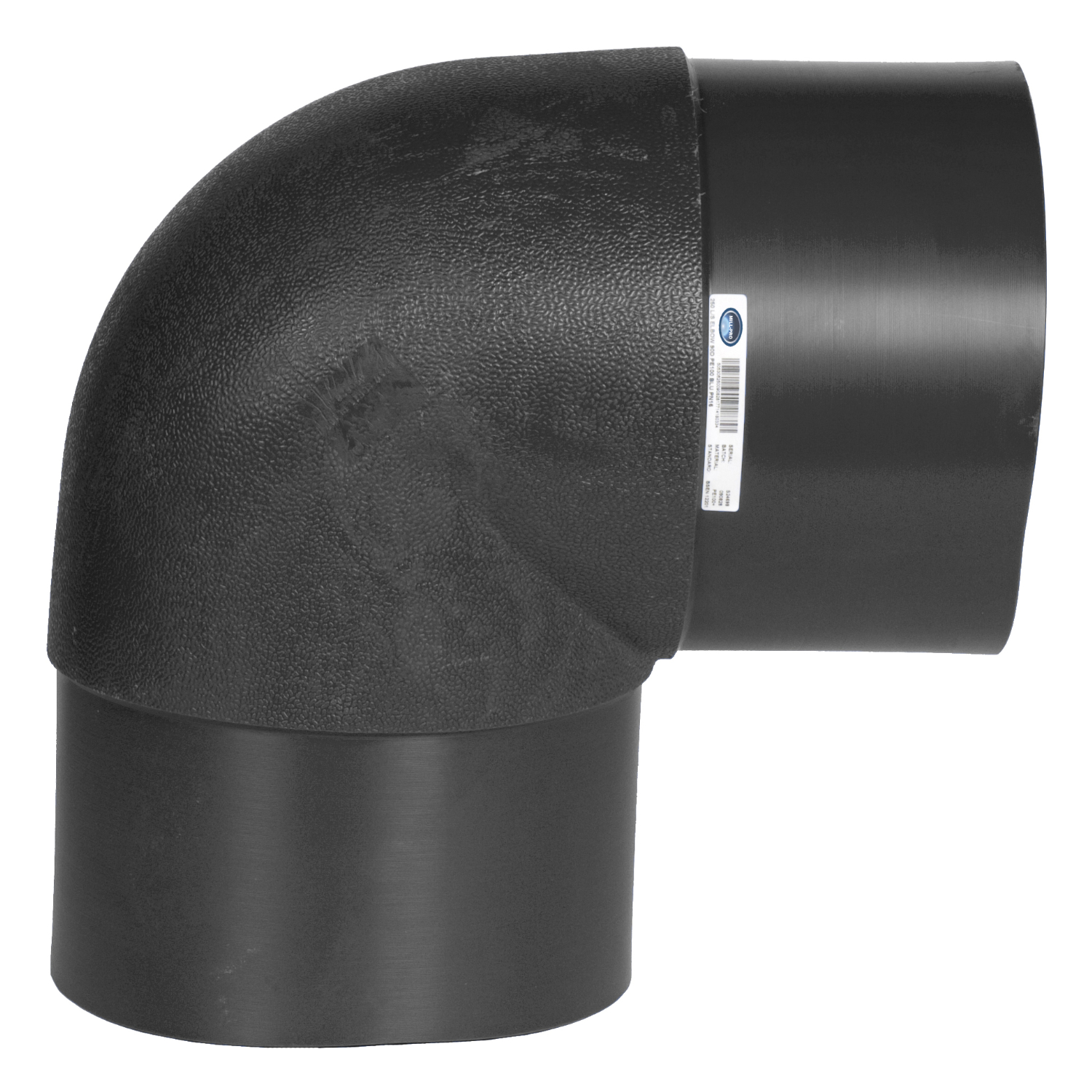

Black 90º Injection Moulded Spigot Elbows / PN10 / SDR17

Mill-Pro supplies a small range of PE100+ Black Injection moulded spigot elbows.  It should be noted in the table below fitting dimension 'l3' marked with * do not meet the required minimum spigot length for use as long spigot fittings, given in BS EN 12201-3 Table 3, 'Tubular length'. These fittings DO meet the standard for use as a butt weld fittings and they meet all other requirements given in the standard.

All fittings given in the table below have sufficient spigot length required for fusion using Friatec electrofusion couplers. However, certification cannot currently be provided for the fittings compliance to BS EN 12201-3 when used as a long spigot elbow for electrofusion joining.

Fittings where 'le' is marked with an * do not meet the minimum requirement for minimum tubular length in BS EN 12201-3 Table 3 when being joined with electrofusion couplers.

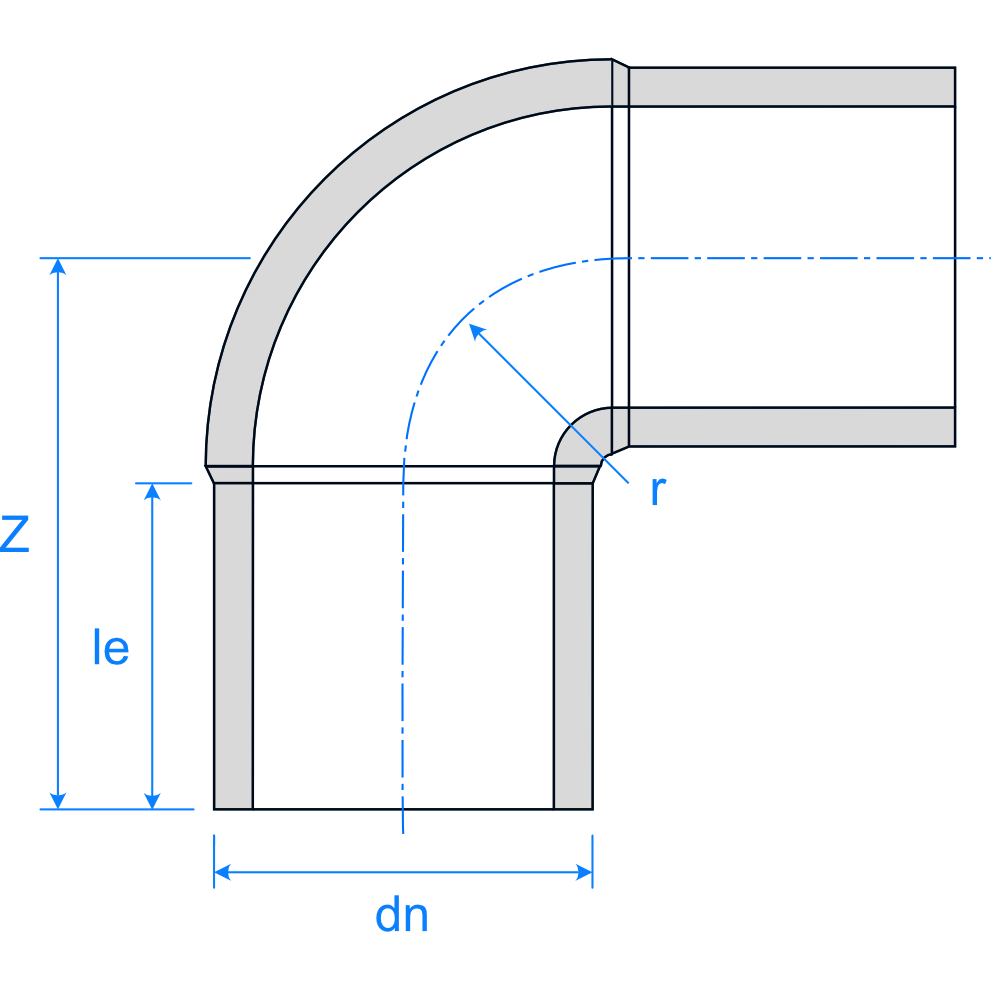

Product Code dn le r z Availability in Hong Kong
P5314.115.063 63 63 32 98 4-6 weeks
P5314.115.090 90 79 45 132 4-6 weeks
P5314.115.110 110 82 55 143 4-6 weeks
P5314.115.125 125 95 63 158 4-6 weeks
P5314.115.140 140 *85 70 163 4-6 weeks
P5314.115.160 160 *92 80 177 4-6 weeks
P5314.115.180 180 105 90 205 4-6 weeks
P5314.115.200 200 125 100 239 4-6 weeks
P5314.115.225 225 135 113 255 4-6 weeks
P5314.115.250 250 130 125 265 4-6 weeks
P5314.115.280 280 *135 140 282 4-6 weeks
P5314.115.315 315 150 158 340 4-6 weeks
P5314.115.355 355 *155 178 365 4-6 weeks
P5314.115.450 450 *180 225 410 4-6 weeks
P5314.115.500 500 *210 250 460 4-6 weeks
P5314.115.560 560 *210 280 505 4-6 weeks
P5314.115.630 630 *210 315 544 4-6 weeks



Black 90º Injection Moulded Spigot Elbows / PN16 / SDR11

Fittings where 'le' is marked with an * do not meet the minimum requirement for minimum tubular length in BS EN 12201-3 Table 3 when being joined with electrofusion couplers.
Product Code dn le r Z Availability in Hong Kong
P5316.115.063 63 63 32 98 4-6 weeks
P5316.115.090 90 79 45 132 4-6 weeks
P5316.115.110 110 82 55 143 4-6 weeks
P5316.115.125 125 95 63 158 4-6 weeks
P5316.115.140 140 *85 70 163 4-6 weeks
P5316.115.160 160 *92 80 177 4-6 weeks
P5316.115.180 180 105 90 205 4-6 weeks
P5316.115.200 200 125 100 239 4-6 weeks
P5316.115.225 225 135 113 255 4-6 weeks
P5316.115.250 250 130 125 265 4-6 weeks
P5316.115.280 280 *135 140 282 4-6 weeks
P5316.115.315 315 150 158 340 4-6 weeks
P5316.115.355 355 *155 178 365 4-6 weeks
P5316.115.400 400 *145 200 348 4-6 weeks



Six Mitre Custom Segment Spigot Bends / PN4-25 / SDR41-7.4

As above, six mitre segmented bends are manufactured from pipes supplied for the contract, such as M90SE or M100E, in any angle from 75º to 90º with radii from 1.5 - 2.5xOD. Bend sizes are only limited by the pipes size and rating. See M100 pipe tables for the maximum pipe DN/OD at a given SDR rating. Contact us for specific requirements.

Note: 90º Bends > dn1400, where r=2.5xOD, cannot be containerised as a complete bend.
