60º Bends

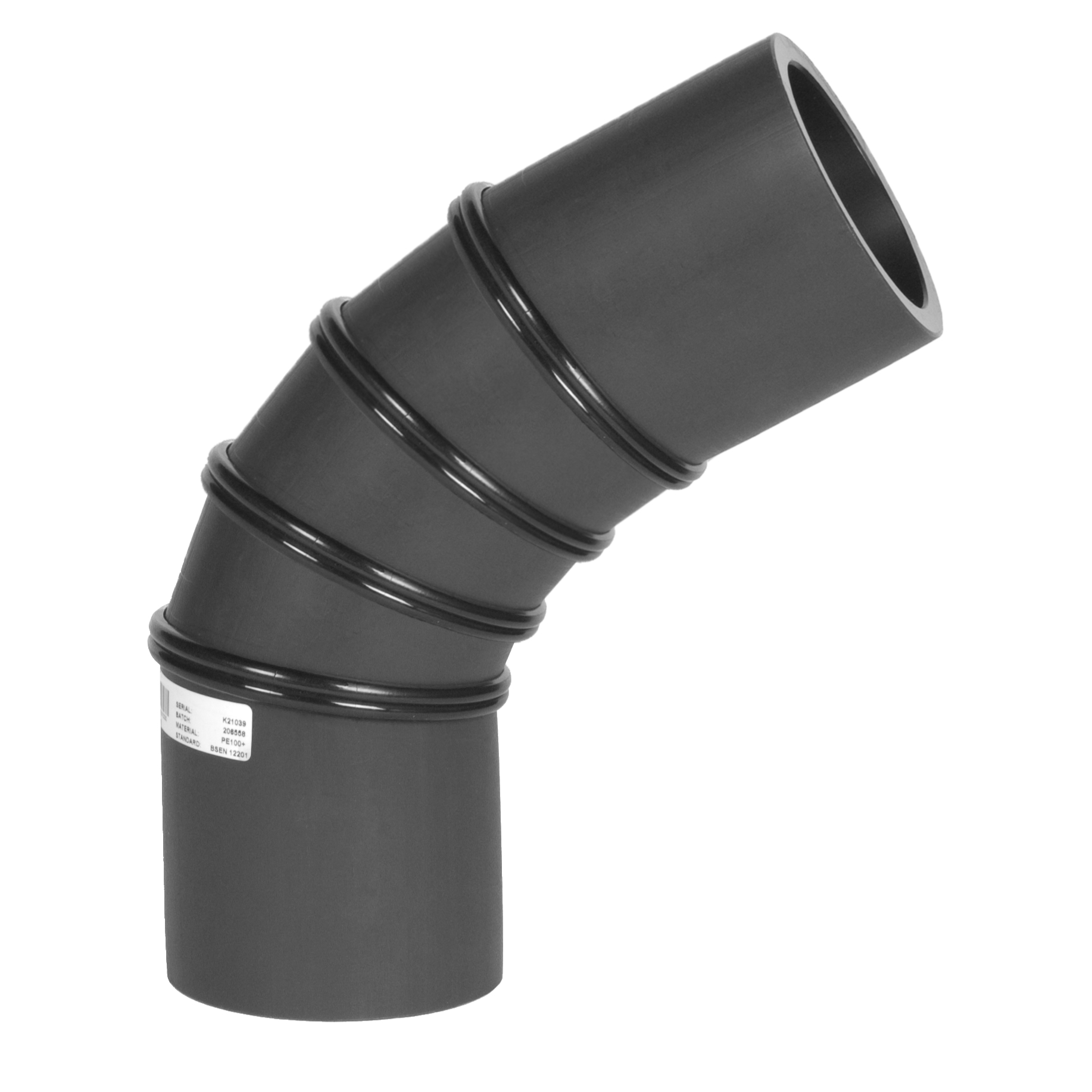

60º Segmented Spigot CCTV Bends / PN10 / SDR17 / Twin Stripe

Manufactured from Mill-Pro M90SE PE100 RC SDR17 CCTV pipe and fabricated according to BS EN 12201-3, clause B.3, using butt weld techniques according to BS ISO 21307. They feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability.

Segmented bends are manufactured from a pipe, with cut angles ≤ 7.5º and therefore are not subject to pressure de-ration factor required in BS EN 12201 Clause B.3. Generally, the internal weld beads are removed where possible and external weld beads are not removed unless ordered otherwise.

Any bend angle from 46º to 60º can be custom manufactured, standard angle for a four mitre bend is 60º with a radius of 2.5 x OD, as given in the table below.

NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

PN10 SDR17 Twin Brown Sewer

PN10 SDR17 Twin Green Stormwater

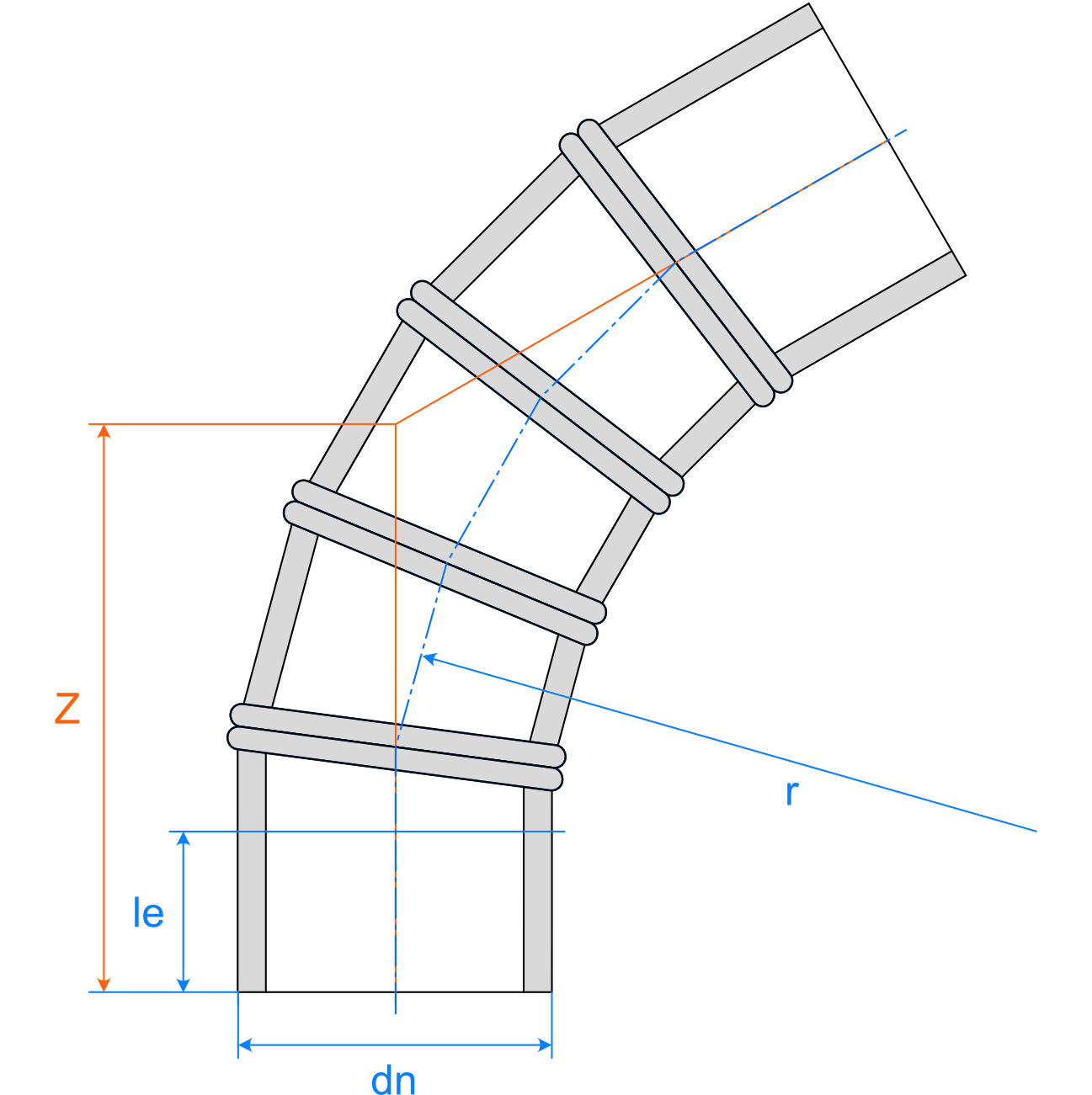

dn

le

r = 2.5 dn

Z - 60º Four mitre

Availability in Hong Kong

P5Q54.288.110

P5QG4.288.110

110

150

275

309

6-8 weeks

P5Q54.288.125

P5QG4.288.125

125

150

313

330

6-8 weeks

P5Q54.288.160

P5QG4.288.160

160

150

400

381

6-8 weeks

P5Q54.288.225

P5QG4.288.225

225

150

563

475

6-8 weeks

P5Q54.288.250

P5QG4.288.250

250

250

625

611

6-8 weeks

P5Q54.288.280

P5QG4.288.280

280

250

700

654

6-8 weeks

P5Q54.288.355

P5QG4.288.355

355

300

888

812

6-8 weeks

P5Q54.288.400

P5QG4.288.400

400

300

1000

877

6-8 weeks

P5Q54.288.450

P5QG4.288.450

450

300

1125

950

6-8 weeks

P5Q54.288.500

P5QG4.288.500

500

350

1250

1072

6-8 weeks

P5Q54.288.560

P5QG4.288.560

560

350

1400

1158

6-8 weeks

P5Q54.288.630

P5QG4.288.630

630

350

1575

1259

6-8 weeks

P5Q54.288.710

P5QG4.288.710

710

350

1775

1375

6-8 weeks

P5Q54.288.800

P5QG4.288.800

800

350

2000

1505

6-8 weeks

P5Q54.288.900

P5QG4.288.900

900

400

2250

1699

6-8 weeks

P5Q54.288.1000

P5QG4.288.1000

1000

400

2500

1843

6-8 weeks

P5Q54.288.1200

P5QG4.288.1200

1200

400

3000

2132

6-8 weeks

P5Q54.288.1400

P5QG4.288.1400

1400

550

3500

2571

6-8 weeks

P5Q54.288.1600

P5QG4.288.1600

1600

550

4000

2859

6-8 weeks

Note:

1. Larger sizes to dn2000 in PN ratings from PN4 to PN10 are available in M100E pipe, subject to pipe availability. 60º Bends > dn1600 cannot be containerised as a complete bend.

2. Bends with brown or green twin stripes can only be supplied when also supplying the matching pipe.

60º Segmented Spigot CCTV Bends / PN16 / SDR11 / Twin Stripe

As above, segmented bends fabricated from PN16 / SDR 11 CCTV twin stripe pipe.

PN16 SDR11 Twin Brown Sewer

PN16 SDR11 Twin Green Stormwater

dn

le

r = 2.5 dn

Z - 60º Four mitre

Availability in Hong Kong

P5Q56.288.110

P5QG6.288.110

110

150

275

309

6-8 weeks

P5Q56.288.125

P5QG6.288.125

125

150

313

330

6-8 weeks

P5Q56.288.160

P5QG6.288.160

160

150

400

381

6-8 weeks

P5Q56.288.225

P5QG6.288.225

225

150

563

475

6-8 weeks

P5Q56.288.250

P5QG6.288.250

250

250

625

611

6-8 weeks

P5Q56.288.280

P5QG6.288.280

280

250

700

654

6-8 weeks

P5Q56.288.355

P5QG6.288.355

355

300

888

812

6-8 weeks

P5Q56.288.400

P5QG6.288.400

400

300

1000

877

6-8 weeks

P5Q56.288.450

P5QG6.288.450

450

300

1125

950

6-8 weeks

P5Q56.288.500

P5QG6.288.500

500

350

1250

1072

6-8 weeks

P5Q56.288.560

P5QG6.288.560

560

350

1400

1158

6-8 weeks

P5Q56.288.630

P5QG6.288.630

630

350

1575

1259

6-8 weeks

P5Q56.288.710

P5QG6.288.710

710

350

1775

1375

6-8 weeks

P5Q56.288.800

P5QG6.288.800

800

350

2000

1505

6-8 weeks

P5Q56.288.900

P5QG6.288.900

900

400

2250

1699

6-8 weeks

P5Q56.288.1000

P5QG6.288.1000

1000

400

2500

1843

6-8 weeks

Note:

1. dn1000 is the largest size pipe and therefore is the largest bend size available in PN16/SDR11

2. Other PN ratings from PN4 to PN25 are available on request, subject to pipe availability.

3. Bends with brown or green twin stripes can only be supplied when also supplying the matching pipe.

Black 60º Fabricated Spigot Elbows / PN10-PN16 / SDR17-SDR11

Fabricated elbows are manufactured from black PE100+ compound. They are manufactured by factory butt welding two 30º fabricated elbows together.  They feature long spigots for electrofusion or butt fusion joining on site. Any fabricated elbow angle from 1º to 90º can be manufactured. Tables below shows dimensions for two 30º elbows factory butt welded together to give a 60º elbow with a radius of ~0.5xOD.

SDR17 PN10 SDR11 PN16 dn le r z - 60º Availability in Hong Kong
P5314.80.355 P5316.80.355 355 200 177 485 14-16 weeks
P5314.80.400 P5316.80.400 400 300 200 600 14-16 weeks
P5314.80.450 P5316.80.450 450 300 225 614 14-16 weeks
P5314.80.500 P5316.80.500 500 300 250 647 14-16 weeks
P5314.80.560 P5316.80.560 560 300 280 710 14-16 weeks
P5314.80.630 P5316.80.630 630 300 315 741 14-16 weeks
P5314.80.710 P5316.80.710 710 500 355 961 14-16 weeks
P5314.80.800 P5316.80.800 800 500 400 980 14-16 weeks
P5314.80.900 P5316.80.900 900 500 450 1137 14-16 weeks
P5314.80.1000 P5316.80.1000 1000 500 500 1174 14-16 weeks
P5314.80.1200 1200 SDR11 not available  1200 500 600 1149 14-16 weeks
P5314.80.1400 1400 SDR11 not available  1400 500 700 1324 14-16 weeks

Note: Custom fabricated elbows do not require pipe to manufacture. Individual elbows may be ordered in any angle.

Four Mitre Custom Segment Spigot Bends / PN4-25 / SDR41-7.4

As above, three mitre segmented bends are manufactured from pipes supplied for the contract, such as M90SE or M100E, in any angle from 31º to 45º with radii from 1.5 - 2.5xOD. Bend sizes are only limited by the pipes size and rating. See M100 pipe tables for the maximum pipe DN/OD at a given SDR rating. Contact us for specific requirements.

Note: 60º Bends > dn1600, where r=2.5xOD, cannot be containerised as a complete bend.
