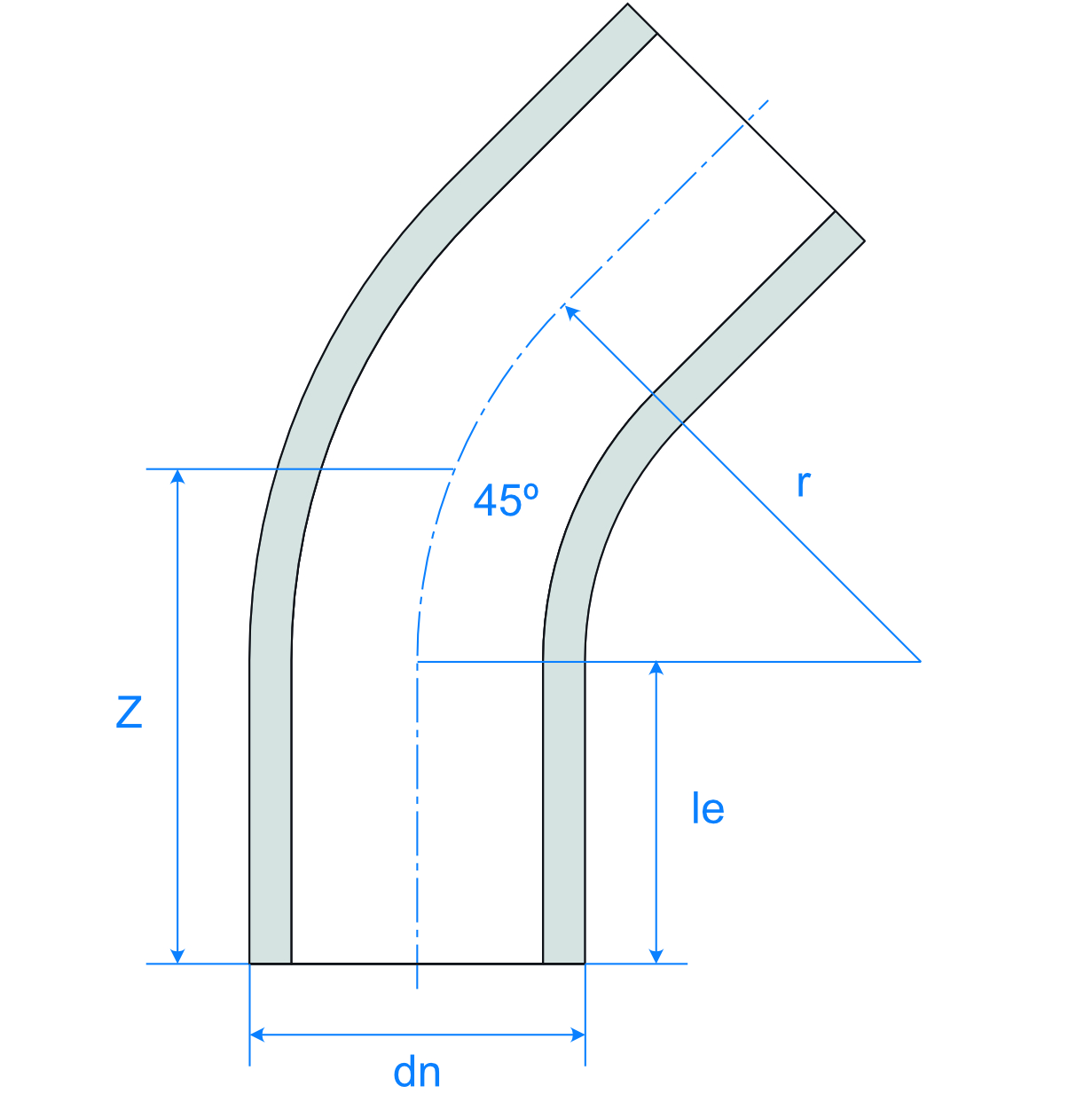

45º Swept Bends LS / PE100RC / M90ES / SDR17 / SN24
|Brown stripe||Green stripe||dn||le||r = 7 x dn||z - 45º||Availability in Hong Kong|

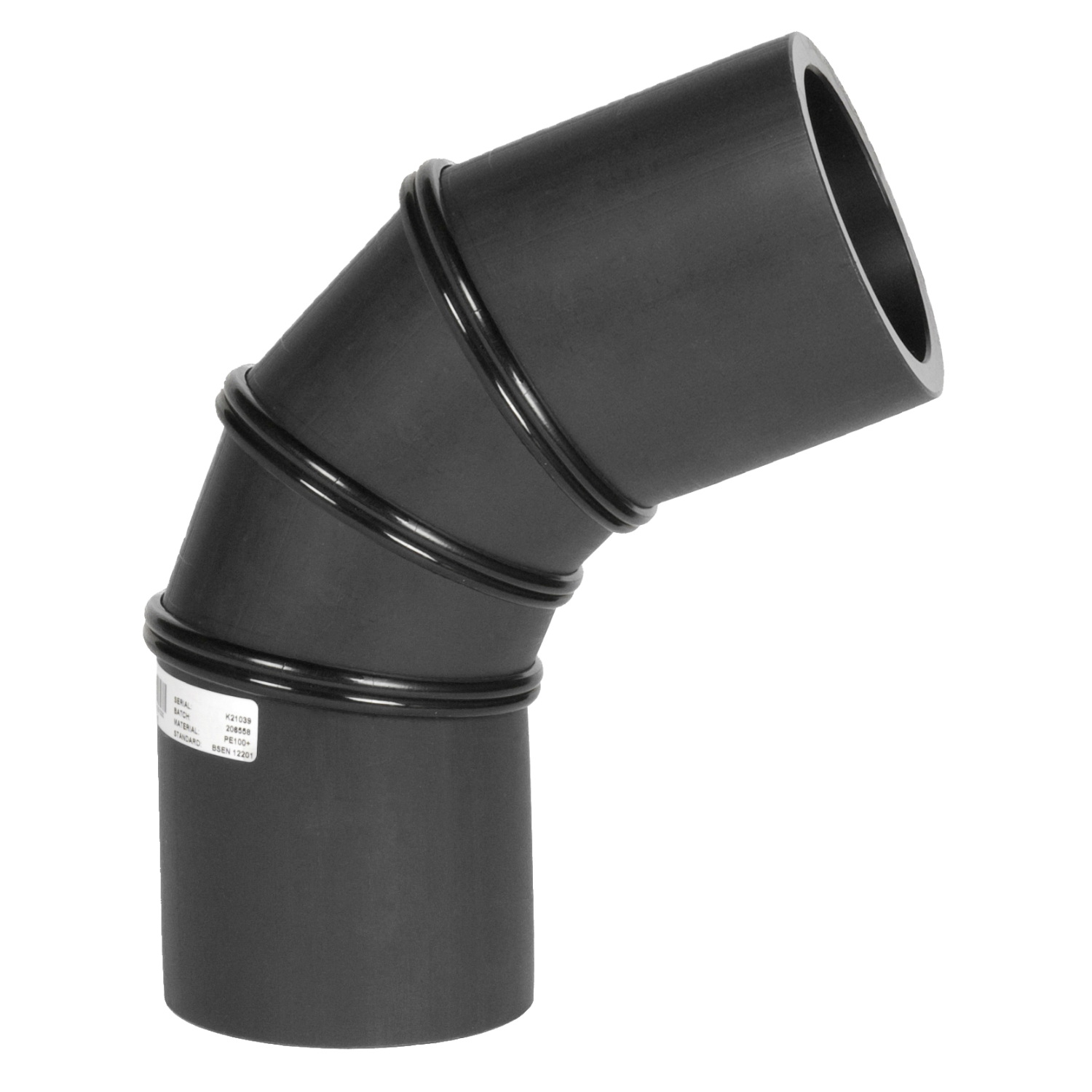

45º Segmented Spigot CCTV Bends / SN24 / SDR17 / Striped
Manufactured from Mill-Pro M90SE PE100 RC SDR17 CCTV pipe and fabricated according to BS EN 12201-3, clause B.3, using butt weld techniques according to BS ISO 21307. They feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability.
Segmented bends are manufactured from a pipe, with cut angles ≤ 7.5º and therefore are not subject to pressure de-ration factor required in BS EN 12201 Clause B.3. Generally, the internal weld beads are removed where possible and external weld beads are not removed unless ordered otherwise.

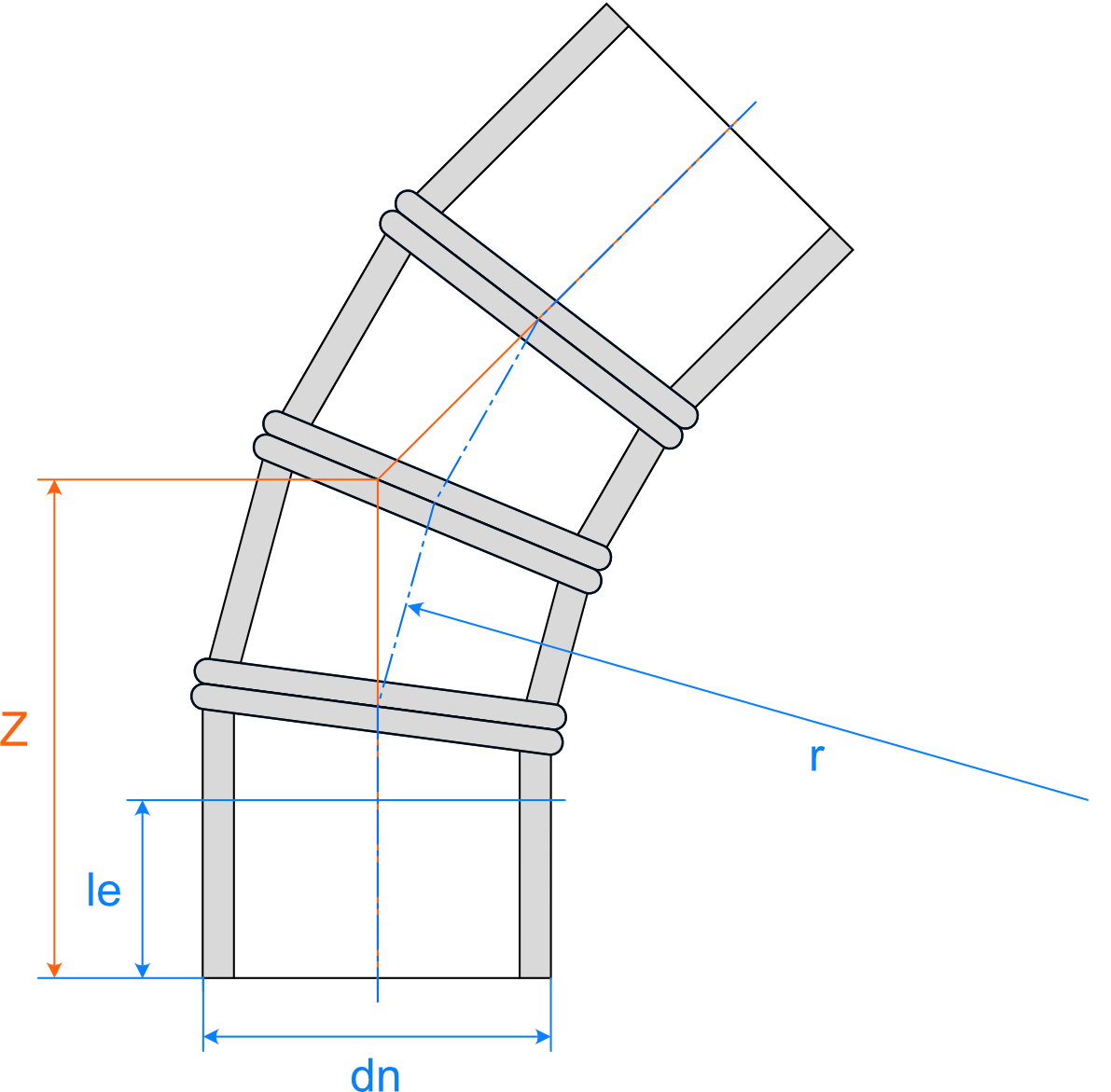

Any bend angle from 31º to 45º can be custom manufactured, standard angle for a three mitre bend is 45º with a radius of 2.5 x OD, as given in the table below.
NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.
|Larger sizes to dn2000 in PN ratings from PN4 to PN10 are available in M100E pipe, subject to pipe availability.|
|Bends with brown or green twin stripes can only be supplied when also supplying the matching pipe.|
|To transport large bore bends, these may need to be made in sections and joined on site.|
|Brown stripe||Green stripe||dn||le||r = 7.0 dn||z - 45º Three mitre||Availability in Hong Kong|
Three Mitre Custom Segment Spigot Bends / PN4-25 / SDR41-7.4
As above, three mitre segmented bends are manufactured from pipes supplied for the contract, such as M90SE or M100E, in any angle from 31º to 45º with radii from 1.5 - 2.5xOD. Bend sizes are only limited by the pipes size and rating. See M100 pipe tables for the maximum pipe DN/OD at a given SDR rating. Contact us for specific requirements.
